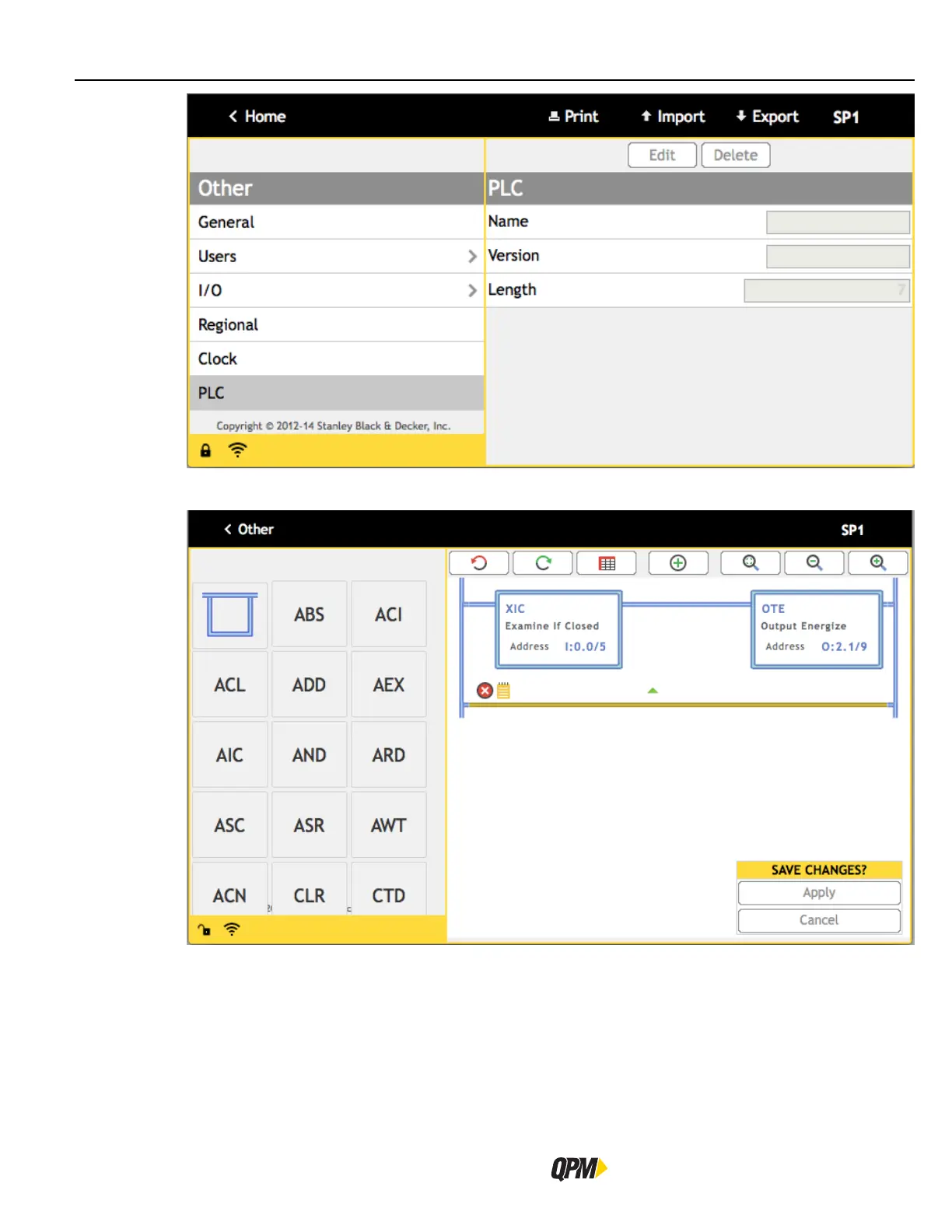

7.3.1 Edit Page Controls
The Add Branch button adds a branch to the rung or around an instruction.
The List of Instruction buttons add the instruction to the ladder logic. Use the mouse to click, hold and drag the
instruction to the desired spot on the ladder. When an instruction starts moving Add Points appear to show all
the available places to add the instruction on the ladder. Or click on a branch or other instruction in the ladder
and then click an instruction button in the list of instructions to add to the ladder.
Undo removes the last item or action and reverting to a previous state. Revert back to any previous state since
the last save by clicking Undo multiple times.
Delete
Zoom Out Zoom In
Add Rung
Comments
Move Rung
Instruction
Undo Redo
Selected Rung
Menu of Instructions
Add Branch
