SETUP Area
QB Expert Alpha Controller
46
Angle Target
The angle at which the controller shuts off the tool after a selected Snug Torque value.
Should be greater than Low Angle and lower than High Angle. Units are degrees of
rotation.
High Angle
The maximum peak angle for an acceptable fastening cycle (required for all steps). If the
actual angle exceeds this limit the fastening cycle will be flagged as NOK and the RED
LED on the front panel and tool illuminates. Must be greater than Low Angle. Units are
degrees of rotation.
Low Angle
The minimum peak angle for an acceptable fastening cycle. If the achieved angle does
not reach this limit the fastening cycle will be flagged as a NOK and the YELLOW LED on
the front panel and tool illuminates. Must be less than High Angle. Units are degrees of
rotation.
Angle Reset
Resets the achieved angle value to zero if torque drops below Snug Torque during the
step.

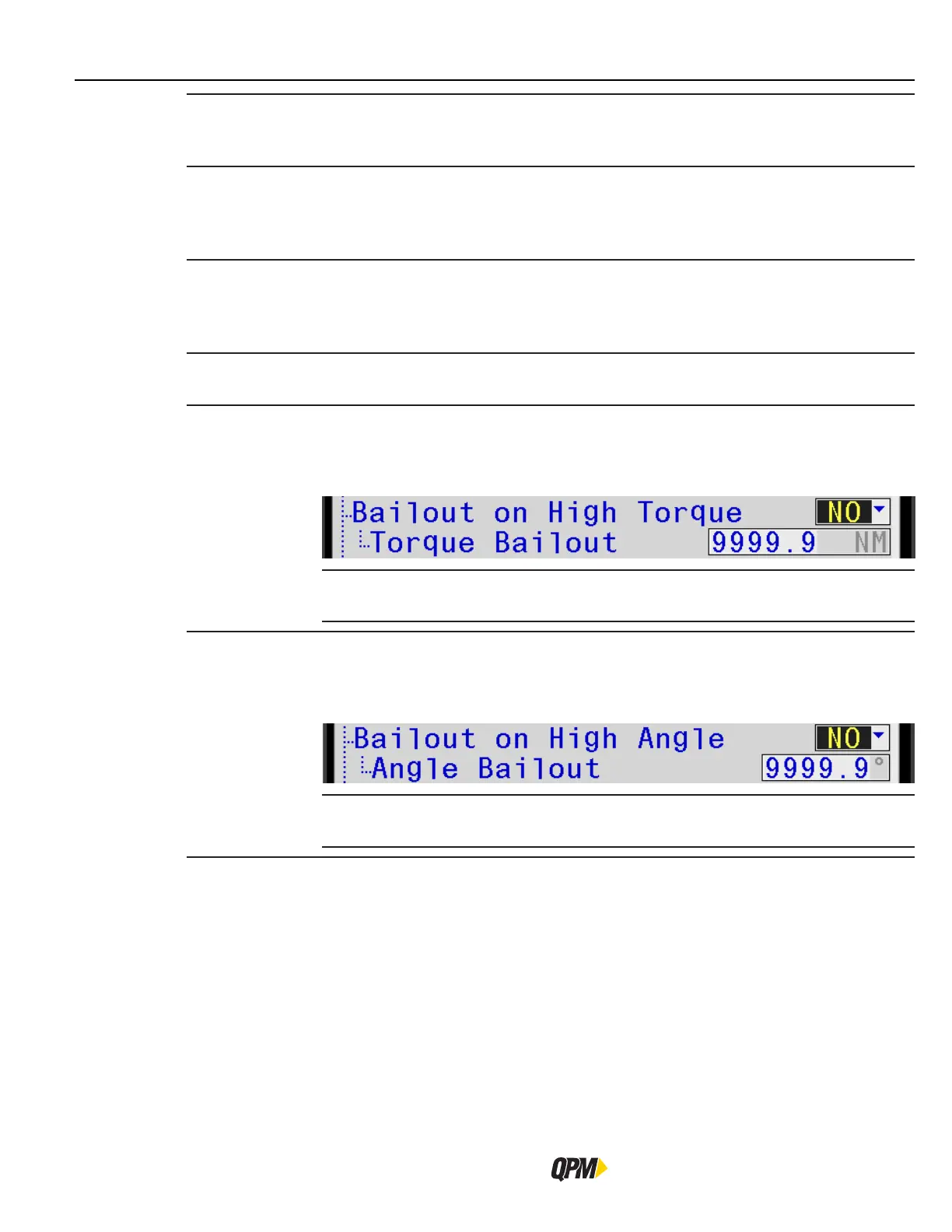

Bailout on High
Torque
Yes will shutoff the tool when the High Torque parameter is exceeded during any Angle
Control strategy. No will shutoff the tool when the Torque Bailout parameter is exceeded
during any Angle Control strategy. Requires the Torque Bailout value to be set. Should be
set equal to or above High Torque. Units are the selected torque units.
Torque Bailout The torque value at which the tool will shutoff during an Angle
Control strategy if the tool has not reached target angle.
Bailout on High
Angle
Yes will shutoff the tool when the High Angle parameter is exceeded during any Torque
Control strategy. No will cause the tool to stop when the Angle Bailout parameter is
exceeded during any Torque Control strategy. Requires the Angle Bailout value to be set.
Should be set equal to or above High Angle. Units are degrees of rotation.
Angle Bailout The angle value at which the tool will shutoff during an Torque
Control strategy if the tool has not reached target torque.
