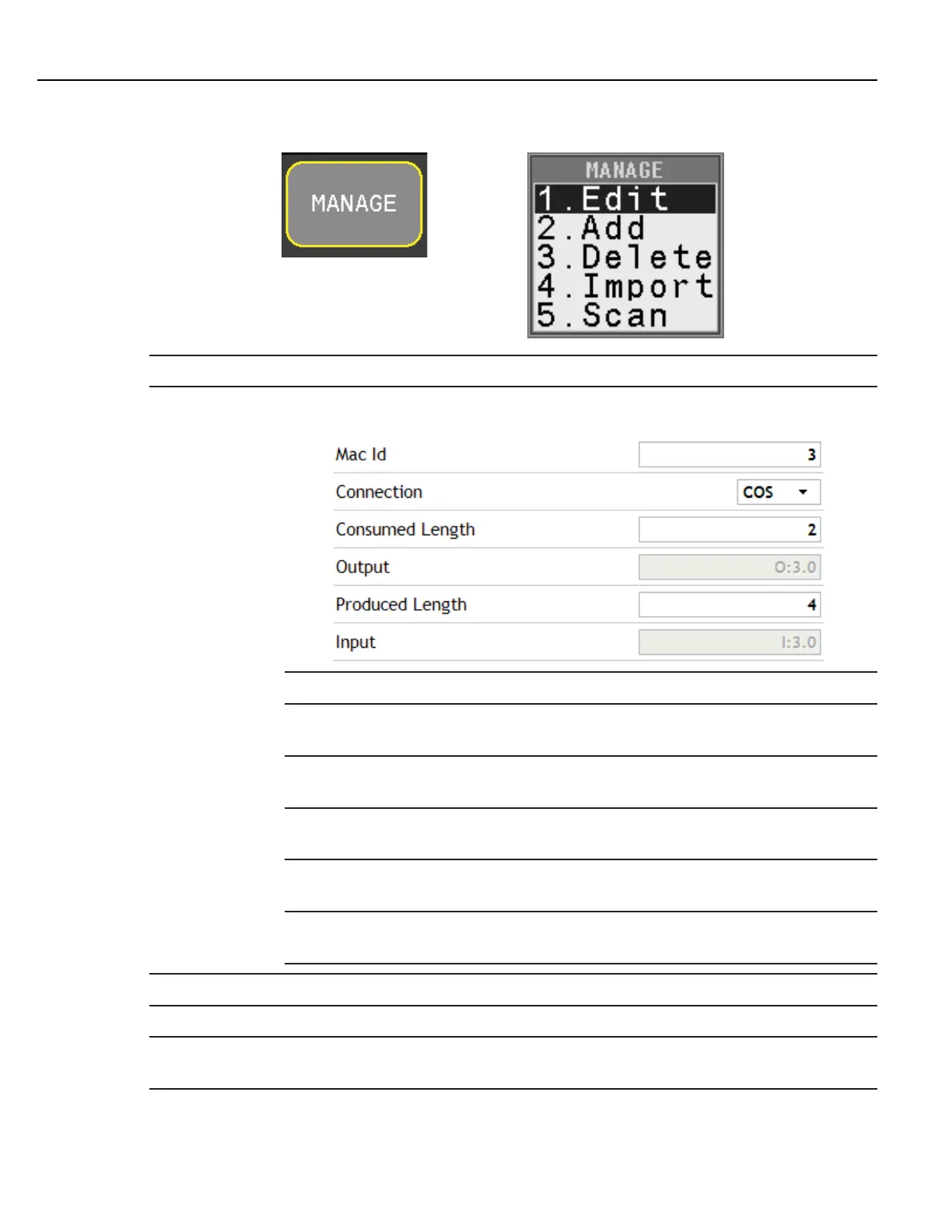

3.1.3.8.1 MANAGE Button
Press the MANAGE interactive menu button.
EDIT This edits the selected device that has already been added to the controller.
ADD
This adds a device for the Expert to control. Set the options for the devices added in the
Scanner dialog box.
Mac Id The Machine Id or Node number of the new device.
Connection
The type of connection to the device. The Expert DeviceNet Scanner
card supports Change of State, Polled, Cyclic and Bit Strobe.
Consumed
Length
The number of bytes consumed by the device.
Output
The output address of the device for embedded PLC logic. Controller
generated
Produced
Length
The number of bytes produced by the device.
Input
The input address of the device for embedded PLC logic. Controller
generated.
Delete This deletes the selected device from the controller’s DeviceNet network.
Import This imports a scanner.json file on the USB memory stick.
Scan
Scans the DeviceNet network and adds any devices it finds to the controller. After adding
the user must use EDIT to modify the options for the device.
Use the right arrow to move to the next tab or press EXIT to save the changes and return to the Run screen. See
