SETUP Area
QB Expert Alpha Controller
72

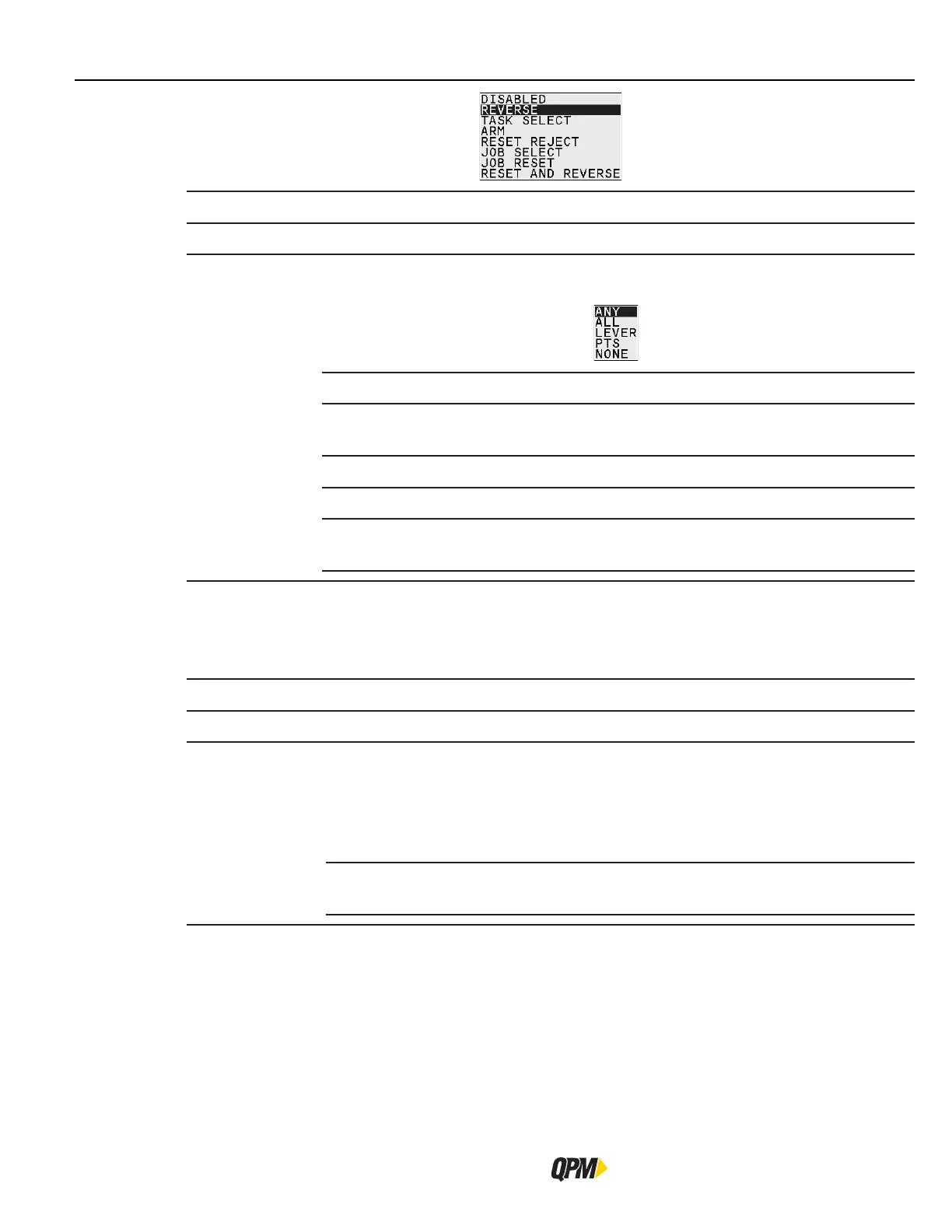

Tap Action Defines the operation when the MFB on the tool is tapped (pressed quickly).
Hold Action Defines the operation when the MFB on the tool is held for one second.
Start Mode
Defines which input starts the tool. In all cases, the 24V DC Start input is always available
to start the tool.
Any Either the tool trigger or tool push-to-start switch starts the tool.
All
Requires that both the tool trigger and the tool push-to-start switch
must be activated to start the tool.
Lever Only the trigger on the tool starts the tool.
PTS Only the push-to-start switch on the tool starts the tool.
None
Neither the tool trigger nor the tool push-to-start switch starts the
tool.
Use the right arrow to move to the next tab or press EXIT to save the changes and return to the Run screen. See
section “3.1.2.6 Exit” on page 52.
3.1.4.5 Lights Tab
Lights (1, 2) Defines whether the lights indicate a Job or Task.
Headlight Timer Sets the time the tool’s headlights remain on, in seconds, after the trigger is pressed.
Enable Tool Light
Timer
Yes enables the timer and the tool’s Red, Green and Yellow status lights will illuminate for
the period of time specified after a fastening cycle and then extinguish.
If No is selected the time is disabled and the tool’s Red, Green and Yellow status lights
will remain illuminated after a fastening cycle until the tool is started again. They will
only extinguish while the tool is running.
Tool Light
Timer
The time in seconds the Red, Green and Yellow status lights will
remain on after a fastening cycle.
Use the right arrow to move to the next tab or press EXIT to save the changes and return to the Run screen. See
section “3.1.2.6 Exit” on page 52.
3.1.4.6 Tones Tab
The alarm in the tool handle can emit different tones based on the status of the fastening cycle. Choose an Accept
Tone for an OK Fastening cycle and a Reject Tone for a NOK Fastening cycle.
