Interface connector
Ground terminal
‘Power cord

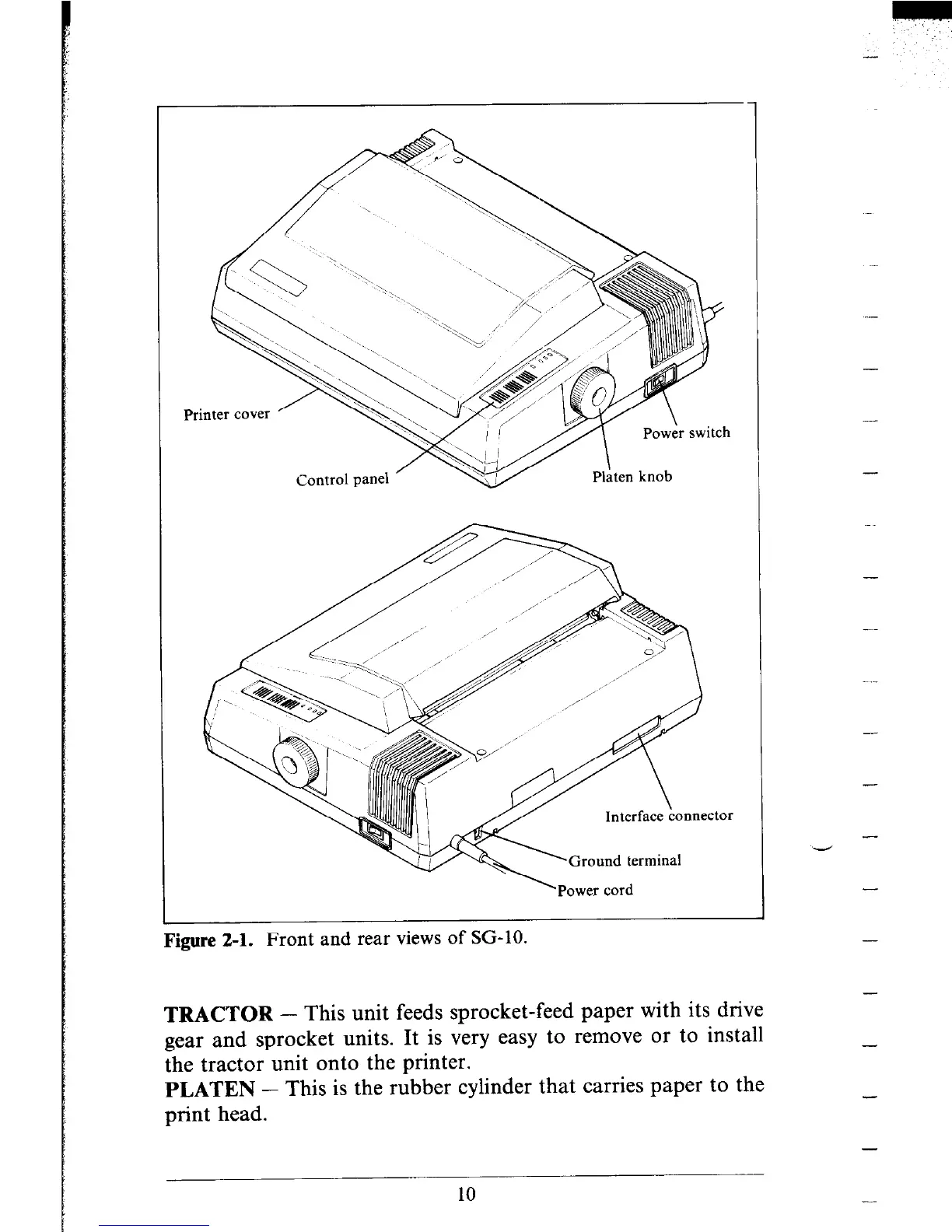

Figure 2-l. Front and rear views of SG-10.
-.
-
-
-
-
-
-
TRACTOR - This unit feeds sprocket-feed paper with its drive
gear and sprocket units. It is very easy to remove or to install
the tractor unit onto the printer.
PLATEN - This is the rubber cylinder that carries paper to the
print head.
-
-
10
