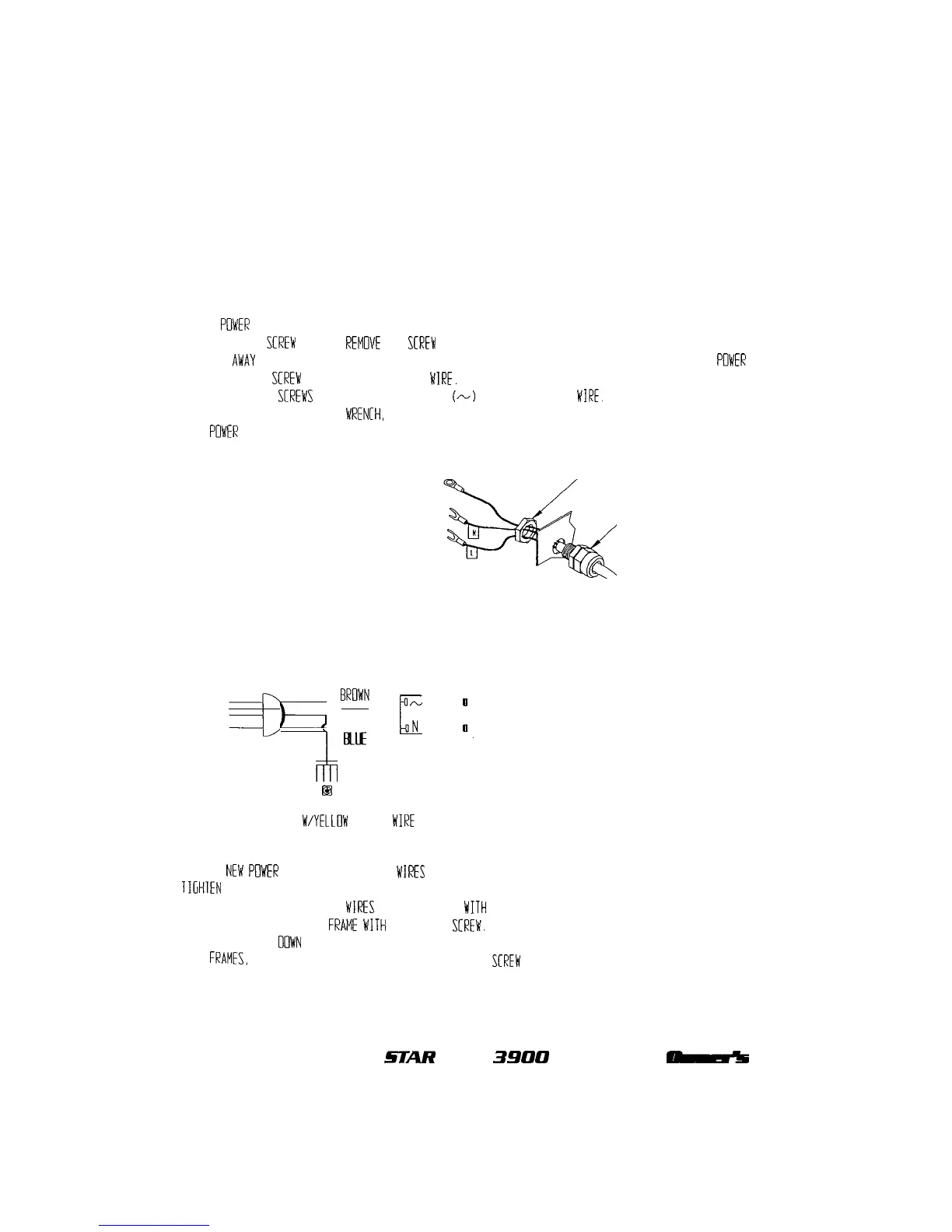

POWER CORD REPLACEMENT INSTRUCTIONS
I. TURN THE POWER OFF AND UNPLUG THE TREADMILL.
2. USING A PHJLL1PS SCREW DRIVER, REMOVE THE SCRE~ ON THE CENTER FRONT OF THE MOTOR SHROUD, SEPARATE THE VELCRO
BY PULLING AWAY ON THE SIDES OF THE SHROUD THEN SLIDE THE SHROUD UP THE FRONT RA1L TO ACCESS THE POWER CORD CONNECTION.
3 REMOVE THE GROUND SCREW AND DISCONNECT GROUND WIRE.
4. REMOVE THE BREAKER SCREWS AND DISCONNECT THE LINE (~) AND NEUTRAL (N) WIRE.
5. USING A 15/16 DR AN ADJUSTABLE WRENCH, LOOSEN THE STRAIN RELIEF NUT.
6. REMOVE POWER CORD.
STRAIN RELIEF NUT
STRAIN RELIEF
LOAD
:I
LINE
~;
~ ~~
!SJ
GROUND TO FRAME
GREEN W/YELLOW STRIPE WIRE
~ BROWN
b
7. INSTALL NEW POWER CORD BY SLIDING THE WIRES THROUGH THE MOUNTING PANEL HOLE.
S TIGHTEN THE STRAlN RELIEF NUT.
9. CONNECT THE LINE AND NEUTRAL WIRES TO THE BREAKER WITH THE BREAKER SCREWS.
10. CONNECT THE GROUND TO THE FRAME WITH THE GROUND SCREW.
I I. SLIDE THE SHROUD DOWN THE FRONT RAIL. PRESS THE SIDES OF THE MOTOR SHROUD ONTO THE SIDES OF THE
SIDE FRAMES, CAUSING THE VELCRO TO ATTACH, TIGHTEN THE SCREW IN THE CENTER FRONT OF THE MOTOR SHROUD,
!iTAR TRAC 3900 TREADMILL Owner~s Manual
