Steca coolcept3 - Z03 | 2016

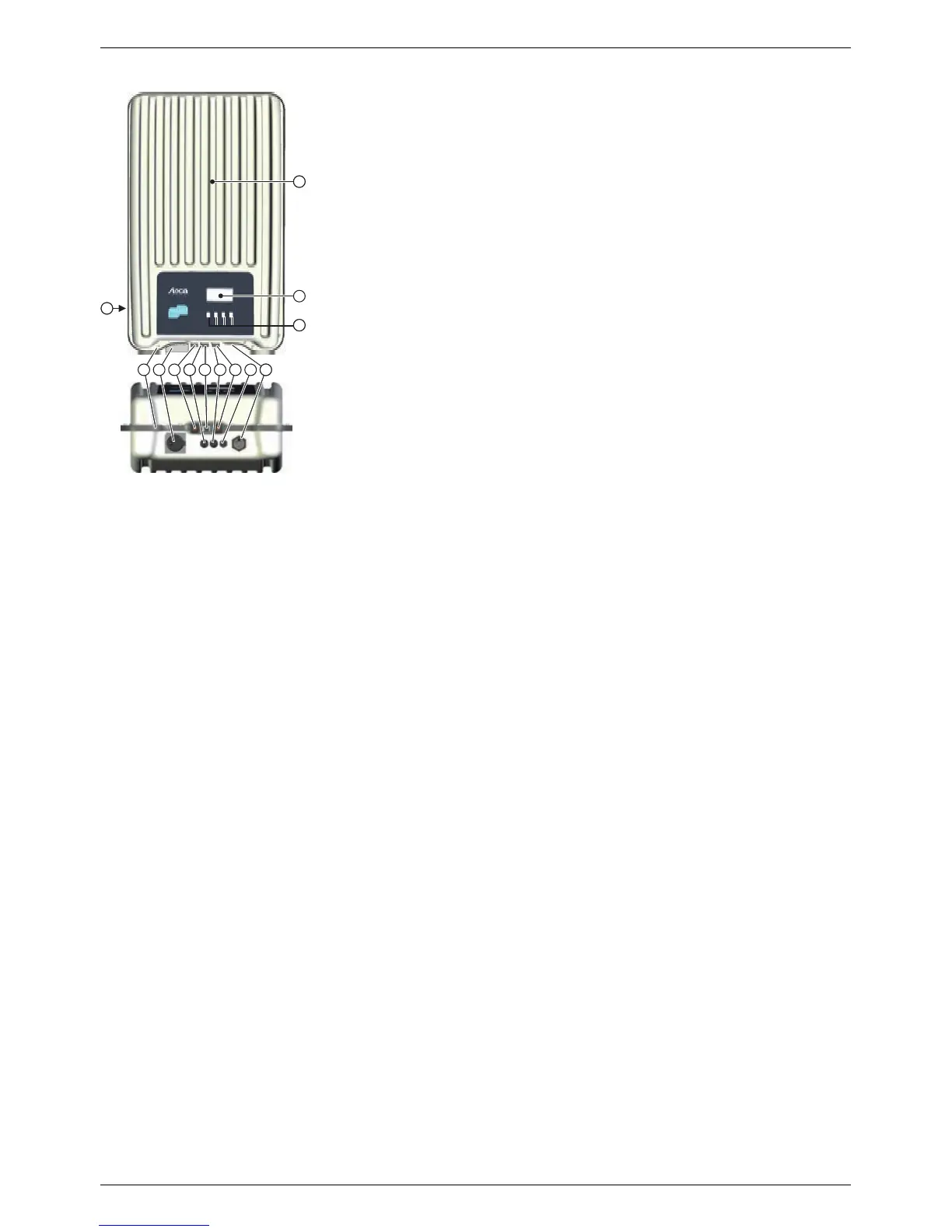

3.1.2
coolcept
3
-x
①
Hood
②
Display (monochrome, 128 x 64 pixels)
③
Rating plate, serial number, warnings
④
Operating buttons: ESC, r, s, SET (from left to right)
⑤
1x AC connection
⑥
Pressure equalization membrane
⑦
1x RJ45 socket (RS485 bus)
⑧
1x DC connection Minus (−) for PV generator (Phoenix Contact
SUNCLIX, safe-touch)
⑨
1x RJ45 socket (RS485 bus)
⑩
1x DC connection Plus (+) for PV generator (Phoenix Contact
SUNCLIX, safe to touch)
⑪
1x RJ45 socket (Ethernet)
⑫
DC load-break switch (disconnects plus and minus input simul-
taneously
, can be safeguarded with a padlock)
⑬
Bore for optional attachment of a grounding element or
mechanical fastening element (securing chain)
The housing components are described in detail below.
11
2
3
14
89 67
11
151
10
1213
EN
750.661 | Z03 | 2016-09-12 12
