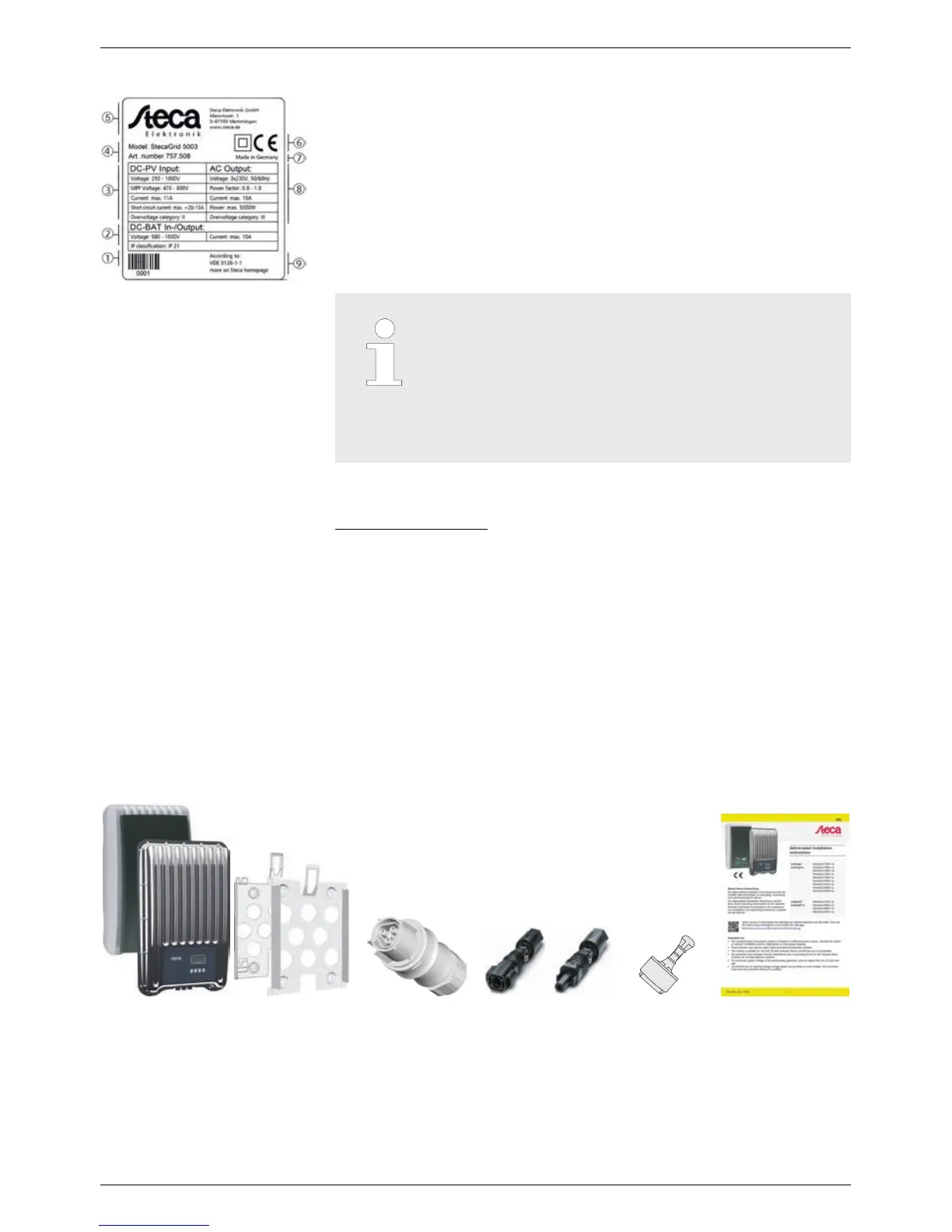

①
Bar code for internal use
②
Technical data of DC-Bat connection (for coolcept
3
devices only)
and protection class
③
Technical data - DC-PV input
④
Article number and product designation
⑤
Manufacturer and address
⑥
Cover the Protection class II and CE mark
⑦
Country of manufacture
⑧
Technical data of the AC output
⑨
Standard for grid monitoring
Notice
– For the serial number
, see
Ä
„Safety instruc-
tions on the device“ on page 6.
– For the position of the type plate, see
Ä
Chapter 3.1 „Housing“ on page 11 pos.
3.
The products described in this document comply with the applicable
European directives. Certificates for the products are provided at
www.stecasolar.com ⇒ PV GRID CONNECTED ⇒ Grid inverters
2.3
Scope of delivery
n Inverter ①, type
coolcept (plastic housing) or coolcept-x (stain-
less steel housing, IP65)
n Mounting plate ② for type coolcept or coolcept-x
n AC plug ③
n 1 pair SUNCLIX plug-in connectors ④
n 3 sealing caps (for RJ45 socket; only coolcept-x) ⑤
n Brief installation and operating instructions ⑥
①
②
③
④
⑤
⑥
2.4 Intended use
n The inverter must only be used in grid-coupled photovoltaic sys-
tems. The inverter is suitable for all PV generator with connec-
tions that do not need to be grounded.
n PV generator must be used that have an IEC 61730 class A
rating because the inverter does not have electrical isolation.
Rating plate
EU Declaration of Confor-
mity
