Steca coolcept3 - Mounting the inverter

4.2 Mounting the inverter
u Screw the mounting plate to the mounting surface using 4
screws:
n Use screws (and dowels etc.) appropriate for the weight of the
inverter.
n The mounting plate must lie flat on the mounting surface and
the metal strips at the sides must point forwards (Fig. left).
n Install the mounting plate vertically with the retaining plate ①
at the top (example in Fig. left).
NOTICE!
With coolcept
3
-x, you can secure the inverter
with a padlock against theft or unauthorized
removal. The padlock is inserted in a shackle
which will lock into the retaining plate during
mounting. Now, it is no longer possible to unlock
the retaining plate.
NOTICE!
F
or more information on determining the
optimum position for the mounting plate, refer
to the Brief Installation Instructions comprised in
the delivery, and to the Appendix under
Mounting.

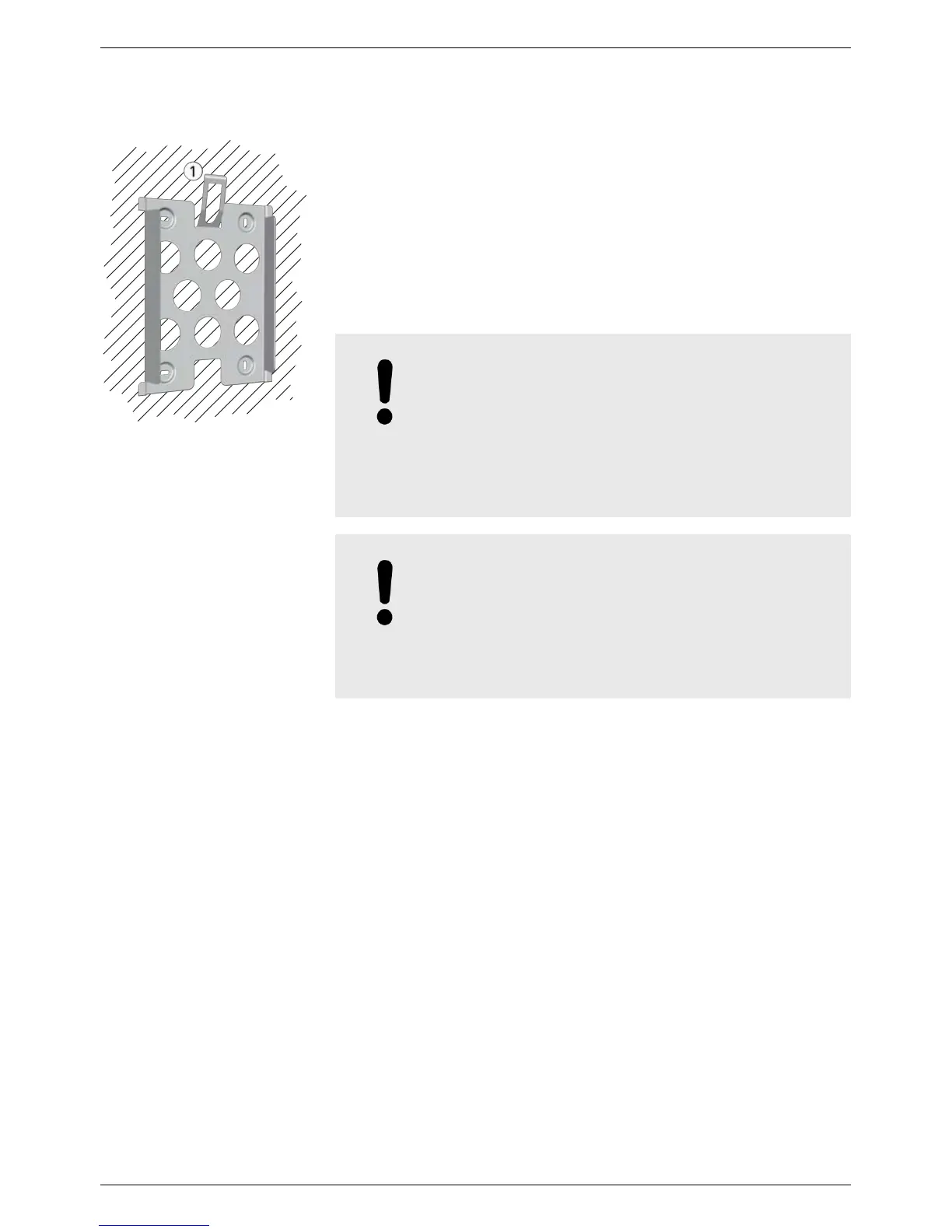

Fastening the mounting
