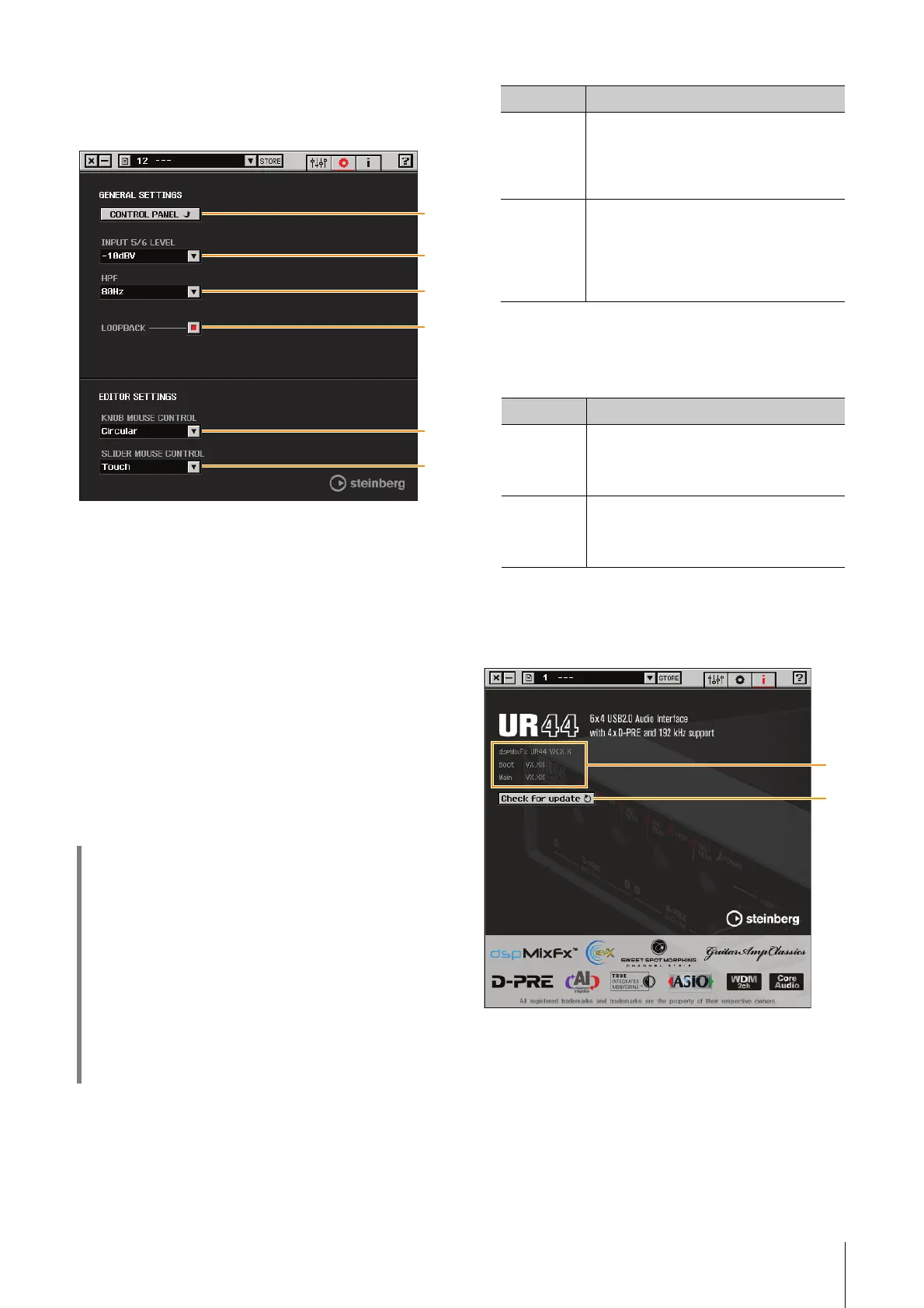

Setup Window
This windows is for configuring the common settings
of the device.
1 CONTROL PANEL
For Windows, this opens the “Control Panel of the
Audio Driver” (page 9). For Mac, this opens Audio
MIDI Setup.
2 INPUT 5/6 LEVEL
Selects the input signal level of [LINE INPUT 5/6].
Options: +4 dBu, -10 dBV
3 HPF
Selects the cutoff frequency of the high pass filter (not
available on [LINE INPUT 5/6] ).
Options: 120 Hz, 100 Hz, 80 Hz, 60 Hz, 40 Hz
4 LOOPBACK
Turns the Loopback function on (lit) and off (dark).
5 KNOB MOUSE CONTROL
Selects the method of operating the knobs on
dspMixFx UR44.
6 SLIDER MOUSE CONTROL
Selects the method of operating the sliders and faders
on dspMixFx UR44.
Information Window
This window indicates information about dspMixFx
UR44 and the device.
1 Version Information
Indicates the version of the firmware and software.
2 Check for update
Checks whether or not you have the latest software
and firmware version, via the Internet. If a new version
is found, follow the on-screen instructions for
updating.
HINT
What is Loopback?
Loopback is a function that mixes the input audio
signals (LINE, Guitar, MIC etc) and the audio signals
playing back in the software into two channels in the
UR44, and back to the computer for live broadcasting
via the Internet.
When the Loopback function is set to ON, the audio
signals output from MIX 1 in the DSP mixer (dspMix FX)
in the device are returned to the computer for actual
broadcasting. Refer to the section “Signal Flow”
(page 33). When using multi-track recording in audio
recording software, set the Loopback function to OFF.
1
2
3
4
5
6
Options Description
Circular Drag in a circular motion to increase and
decrease the parameter. Drag in a dial
clockwise to increase, and counterclockwise
to decrease. If you click any point on the
knob, the parameter will jump there instantly.
Linear Drag in a linear motion to increase and
decrease the parameter. Drag upward or
rightward to increase, and downward or
leftward to decrease. Even if you click any
point on the knob, the parameter will not
jump there.
Options Description
Jump Click any point on the slider and fader to
increase and decrease the parameter. If you
click any point on the slider and fader, the
parameter will jump there instantly.
Touch Drag the handle of the slider and fader to
increase and decrease the parameter. Even
if you click any point on the slider and fader,
the parameter will not jump there.
1
2
