Steinmayer DP 361 - Assembly of the Pedal Bar and Side Panels; Attach the Back

2

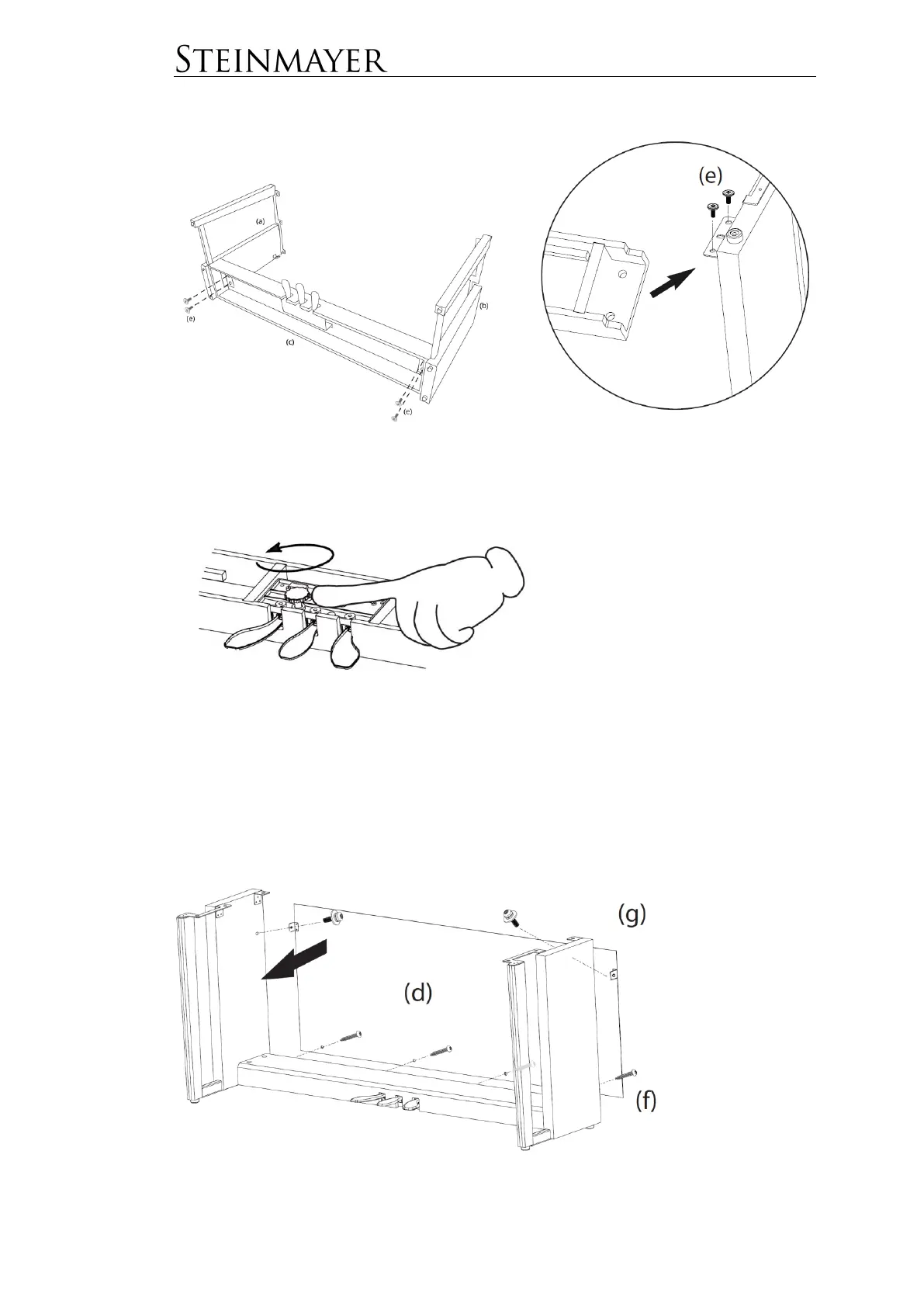

Assembly of the pedal bar and side panels
Attach the pedal bar (c) between the two side
panels (a, b) using the screws (e)
Unscrew the spacer screw under the pedal unit until it makes contact with the
ground and the pedal unit can be supported against the pedal pressure towards the
ground.
Attach the Back
Attach the Back to the base from the rear and attach it to the side panels using the
screws (g).
Make sure the base is properly aligned and secure the Back to the pedal bar using
the screws (f).
