stellar labs CDT Plus 7621 - Radio Remote Control Functions

Page 6 | Stellar
®
Heavy-Duty Telescopic Crane Owner’s Manual
A
A
B
B
C
C
D
D
E
E
F
F
G
G
HH
I
I
J
J
K
K
L
L

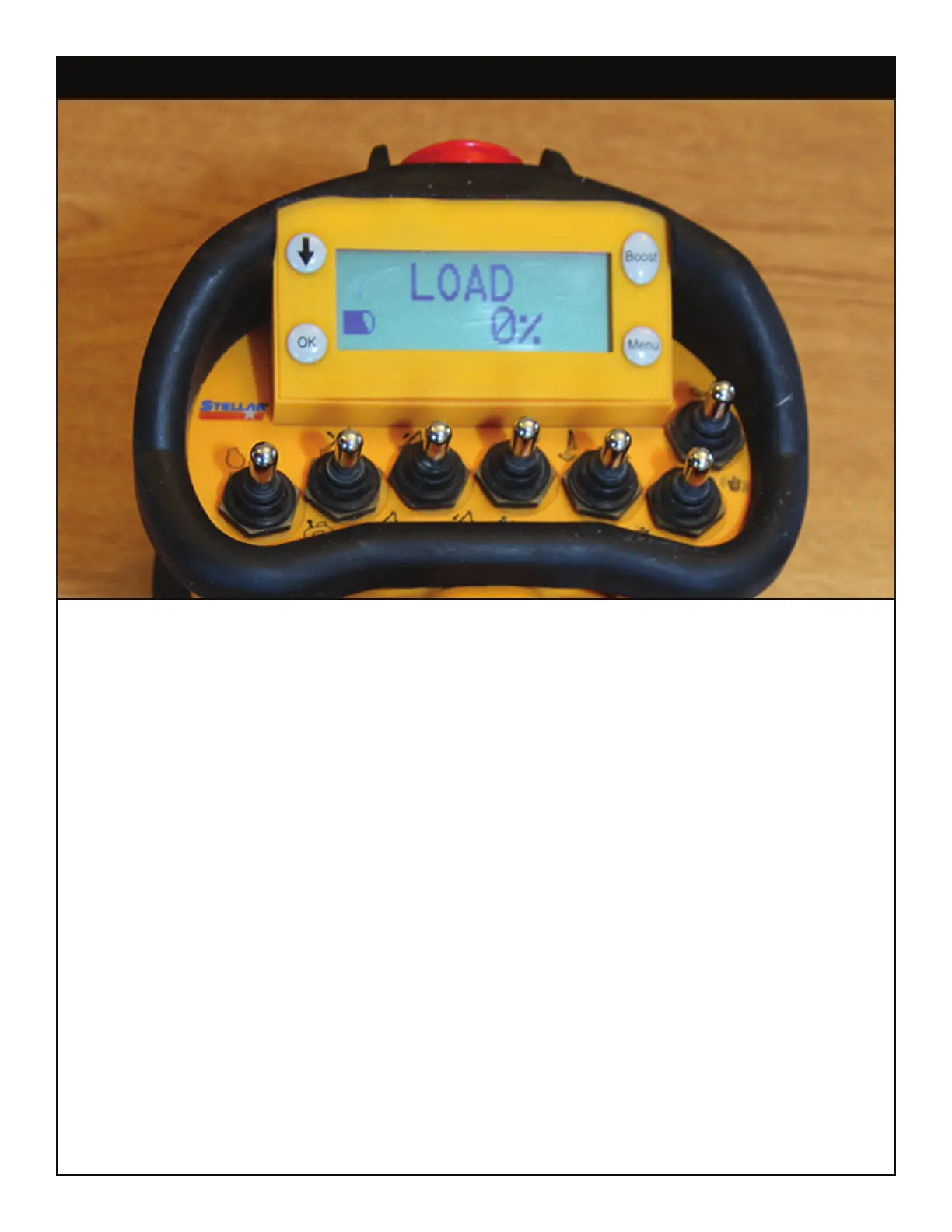

Radio Remote Control Functions
A. Optional Speed Control/Compressor Start/Stop Toggle: Push up to start or stop the optional speed
control. Push down to start or stop the compressor.
B. Boom Up/Down Toggle: Push up to raise the boom. Push down to lower the boom.
C. Extension In/Out Toggle: Push up to extend the extension. Push down to retract the extension.
D. Winch Up/Down Toggle: Push up to raise the winch. Push down to lower the winch.
E. Rotate Clockwise/Counterclockwise: Push up to rotate the boom clockwise. Push down to rotat the
boom counterclockwise.
F. Engine Start/Stop Toggle: Push to start or stop the engine.
G. Optional Function: An optional toggle for custom functions.
H. E-Stop Button: Push to immediately temporarily stop all crane functionality. Activate any function to
resume standard operation.
I. Scroll Button: Hold for one second to page through the different readouts in Operation Mode. Scrolls
through different options in Menu Mode.
J. OK Button: In Menu Mode, push this button to toggle the different option settings.
K. Boost/Re-Link Button: Push and hold for 2 seconds to engage boost mode (See the following page
for details on ‘Boost Mode’). Also, if the transmitter and receiver become disconnected from one
another, push this button to re-link the two devices.
L. Menu Button: Push to enter Menu Mode.
