Heavy-Duty Telescopic Crane Owner’s Manual | Page 9

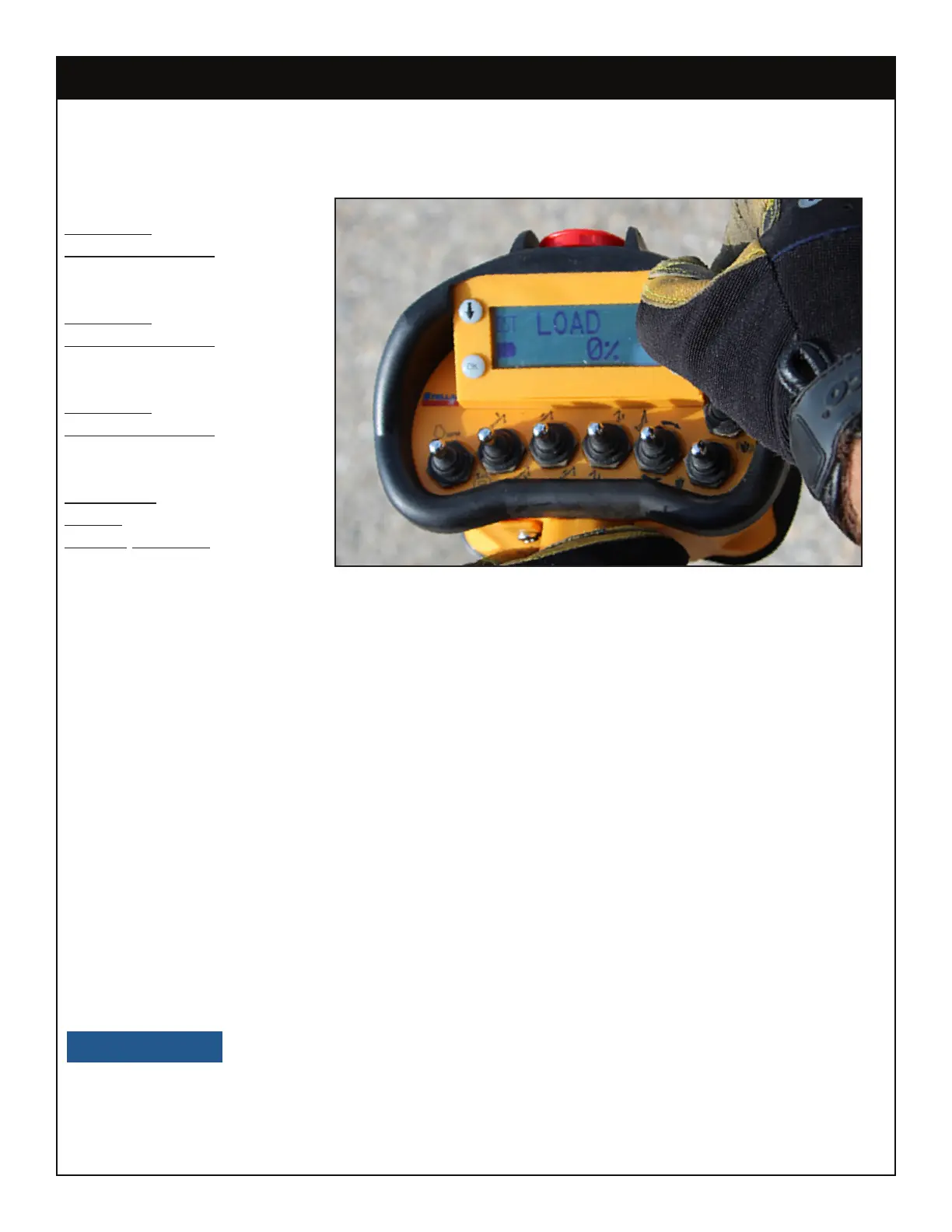

CDT Remote Feedback
If the crane starts to approach full capacity or an overload situation, the Stellar CDTplus
sensory feedback system will respond:
0-79% Capacity
Vibration: None
System Function: Normal
80-89% Capacity
Vibration: Short Pulsing
System Function: Normal
90-99% Capacity
Vibration: Long Pulsing
System Function: Normal
100% Capacity
Vibration: Long Pulsing
Visual: Screen Flashes
System Function: Overload
Shutdown.
When the crane reaches 100% capacity, an overload shutdown will be initiated. The
operator will need to set the load down and reposition the truck or activate the Stellar
CDTplus Boost Mode.
Activating Boost Mode
Boost Mode allows the crane to operate at 118% of its rated capacity for 30 seconds. This
will give the operator adequate time to move the crane out of the overload condition
without having to set the load down and reposition the truck.
Follow the steps below to activate boost mode:
1. Press and hold the Boost Button for 2 seconds. You will know that boost mode is
activated by the “Boost” indicator in the upper left of the LCD screen.
2. The crane will go from the ‘standard mode’ to ‘boost mode’ for 30 seconds.
3. During this minute, the capacity of the crane is increased to 118% of standard capacity.
Note: Boost Mode can be reset multiple times after a 15 second delay.
If the 118% capacity boost is not enough to temporarily suspend the
overload shutdown, the operator will need to set the load down and reposition the truck.
NOTICE
Radio Remote Feedback and Boost Mode
