stellar labs EC3200 - EC3200 Mounting Details; Flatbed Body Reinforcement

Installation 29
PN 44024
ÿ

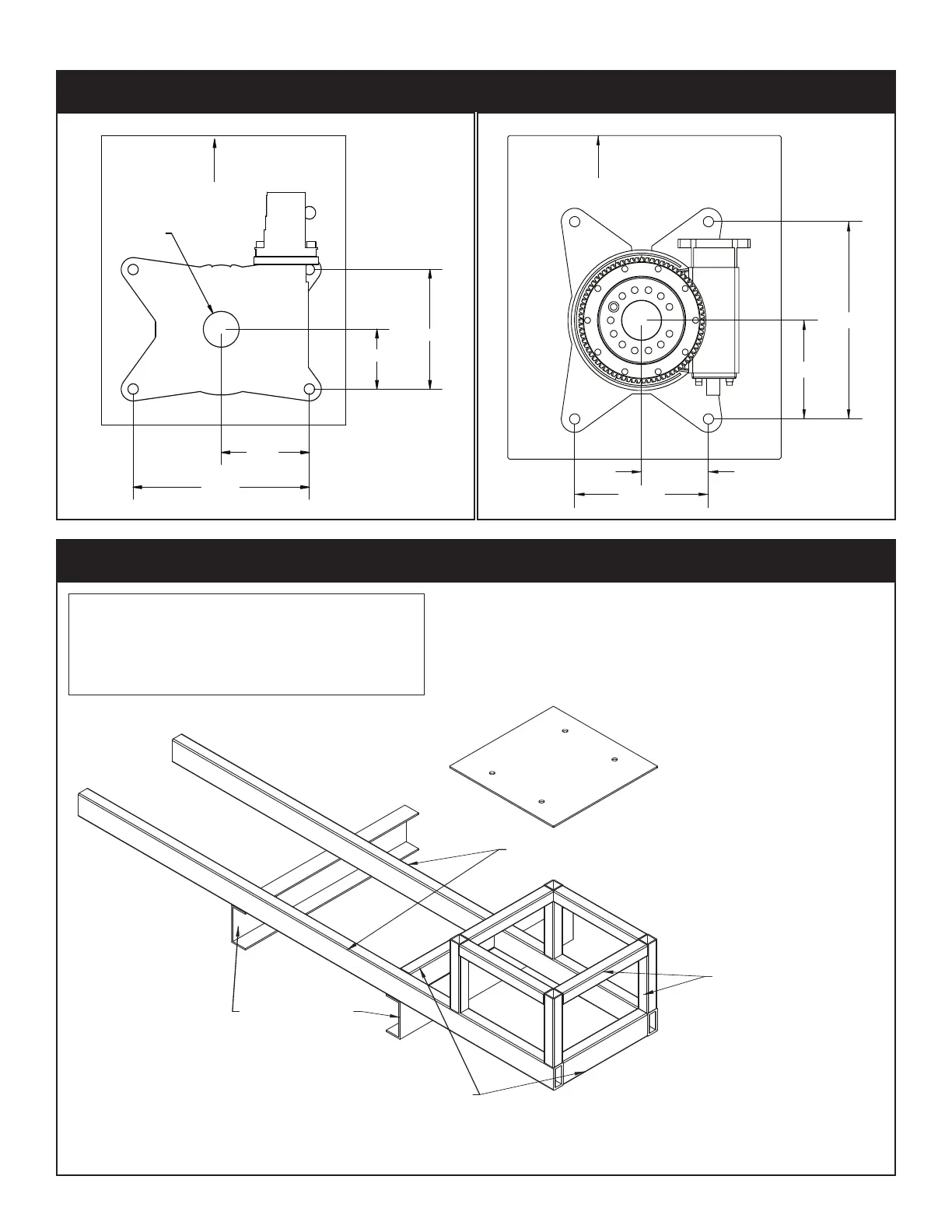

Hole Mounting Detail
3
.00
FRONT
5
.00
7.38
10.00
14.75
EC3200 Mounting Detail
TUBE 4X2X0.38
TRUCK FRAME
TUBE 4X2X0.38
3/8 PLATE
TUBE 2X2X0.38(TYP 4)
Flatbed Body Reinforcement
FRONT
7.38
14.75
5.00
10.00
Standard
Narrow
Base
If it has been determined that the destination
body won’t support the crane with a fully
rated load, the body must be reinforced.
Use 1/4” fillet welds and an ASWS qualified
welder to proceed as shown in this drawing:
Note: Tubing must be
at least 4” x 2” x 0.38”
(Except where noted)
