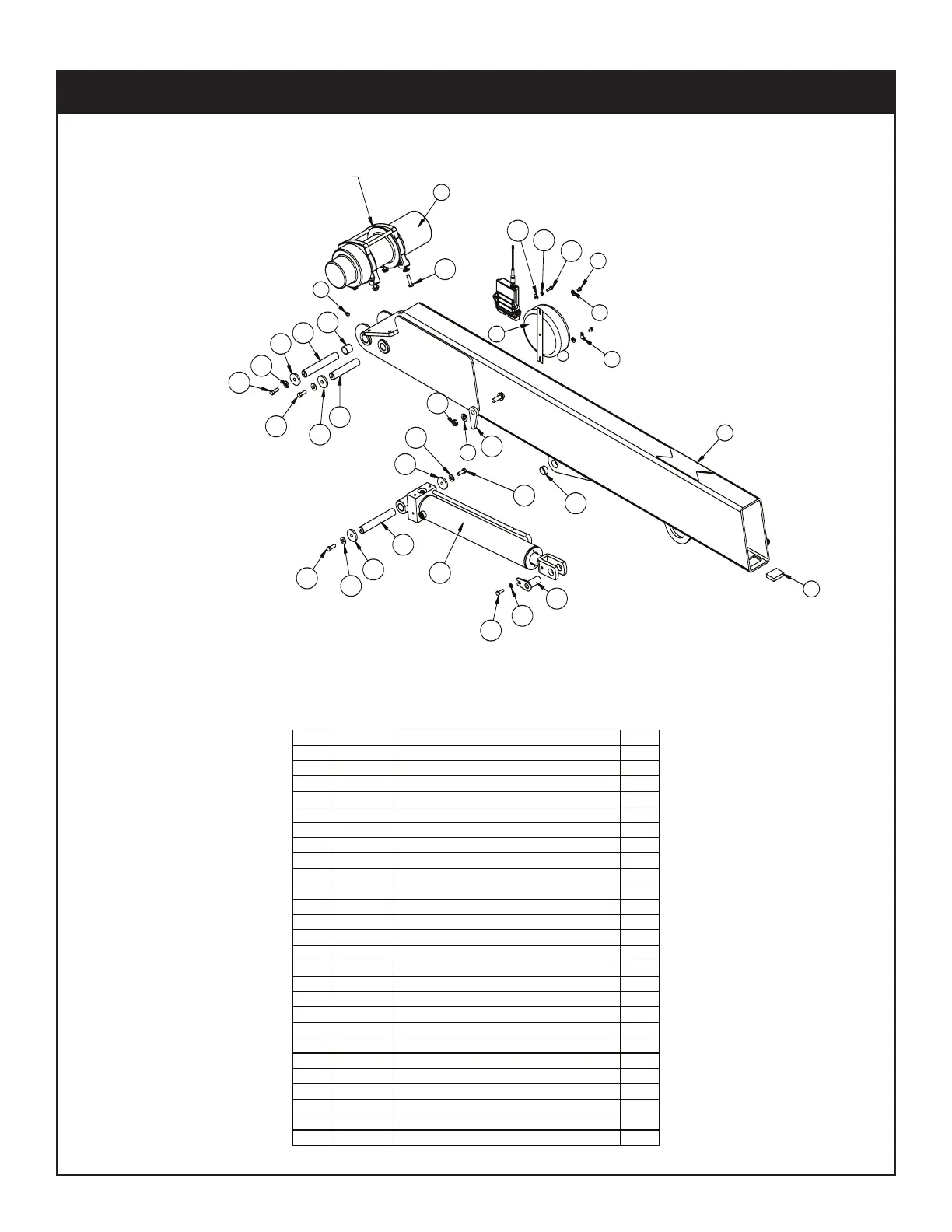

stellar labs EC3200 - Main Boom Assembly (PN 42512)

40 EC3200 Owner’s Manual - PN 44024
1
8
14
20
21
22
13
15
16
17
18
16
17
18
10
9
11
19
16
18
18
17
16
15
12
2
23
6
4
5
3
M
OUNTING HARDWARE WILL
BE PART OF THE WINCH PACKAGE.
USE ALL HARDWARE, EXCEPT BOLTS.
7
2
5
26
27
ITEM PART DESCRIPTION QTY.
142303 INNER BOOM EC3200 1
241641 WINCH DC2000 WARN 63899 1
3 11544 CORD REEL 6620 1
40340 WASHER 0.25 FLAT 2
5C5606 CLAMP 0.25 BLK VINYL 1
643845 CAP SCR 0.25-20X0.38 HHGR5 2
7c1592 ZERK 1/8 NPT STRAIGHT 1
842508 WEAR PAD 0.50X1.50X2.00 1
9D0790 WASHER 0.50 FLAT GR8 4
10 13815 PLATE ANGLE INDICATOR 2
11 C6106 NUT 0.50-13 HHGR5 NYLOC 2
12 0069 BUSHING QSI-1618-16 2
13 20362 BUSHING IGUS GFI-1618-08 1
14 42503 CYLINDER 3.00X13.00 1
15 42515 PIN 1.00X6.38 D&T 2
16 9320 PIN CAP 0.44X1.75X0.25 SS 6
17 C6353 WASHER 0.38 FLAT GR8 6
18 13573CAP SCR 0.38-16X1.00 HHGR8 6
19 42516 PIN 1.00X5.13 D&T 1
20 42517 PIN TEAR DROP 1.00X2.19 1
21 5591 WASHER 0.31 SAE FLAT YELLOW GR8 1
22 21170 CAP SCR 0.31-18X1.00 HHGR8 1
23 0345 CAP SCR 0.38-16X1.50 HHGR5 4
25 D0917 WASHER 0.25 FLAT SS 2
26 0479 CAP SCR 0.25-20X0.75 HHGR5 2
27 0521 WASHER 0.25 LOCK 2
PN 42512
Main Boom Assembly - PN 42512
