Manual Operation
If the remote control malfunctions, follow
these steps to operate the crane manually:

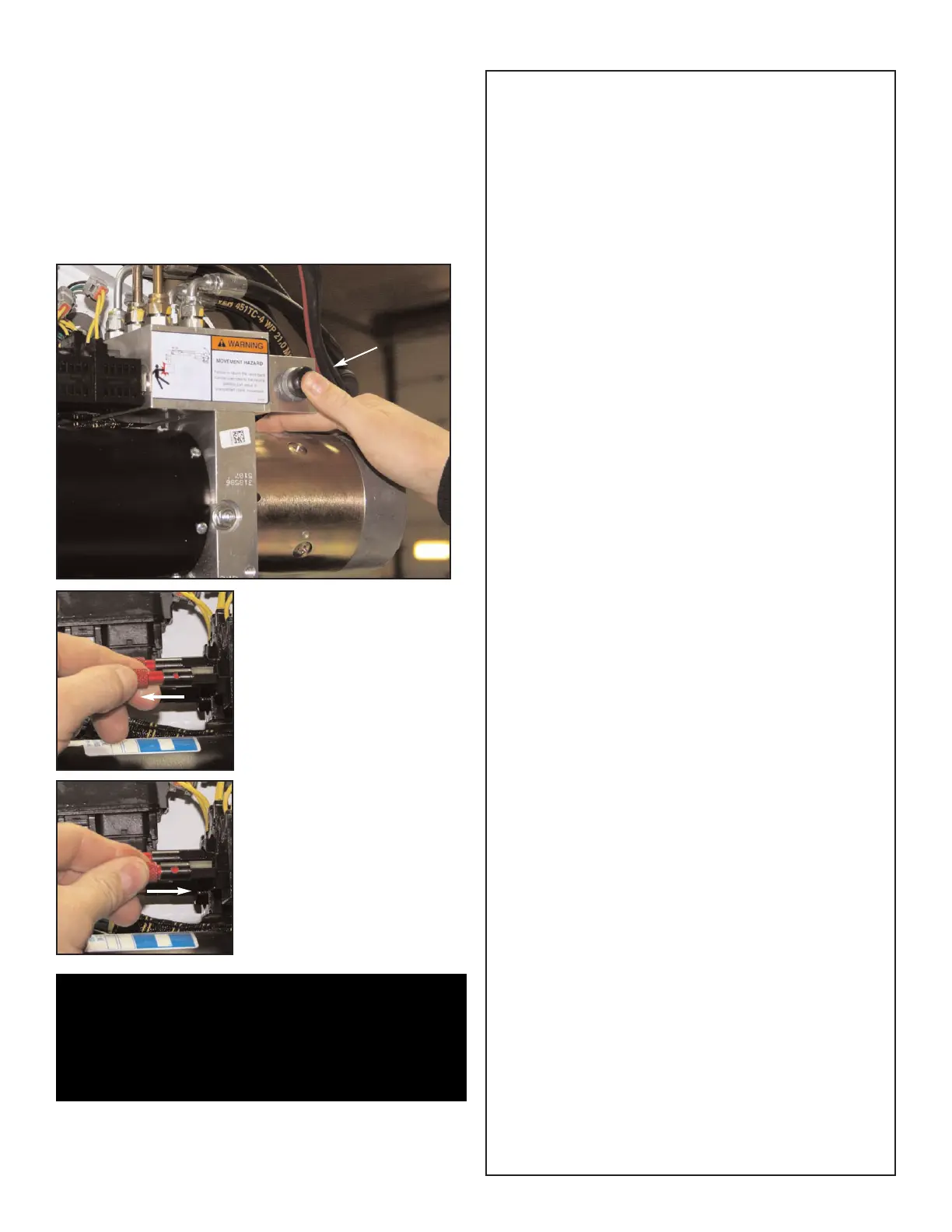

1. Operate Solenoids. Press and hold the
manual override switch and then push or
pull to operate the desired function, as
shown below
2. Have unit serviced immediately to restore
remote control functionality.
Operation 5
PN 44024
Manual Override Pull
Function
While pushing down the
manual override switch
(shown above), the knurled
sleeve is pulled all the way
out to manually override the
pull solenoid function.
Manual Override Push
Function
While pushing down the
manual override switch
(shown above), the knurled
sleeve should be pushed all
the way in to override the
push solenoid function.
Crane Precautions
1. Movement of the control levers should be
slow and smooth to meter oil flow for safe
operation. Avoid jerky and sudden
movements.
2. The crane controls should be clearly
marked with decals. If these are missing or
illegible,replace immediately. (See Chapter
5: Decals)
3. Lift load slightly off the ground to check the
safety of the cargo. Do not use stability to
determine the safety. Consult the capacity
charts and strictly adhere to them.
4. Be constantly aware of the boom position
when operating the controls.
5. The boom tip should be centered directly
over the load before making the lift to
avoid swinging.
6. Do not drag loads with the crane.
7. Do not attempt to lift fixed loads.
8. Do not load boom in a sideways direction.
9. Know the weight of the rigging and load to
avoid overloading the crane.
10. Do not extend or rotate a load over
anyone.
11. Wear protective gear such as hard hat,
safety glasses, steel-toed boots, and
gloves.
Hook Precautions
1. Hooks are designed and manufactur
ed to
lift specific loads. The specified rated load
of a hook applies to loads held uniformly in
direct tension and does not take into
account shock loads, hook tip loading, side
loading, bending, torsional, or related loads.
2. Do not attempt to lift a load that is larger
than the load rating of the hook.
3. Never use a hook’s yield point as an
indicator of its capacity.
4. Do not use a hook to lift personnel.
5. Know the rated load of the hook in use.
6. Never weld attachments to a finished hook
in field applications. This will alter and
destroy the design properties of the hook
material.
7. Keep fingers, hands, body, and loose
clothing from between the hook and the
load.
8. Avoid shock loading.
9. Inspect the hook regularly for excessive
wear and maintain it in safe operating
condition.
Push
Pull
Manual Override
Switch: Push and hold
to run manually.
WARNING
Failure to return the valve bank manual
overrides to the neutral position can
result in unexpected crane movement.
