EC4000-20 Telescopic Crane Owner’s Manual | Page 7

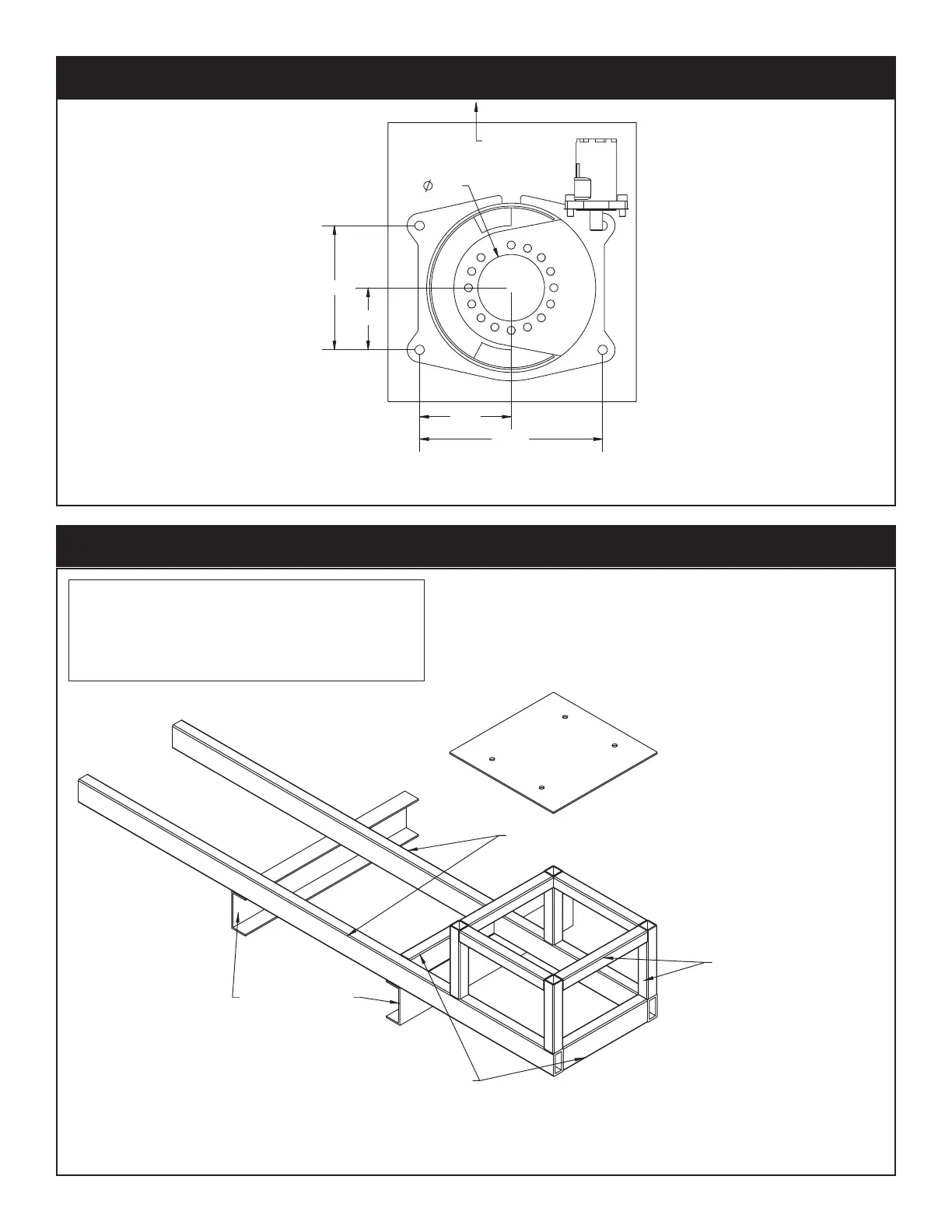

EC4000 Mounting Detail
TUBE 4X2X0.38
TRUCK FRAME
TUBE 4X2X0.38
3/8 PLATE
TUBE 2X2X0.38(TYP 4)
Flatbed Body Reinforcement
If it has been determined that the destination body
won’t support the crane with a fully rated load, the
body must be reinforced. Use 1/4” fillet welds and
an AWS qualified welder to proceed as shown in
this drawing:
Note: Tubing must be
at least 4” x 2” x 0.38”
(Except where noted)
HOLE MOUNTING DETAIL
FRONT
5.00
10.00
14.75
7.38
5.38
