stellar labs EC4000 - Radio Transmitter Assembly Diagram (PN 67894)

Page 28 | Stellar
®
EC4000-20 Telescopic Crane Owner’s Manual
.YTQNOITPIRCSEDTRAPMETI
120088CONTROL HANDLE HOUSING 4 FCTN HET1
2 51830 CONTROL HANDLE FACE PLT 5 FCTN 1
324385GUARD RADIO SWITCH 4 FCTN 1
422600SWITCH TOGGLE HET RADIO 63019300 5
535441BATTERY TUBE AA HETRONIC RADIO1
616975SWITCH E STOP ASM HETRONIC RADIO1
7 51831 DECAL CONTROL HANDLE 5 FCTN1
8 38475 SCREW 4MMX12MM PHMS PH 4
9 36156 SCREW 4MMX14MM PHMS PH 2
10 29460 SCREW 3MMX35MM PHMS PH 2
11 50932CONTROL HANDLE GRIP LESS TRIGGER HET H2 1
SEE NOTE
3
5
11
1
2
6
4
10
NOTE: 1) P/N'S 25999 & 24958 ARE OPTIONAL COVERS
FOR THE SWITCHES AND TRIGGER
7
8
9
PN 67894

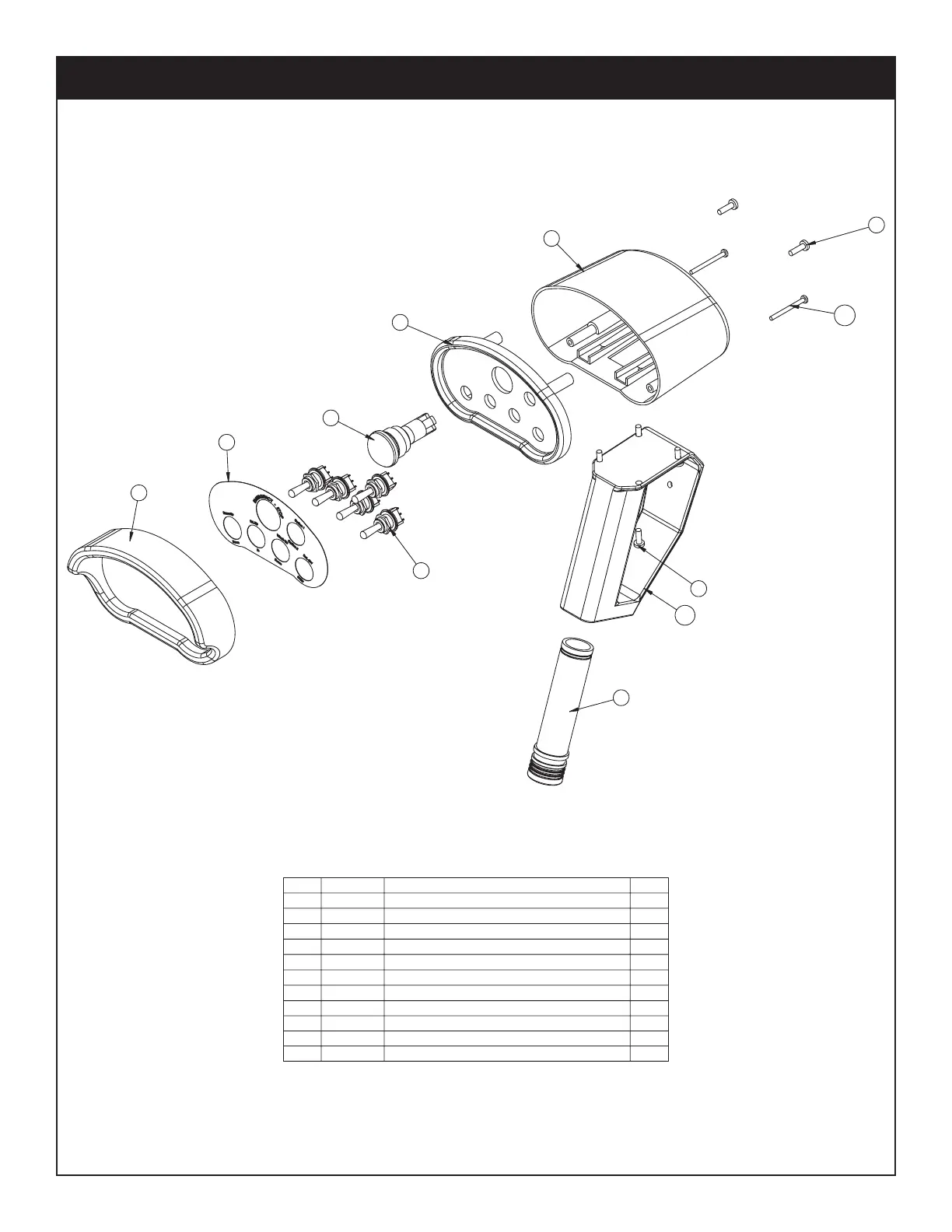

Radio Transmitter Assembly - PN 67894
