EC4000-20 Telescopic Crane Owner’s Manual | Page 21

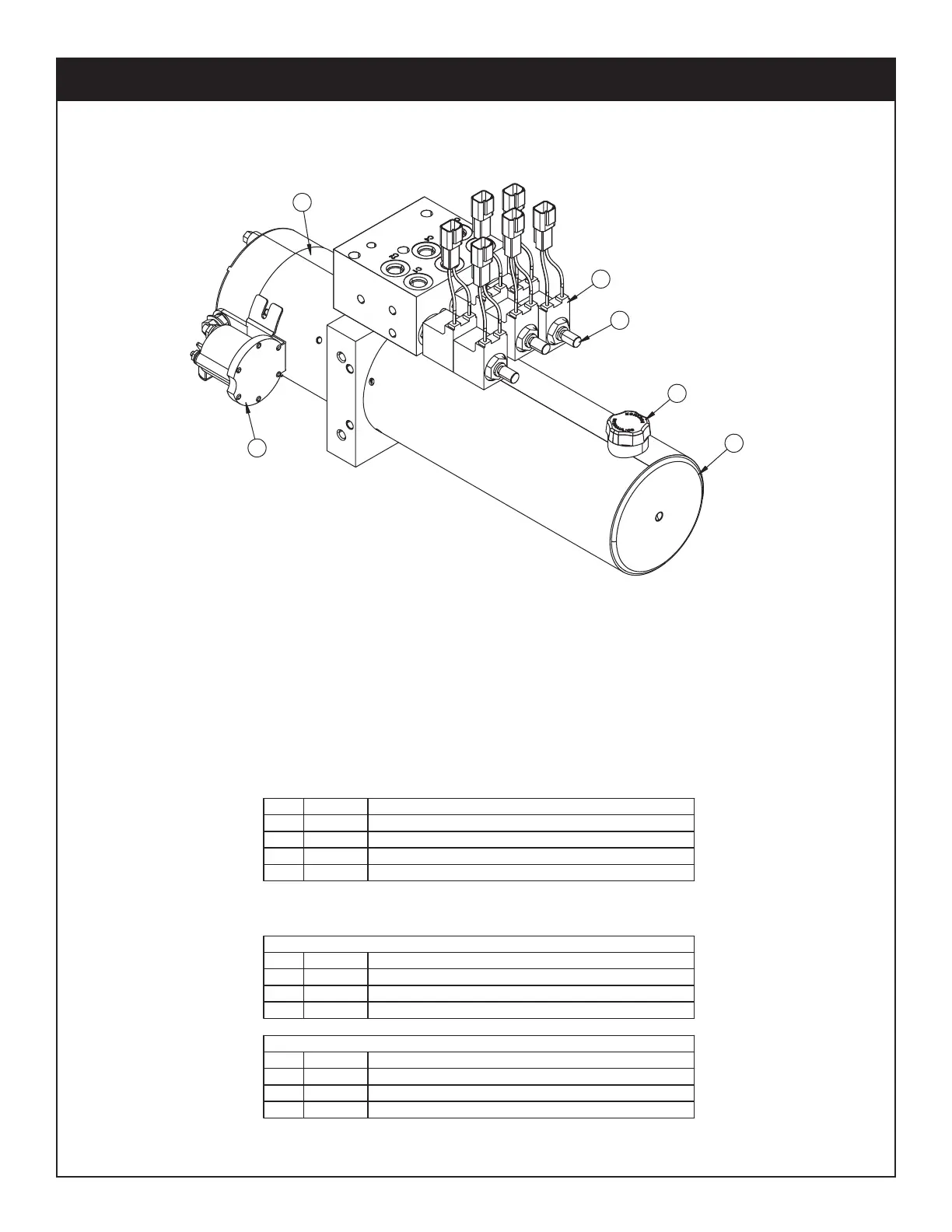

Power Unit Assembly - PN 42513
PN 42513
01 44025 FILL CAP - HYDRAULIC RESERVOIR
04 44030 SOLENOID START EC3200 P-UNIT
03 44028 VALVE CARTRIDGE EC3200 UNIT
02 44027 VALVE COIL EC3200 POWER UNIT
ITEM PART No. DESCRIPTION
ITEM PART No. DESCRIPTION
07 56648 O-RING PWR UNIT RESERVOIR 3315/4420/5520
06 44029 MOTOR 12V EC3200 POWER UNIT
05 44026 RSRVR EC3200 POWER UNIT
MANUFACTURER: BUCHER HYDRAULICS
ITEM PART No. DESCRIPTION
07 125086 ORING RSRVR EC3200 POWER UNIT
06 100734 MOTOR 12V EC3200 POWER UNIT
05 99353 RSRVR EC3200 POWER UNIT
MANUFACTURER: MTE HYDRAULICS
