Page 26 | Stellar
®
EC4000-20 Telescopic Crane Owner’s Manual
PN 69735
1 67866 1BEARING AND SEAL KIT 9IN/14IN/17IN TTB KNMTS AFTER 2006
4 67863 1SHIM KIT 6000 KINEMATICS W17B02 AFTER 2006
3 67864 1END CAP 9IN/14IN/17/IN/25IN KNMTS AFTER 2006
2 77739 1WORM EC4000/EC5000 KNMTS
ITEM PART No. QTY.DESCRIPTION
1
4
2
3
USE MOLY GREASE 936SF HEAVY, STELLAR PN 4460
ON WORM AND BEARING GEAR TEETH
USE EP2 LITHIUM COMPLEX GREASE, STELLAR PN 78090
ON WORM BEARINGS AND BEARING RACE
GREASE MAIN BEARING RACE THROUGH
REMOTELY MOUNTED GREASE ZERK

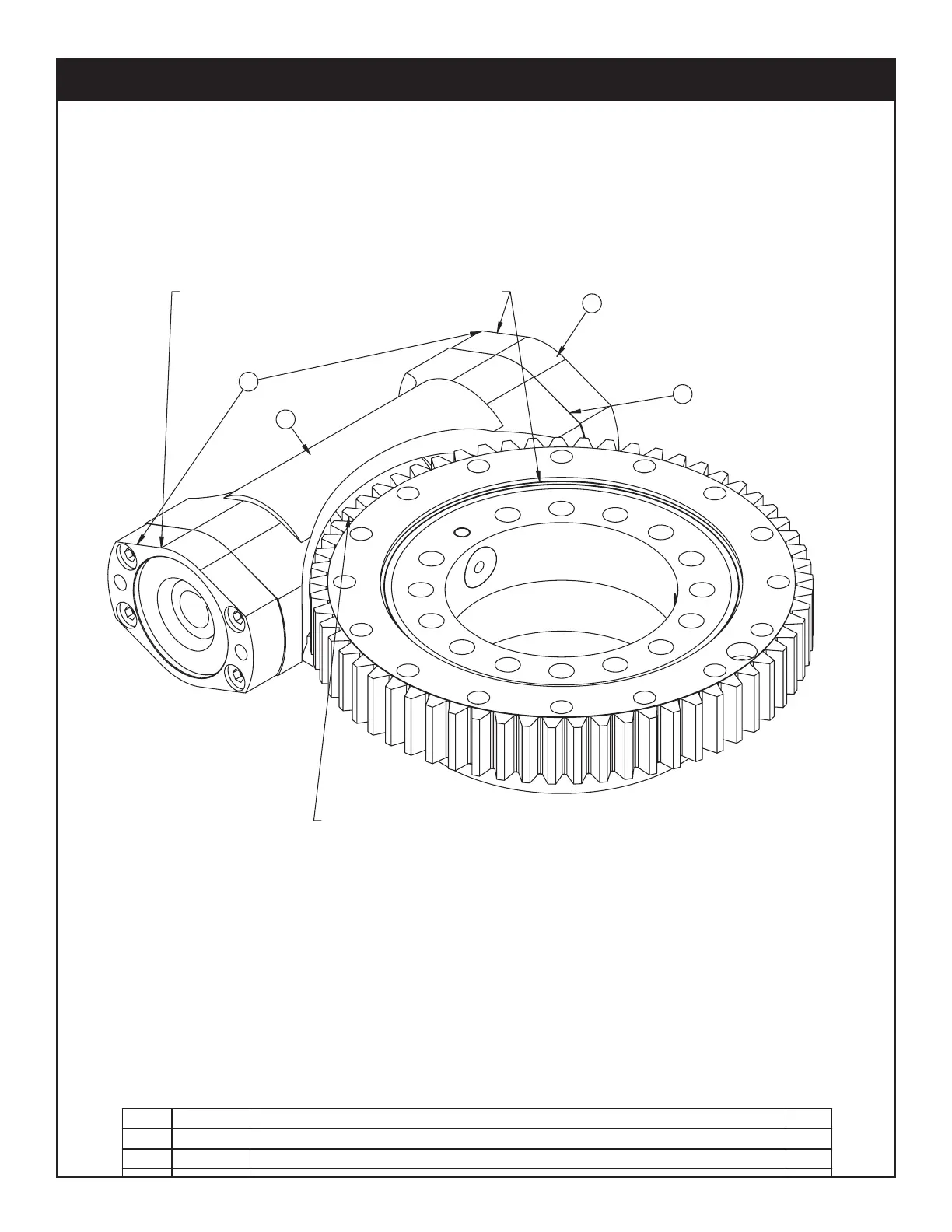

Gear Bearing Assembly - PN 69735
