 Stellar® EC Series Crane Owner’s Manual

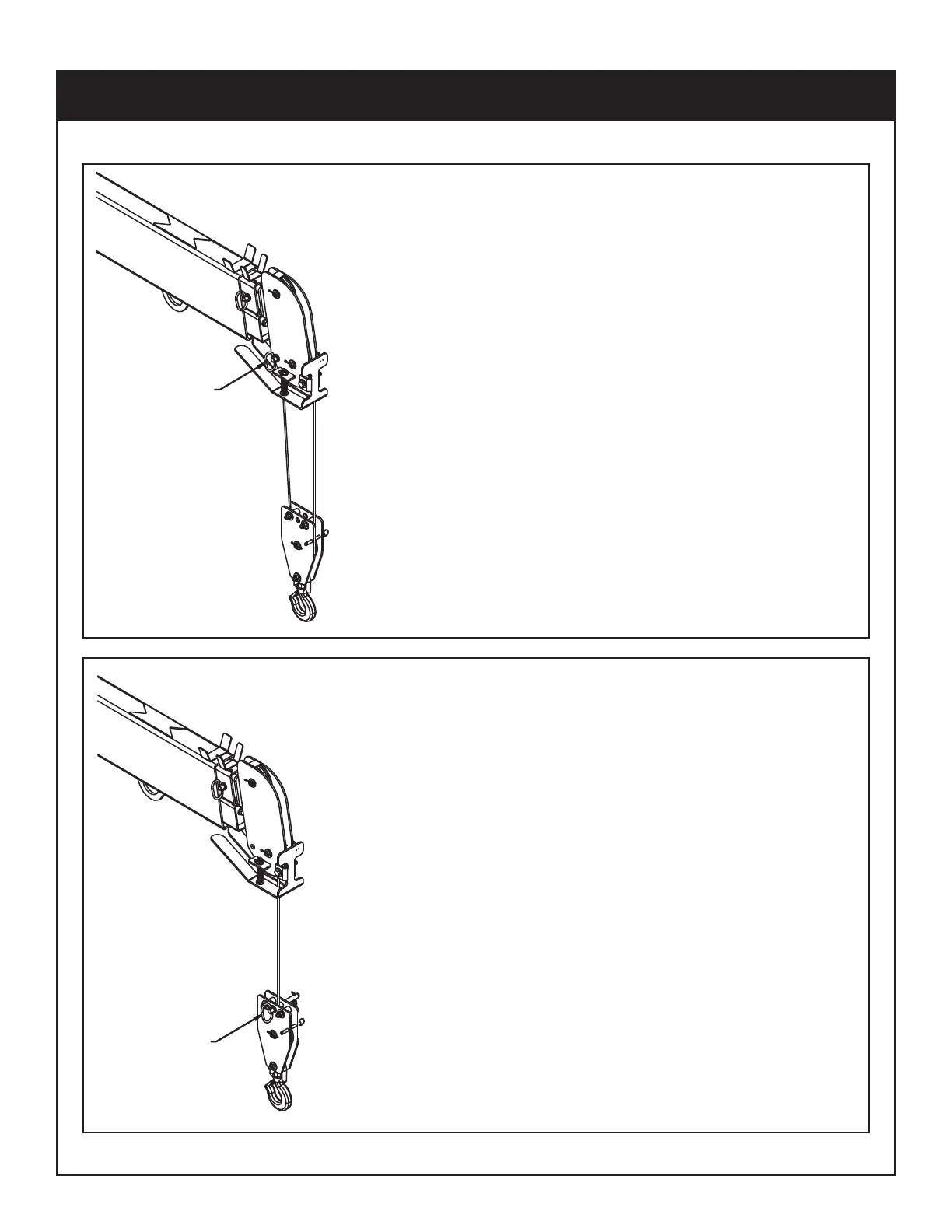

Standard 2-Part Line
Capacities as shown on load chart.
Single Part Line
1) Remove PIN “A” from boom tip.
2) Route wire rope through snatch block.
3) Pin wire rope to snatch block as shown with PIN “A”
PIN "A"
PIN "A"
Wire Rope/Sheave Configurations
