EC6000 Telescopic Crane Owner’s Manual PN: 65779

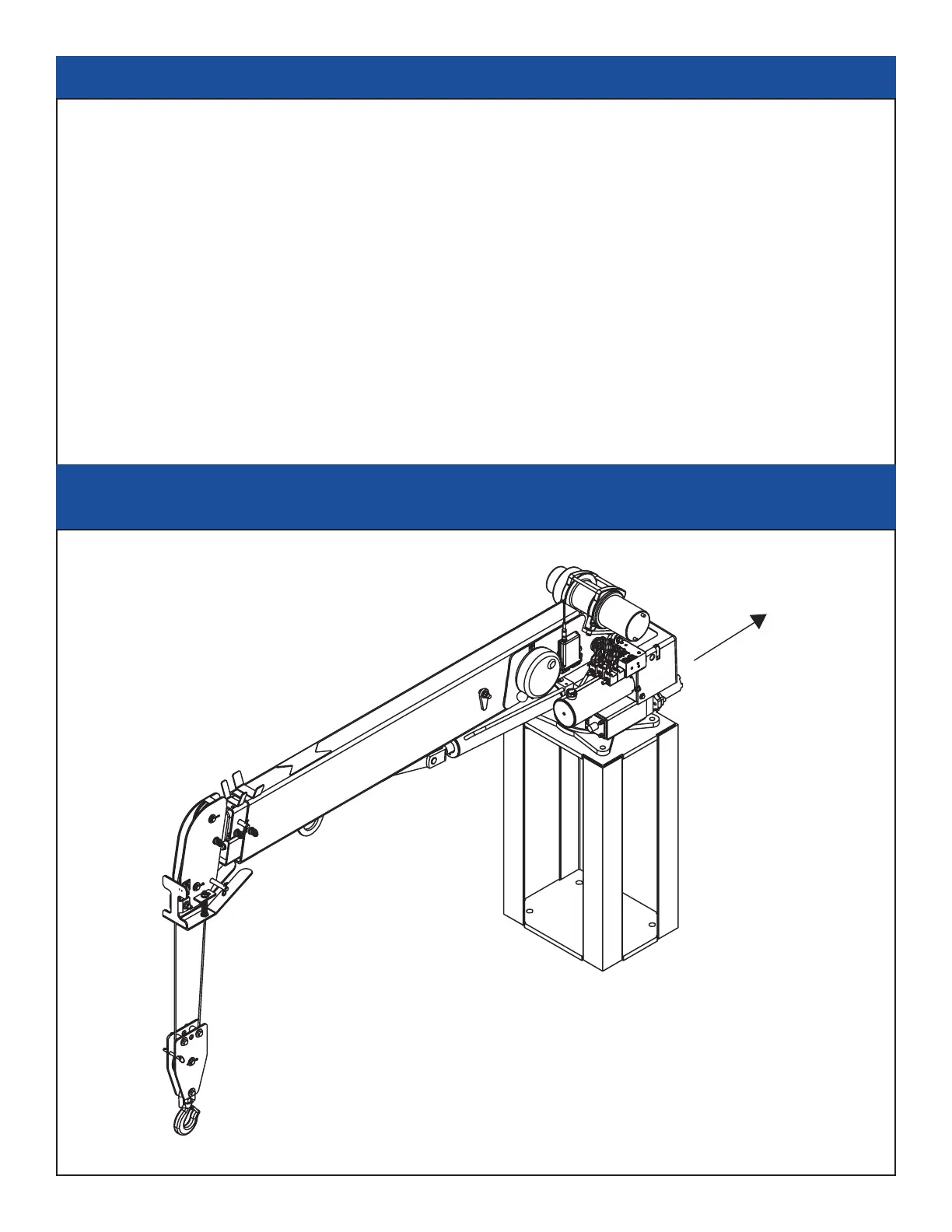

Front of Truck
Installation Overview
1. Determine that the mounting location for the EC3200 crane is at least 18” x 15” (45.7 x 38.1 cm).
2. Use the detail on the following page to drill .938” diameter holes into the mounting plate. Run tap on the threads of
the base to be sure they are clean.
3. Use a crane or lifting device capable of lifting the weight of the Stellar crane. The Stellar EC3200 weighs approximately
800 lbs (360 kg). Note: cranes are shipped with rotation positioned at 180 degrees from normal stowed travel
position. This will allow for easy installation of the crane and permanent connection of all hydraulic and electrical
components prior to repositioning into the crane saddle.
4. Connect straps or chain from the lifting device to the main boom of the Stellar EC3200.
5. Use four (4)
7
/8” x 1.75” Grade 8 bolts and four (4)
7
/8” Grade 8 flat washers.
6. Install a washer on each bolt.
7. Apply Loctite Thread locker #277 to the bolts.
8. Using the lifting device, lower the Stellar EC3200 just above the crane compartment and start the bolts. Have
someone assist in leveling the crane.
9. Secure the crane using the mounting hardware provided. Note: longer or shorter bolts may be required –
recommended thread engagement into crane base is 0.75” – use grade 8, zinc plated bolts only.
10. Torque the bolts to 455 ft-lbs.
11. Remove supporting crane.
12. Hook-up hydraulics and electrical using the schematics provided at the end of this chapter.
Note: If questions should arise during any portion of this installation,
