stellar labs EC6000 - Radio Transmitter Assembly

Page 38 | Stellar
®
EC6000 Telescopic Crane Owner’s Manual PN: 65779
SEE NOTE
3
5
11
1
2
6
4
10
NOTE: 1) P/N'S 25999 & 24958 ARE OPTIONAL COVERS
FOR THE SWITCHES AND TRIGGER
7
8
9

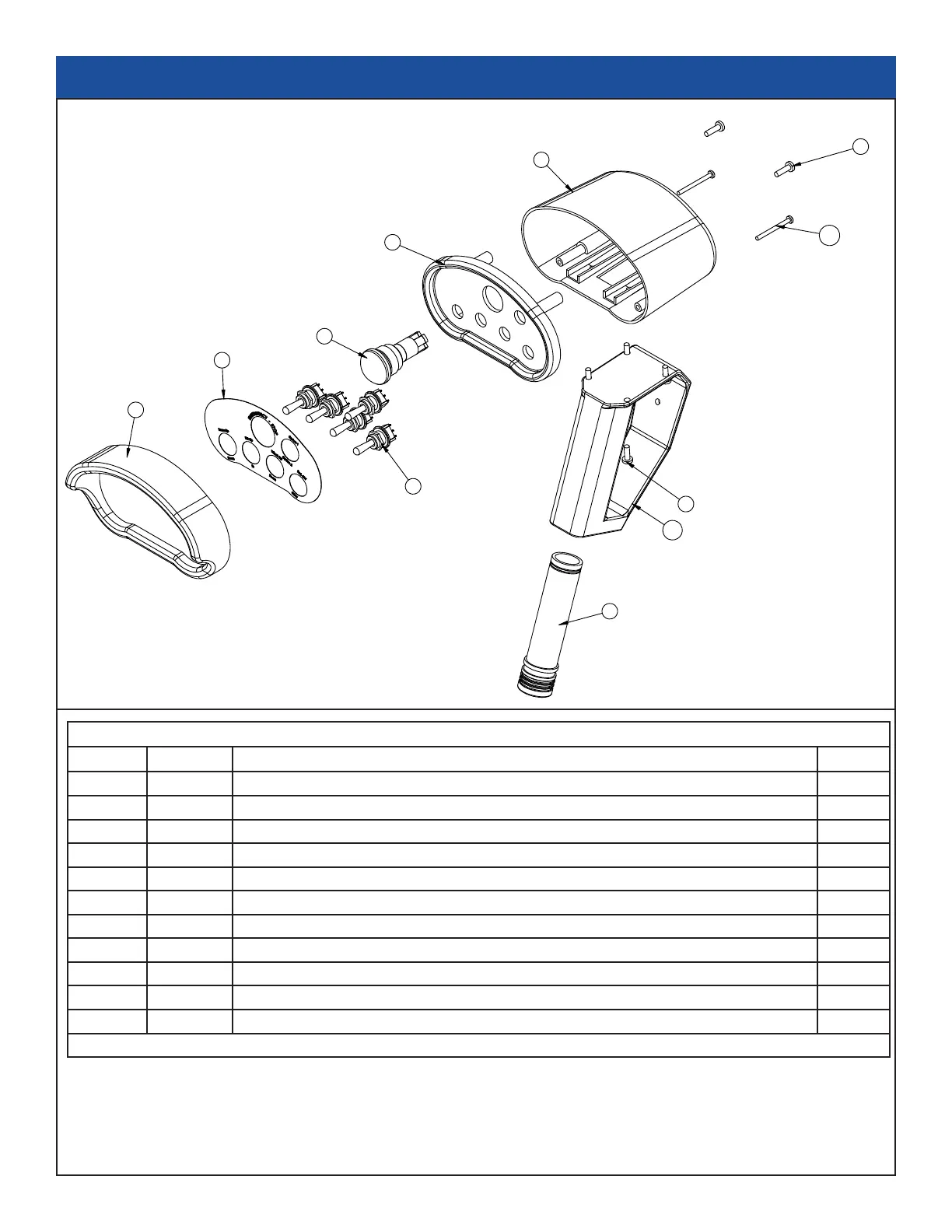

Radio Transmitter Assembly - PN 67894
67894
ITEM PART DESCRIPTION QTY
1 20088 CONTROL HANDLE HOUSING 4 FCTN HET 1
2 51830 CONTROL HANDLE FACE PLT 5 FCTN 1
3 24385 GUARD RADIO SWITCH 4 FCTN 1
4 22600 SWITCH TOGGLE HET RADIO 63019300 5
5 35441 BATTERY TUBE AA HETRONIC RADIO 1
6 16975 SWITCH E STOP ASM HETRONIC RADIO 1
7 51831 DECAL CONTROL HANDLE 5 FCTN 1
8 38475 SCREW 4MMX12MM PHMS PH 4
9 36156 SCREW 4MMX14MM PHMS PH 2
10 29460 SCREW 3MMX35MM PHMS PH 2
11 50932 CONTROL HANDLE GRIP LESS TRIGGER HET H2 1
REV. INITIAL RELEASE
