EC6000 Telescopic Crane Owner’s Manual PN: 65779 | Page 21
WARNING
25159
After stowing the crane, always return the valve
bank manual overrides to the neutral position.
Failure to return the manual overrides to the neutral
position can result in death or serious injury.
Movement Hazard
NOTICE
9188
Damage may occur if worm gear runs
dry. Keep worm gear lubricated with
Stellar
®
grease (PN 4460).
WARNING
Misuse Hazard
Two blocking the crane can result in death
or serious injury.
Never allow the hook block to contact the
boom tip by hoisting up, extending or
lowering the boom.
12300
Winch Pull
Boom Extending
Boom
Down
03
04
07
09
19
02
01
05
06
13819
20
0
10
30
80
70
50
40
60
Angle Indicator
13820
20
0
10
30
40
60
70
80
50
Angle Indicator
GREASE every 3 months.
Apply 3 ‘pumps’ of EP2
(extreme pressure grease)
then rotate crane fully.
15171
NOTICE
12924
This crane has been designed and
manufactured to ASME/ANSI B30.22
and/or B30.5 specifications.
HOLD BUTTON TO
OPERATE CRANE
MANUALLY.
18472
WARNING
24712
Do not use stow hook for any lifting applications.
Using the stow hook for anything other than hook
stowage can result in death or serious injury.
Misuse Hazard
WARNING
28256
Overload Hazard
Bypassing the overload condition
by tampering with the overload
device can result in death or
serious injury.
Never tamper with overload
device.
35234
Proudly Designed
and Manufactured
in the USA by
08
12452
WARNING
Free falling manual boom
extensions can result in death or
serious injury.
• Properly install retention pins
prior to operation.
• Do not stand in front of
extension when removing
retention pin.
• Do not allow extensions to
free fall.
Free Falling Boom Hazard
42820
PULLPUSH
OUTIN
EXTENSION
UPDOWN
MAIN
CCWCW
ROTATION
DANGER
Electrocution Hazard
Death or serious injury will result from
inadequate clearance if crane, load,
or vehicle becomes electrically
charged.
• Maintain safe clearance from high
voltage power sources.
• Never approach vehicle or load if
equipment is near a high voltage
power source.
C1179
12451
WARNING
Hoisting personnel on boom,
hook, load, or loadline can result
in death or serious injury.
• Never use crane to hoist
personnel.
• Never ride the boom, hook,
load, or any device attached
to crane boom or load line.
Fall Hazard
10
Crane Compartment Inner Door
Suggested Placement
Reach in Feet/Meters
Capacity in Pounds/Kilograms
Weight of load handling devices are
part of the load lifted and must be
deducted from the capacity.
PN 53525
Maximum 1 - part line capacity is
3000 lbs (1360 kg). For greater loads,
use 2 - part line.
3'
0'
75º
60º
6000 lbs
6000 lbs
6000 lbs
80º
16' 21'
0'
9'6' 11'
1810 lbs3450 lbs
15º
30º
2375 lbs
45º
3'
6'
9'
12'
15'
18'
22'10"
.914 m
1.83m
2.74m
3.35m
4.87m
6.40m
.914 m
1.83m
2.74m
4.57m
5.49m
3.66m
6.96m
1560 kg
1075 kg
820 kg
2720 kg
2720 kg
2720 kg
6000 lbs
2720 kg
6000 lbs
2720 kg
6000 lbs
2720 kg
6000 lbs
2720 kg
3560 lbs
1610 kg
1795 kg
3965 lbs
4845 lbs
2195 kg
1110 kg
2450 lbs
2730 lbs
1235 kg
1510 kg
3340 lbs
4715 lbs
2135 kg
1870 lbs
845 kg
2080 lbs
940 kg
2545 lbs
1150 kg
1630 kg
3600 lbs
EC6000
Reach in Feet/Meters
Capacity in Pounds/Kilograms
Weight of load handling devices are
part of the load lifted and must be
deducted from the capacity.
PN 53525
Maximum 1 - part line capacity is
3000 lbs (1360 kg). For greater loads,
use 2 - part line.
3'
0'
75º
60º
6000 lbs
6000 lbs
6000 lbs
80º
16' 21'
0'
9'6' 11'
1810 lbs3450 lbs
15º
30º
2375 lbs
45º
3'
6'
9'
12'
15'
18'
22'10"
.914 m
1.83m
2.74m
3.35m
4.87m
6.40m
.914 m
1.83m
2.74m
4.57m
5.49m
3.66m
6.96m
1560 kg
1075 kg
820 kg
2720 kg
2720 kg
2720 kg
6000 lbs
2720 kg
6000 lbs
2720 kg
6000 lbs
2720 kg
6000 lbs
2720 kg
3560 lbs
1610 kg
1795 kg
3965 lbs
4845 lbs
2195 kg
1110 kg
2450 lbs
2730 lbs
1235 kg
1510 kg
3340 lbs
4715 lbs
2135 kg
1870 lbs
845 kg
2080 lbs
940 kg
2545 lbs
1150 kg
1630 kg
3600 lbs
EC6000
20
NOTICE
73929
11
12
13
14
15
21
22
23
24
25
3 TONS (2,721 KG)
LOAD BLOCK RATING
BLOCK WEIGHT...................19 LBS (8.61 KG)
ROPE SIZE (IN)................................5/16 (0.31)
MANUFACTURER.......STELLAR INDUSTRIES
116438
PN 53523
(Rev G - 03/20/19)
Updated Decal ID
EC GENERAL DECAL KIT - PN 90471

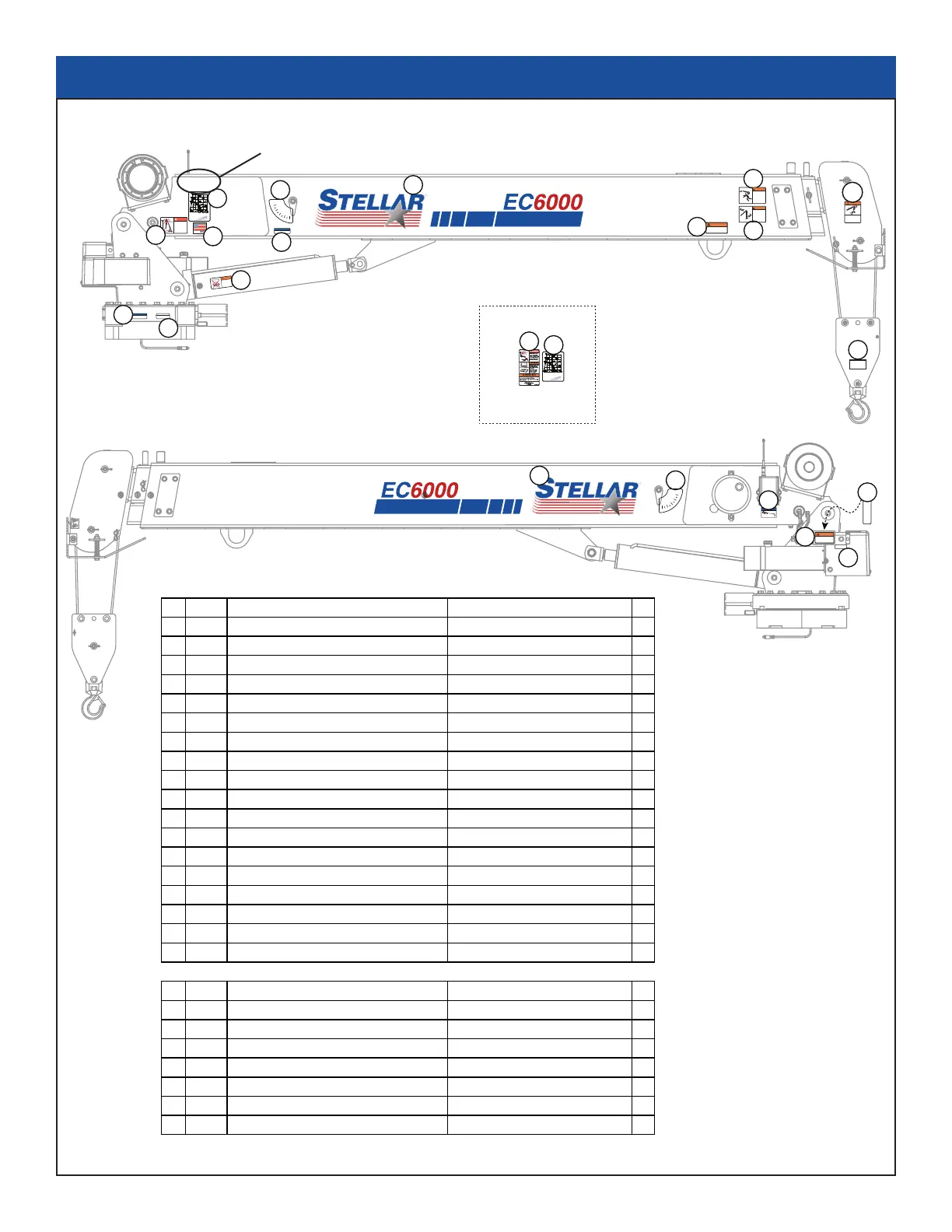

ITEM PN DESCRIPTION LOCATION QTY
01 12451 DECAL WARNING HOISTING PERSONNEL Main Boom 1
02 12452 DECAL WARNING MANUAL EXT Main Boom 1
03 13819 DECAL ANGLE INDICATOR SS Main Boom 1
04 13820 DECAL ANGLE INDICATOR CS Main Boom 1
05 15171 DECAL GREASE WORM Crane Base 1
06 18472 DECAL MANUAL OPERATION Power unit cover 1
07 24712 DECAL WARNING STOW HOOK Crane Boom above stow hook 1
08 25159 DECAL WARNING MANUAL OVERRIDES Valve Bank 1
09 28256 DECAL WARNING OVERLOAD DEVICE Main Cylinder 1
10 35234 DECAL STELLAR MADE IN THE USA Main Boom 1
11 93936 DECAL SAFETY & SERVICE MECH BODY DOOR Crane Compartment 1
12 116438 DECAL SNATCH BLOCK 3 TON Snatch Block 1
13 42820 DECAL VB CONTROL EC SERIES On top of valve bank 1
14 73929 DECAL PRESSURE WASH Main Boom 1
15 C1179 DECAL DANGER ELECTROCUTION SMALL Main Boom 1
16* C4545 DECAL DANGER ELECTROCUTION LARGE Four corners of the body/chassis 4
17* C5910 DECAL STELLAR 4x9.5 Suggested: Rear body/tailgate 1
18* C5911 DECAL STELLAR 2x4.5 Suggested: Side corners of body 3
EC6000 DECAL KIT - PN 90488
ITEM PN DESCRIPTION LOCATION QTY
19 9188 DECAL ROTATE/GREASE Crane Base 1
20 12300 DECAL WARNING TWO BLOCKING Crane Horse Head 1
21 15172 DECAL ASME/ANSI B30.22/B30.5 Main Boom 1
22 101067 DECAL IDENTIFICATION EC6000 LEFT Main Boom 1
23 101068 DECAL IDENTIFICATION EC6000 RIGHT Main Boom 1
24 53525 DECAL CAPACITY EC6000 Main Boom and Crane Compartment 2
25* C4795 DECAL WARNING STABILIZERS Stabilizers 2
*Not Shown
