STEP iAStar Series - 3 Installation and Wiring Instructions; 3.1 Box-Opening Inspection Procedure; 3.2 Inverter Outline Dimensions

Shanghai STEP Electric Co., Ltd.
6
3 INSTALLATION & WIRING INSTRUCTION
3.1 Box-openning inspection
Please check carefully on openning the box：whether there is broken in
transportation ; whether the model and specification of the inverter is consistent with
the requirements on your order.
If there is any missing and unconformity, please contact with us or with the
suppler as soon as possible.
3.2 outline dimensions

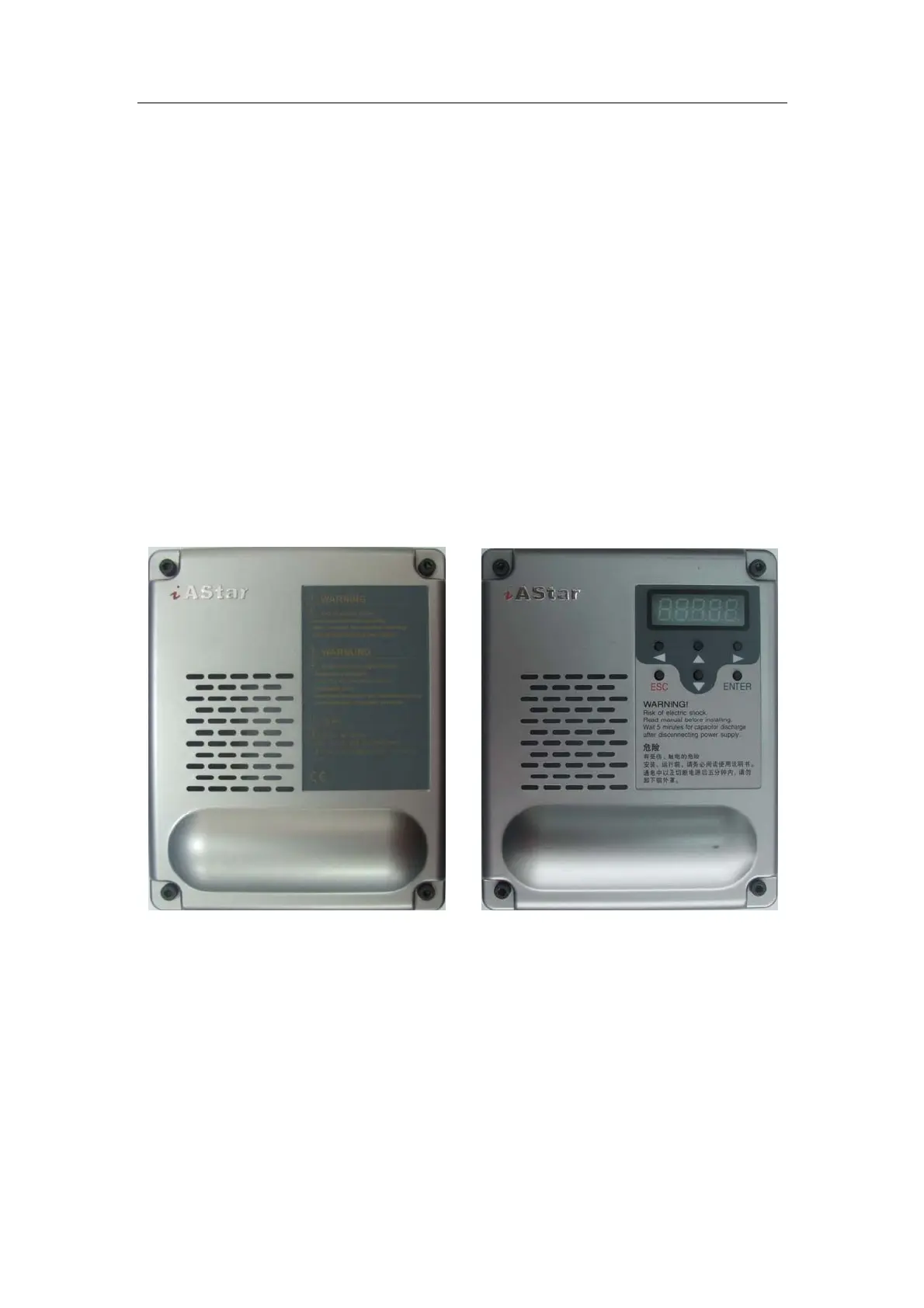

Standard illustration of the inverter is shown as followings.
Fig 3-1
Front view of Type A1 Fig 3-2 Front view of Type A2/A3
