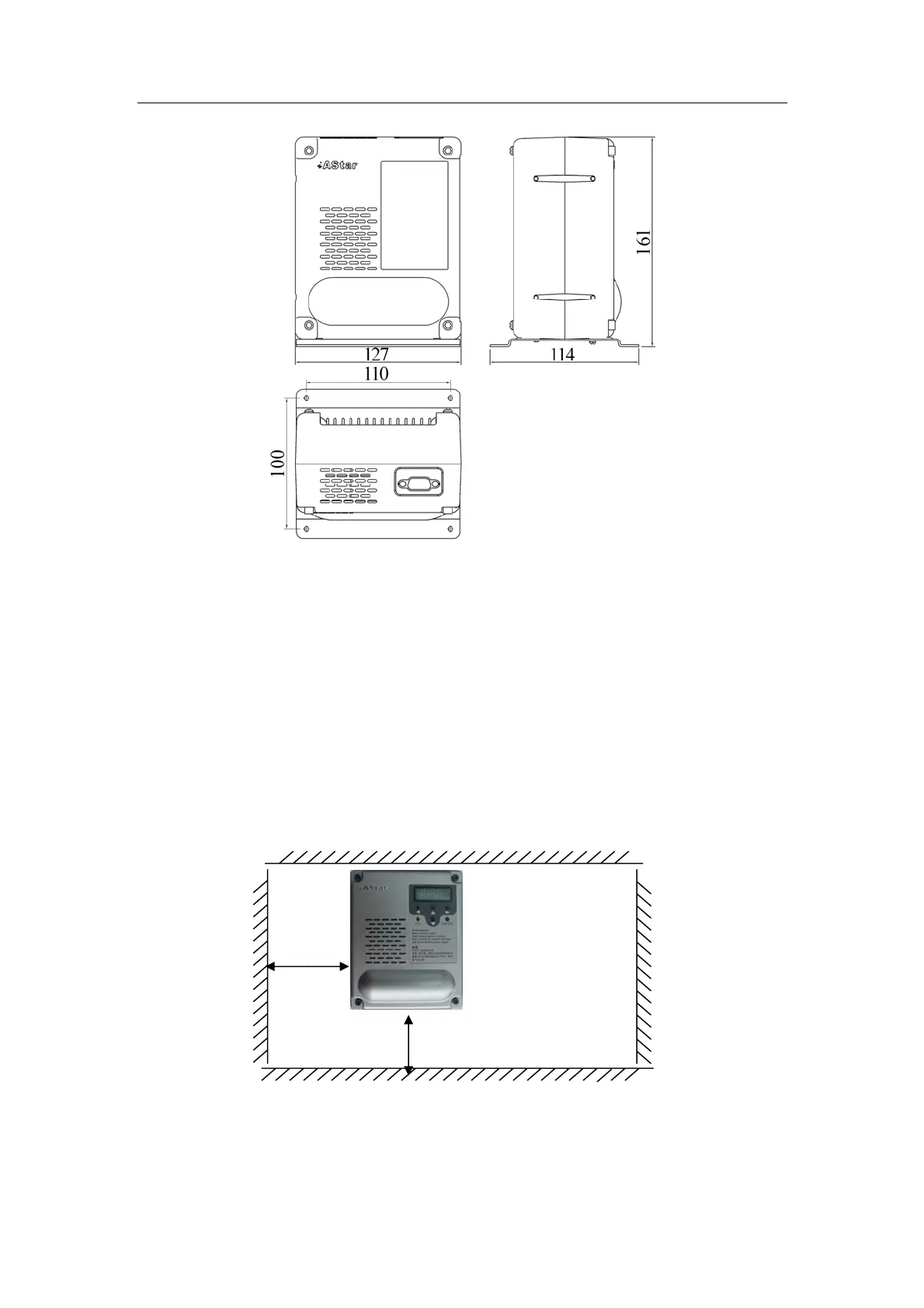

图3-3(c) dimension of upright installation（unit: mm）
3.3 Installation specification
The door inverter is to be installed horizontally and can be installed on the top of the
car when used in elevator door machine control. In order to ensure the good
heatrelease of the inverter，please leave enough installation space around the inverter.
>50mm
>50mm
Fig 3-4
installation space
