6.2 panel operator
6.2.1 Outline drawing of panel operator
The panel operator suits Type A2/A3 only。
outline drawing of panel operator is shown as fig 6-2, including a 5 digits 7 codes
nixie tube and 6 keys。

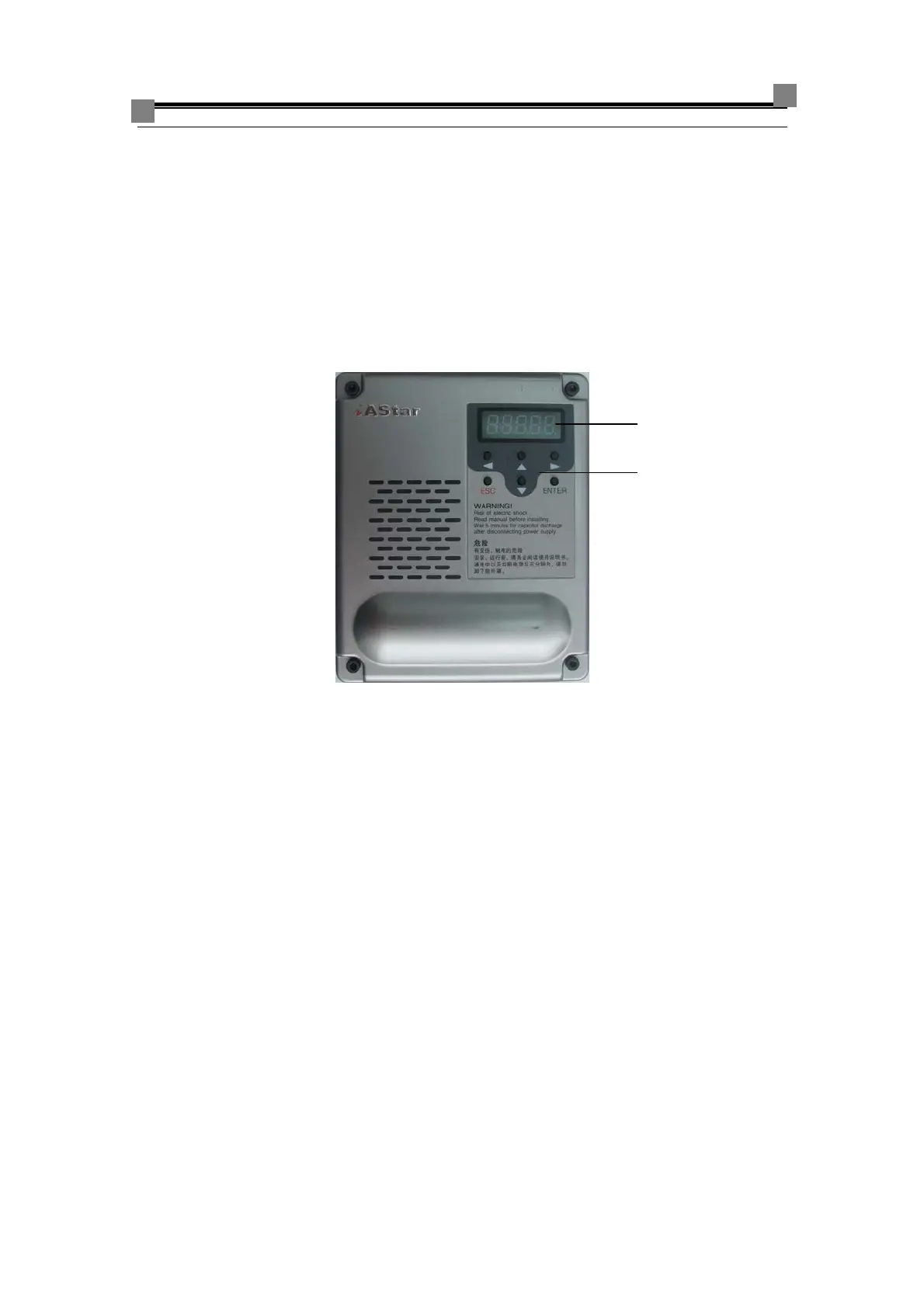

Fig 6-2 outline drawing of panel operator
6.2.2 Keyboard of panel operator
6.2.2.1 Keyboard
The keyboard of panel operator is shown as fig 6-3
The keyboard contains 4 direction key and 1 ESC key, 1 ENTER key
The following functions can be realized through the 6 keys
Browse parameter U；
♦ Function of System password login function：input correcte password in
parameter L, enter parameter F to parameter browses and Para Revises。
initialization password：
1234
♦ Function of browsing fault；
♦ Display fault in real time；
♦ Function of opening and stop openning；
LED nixie tube
Key board
