STEP iAStar Series - 6 Hand-held Operator; 6.1 Hand-held Operator Introductions and Operation

STEP iAStar Frequency Inverter For Elevator Door Machine manual Instructions
35
6 Hand-held operator
6.1 Introductions
The Hand-held operator suits Type A1 only。
The Hand-held operator can be used to set parameters of the inverter,display door machine
status and function the parameters. It is a basic tool to operate inverter. Basic operation of The
Hand-held operator is fully described in this chapter
6.1.1 Outline drawings of Hand-held operator

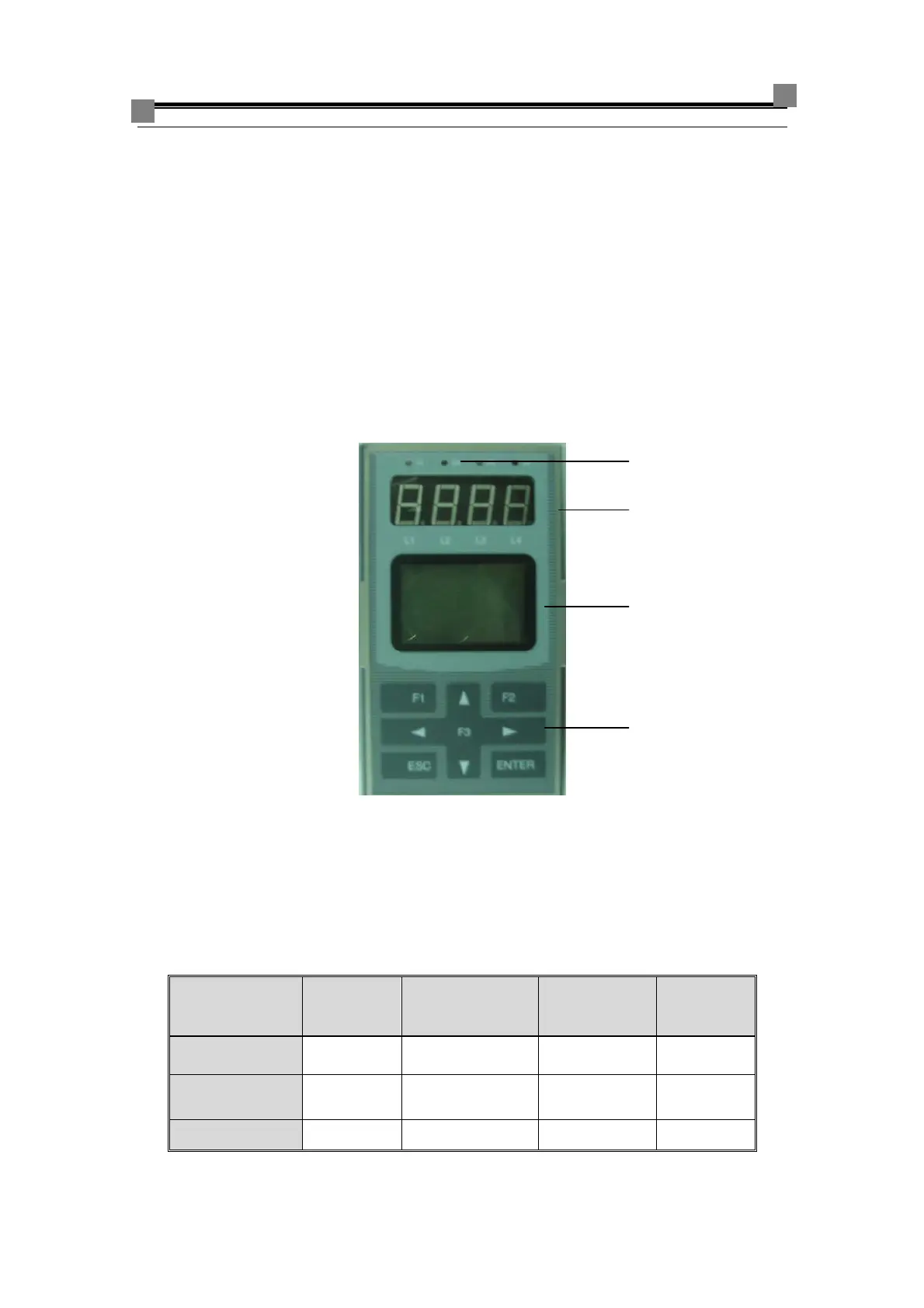

Fig 6-1 outline drawings of Hand-held operator
▼ LED indicator
There are 4 LED indicators on the upside of the operator, running indicator, door-openning
indicator, door-closing indicator and fault indicator. Indication of the elevator status are shown in
Table 6-1
Table 6-1 indication of the elevator status
Elevator status
running
indicator
door-openning
indicator
door-closing
indicator
fault
indicator
Door openning on on off off
Door closing on off on off
fault off off off blink
“fault indicator”has the function of lock, only after fault was clear
keyboard
LCD monitor
LED nixie tube
LED indicator
