3.4.2.2 Definitions of control terminals of Type A2/A3
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

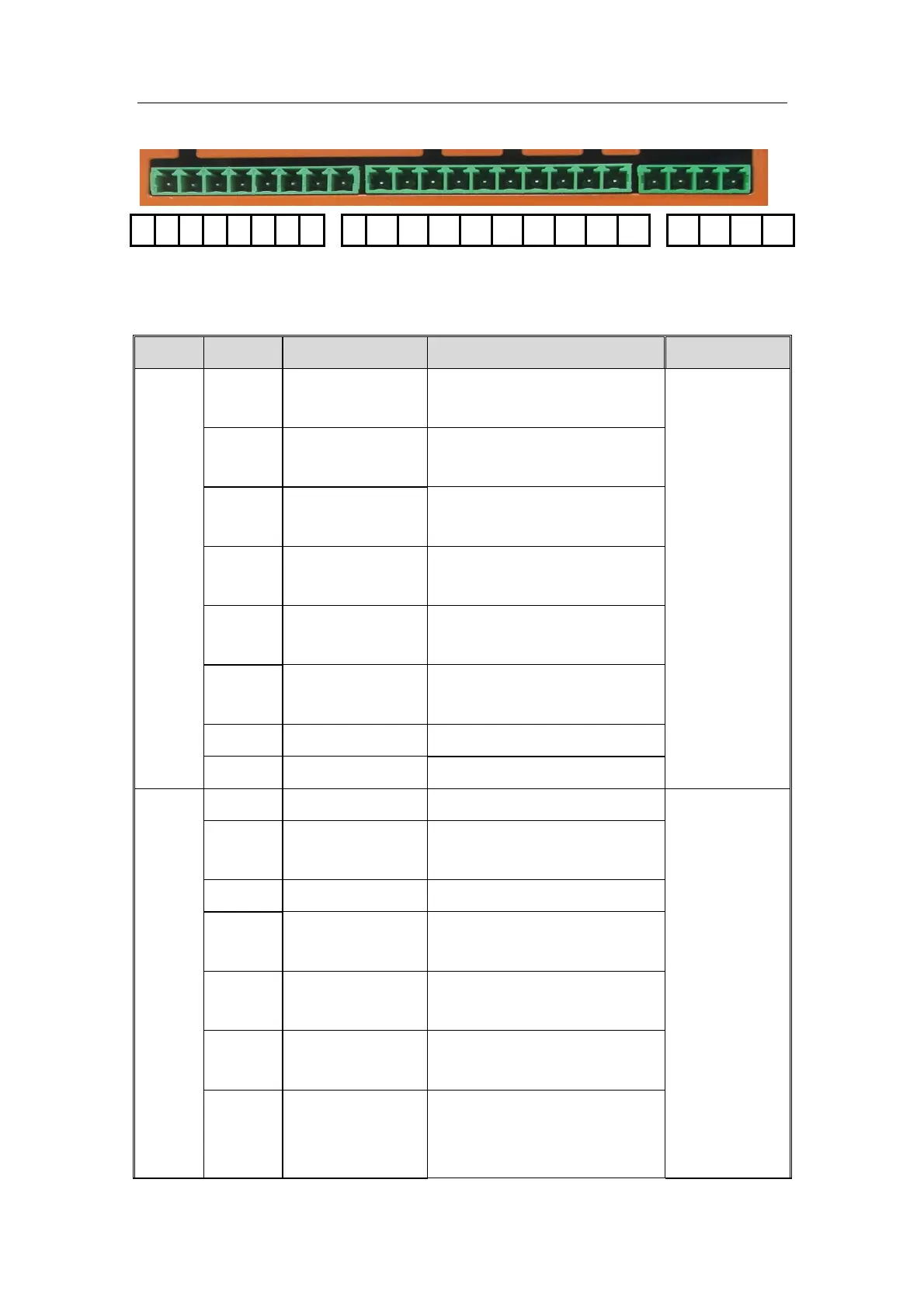

Fig 3-7 sketch map of control terminals of Type A2/A3
Specification of control terminals:
Table 3-3 Specification of control terminals of Type A2/A3
name nunber function Instruction Signal level
Output
terminal
s
1 OUTPUT0A
Signal output terminal of door
open limit A
Relay output
2 OUTPUT0B
Signal output terminal of door
open limit B
3 OUTPUT1A
Signal output terminal of door
close limit A
4
OUTPUT1B Signal output terminal of
door close limit B
5
OUTPUT2A Signal output terminal of
closing-blocked A
6
OUTPUT2B Signal output terminal of
closing-blocked B
7 OUTPUT3A Fault signal output terminal A
8 OUTPUT3B Fault signal output terminal B
Input
terminal
s
9 COM Input public terminal
Optical
isolation input
10 Open the door
Openning signal input
terminal
11 Close the door Closing signal input terminal
12
Close the door
in low speed
Closing in low speed signal
input terminal
13 Door open limit
Signal input terminal of door
open limit
14 Door close limit
Signal input terminal of
door close limit
15
Deceleration
position of
openning
Signal input terminal of
Deceleration position of
openning
