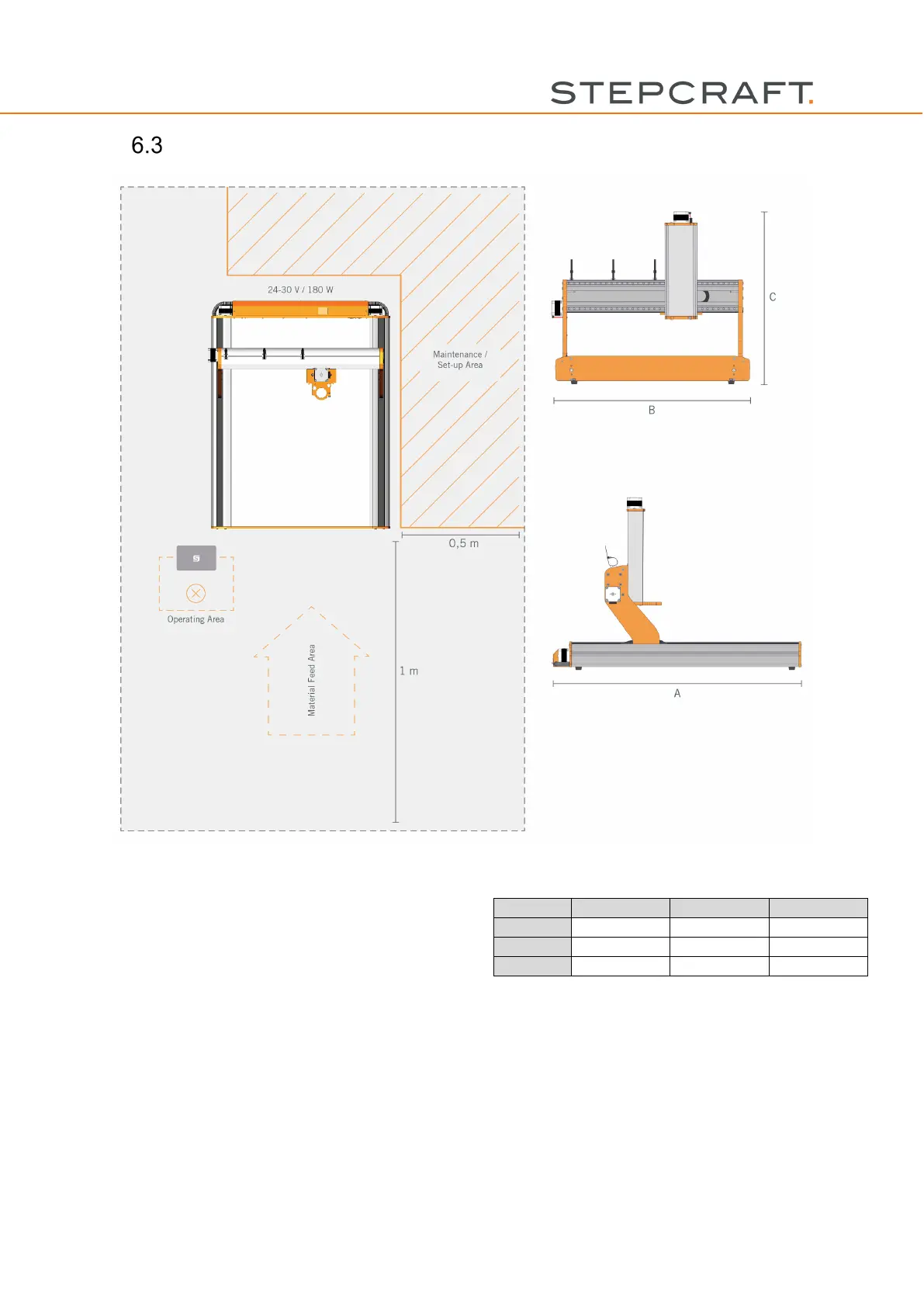

Layout Recommendation
Recommended work area:
• Material feed area: 1m
• Maintenance / Set-up area: 0,5m
• Operating area
Connection on the rear side of the machine:
• Machine control 24 - 30V 180 W
Make sure that no chips can entry via the air inlets of the control attached to the rear side of
the system, for example by bouncing off a wall!
Length (A)
Width (B)
Height (C)
M.500
726 mm
583 mm
646 mm
M.700
926 mm
713 mm
646 mm
M.1000
1226 mm
913 mm
646 mm
