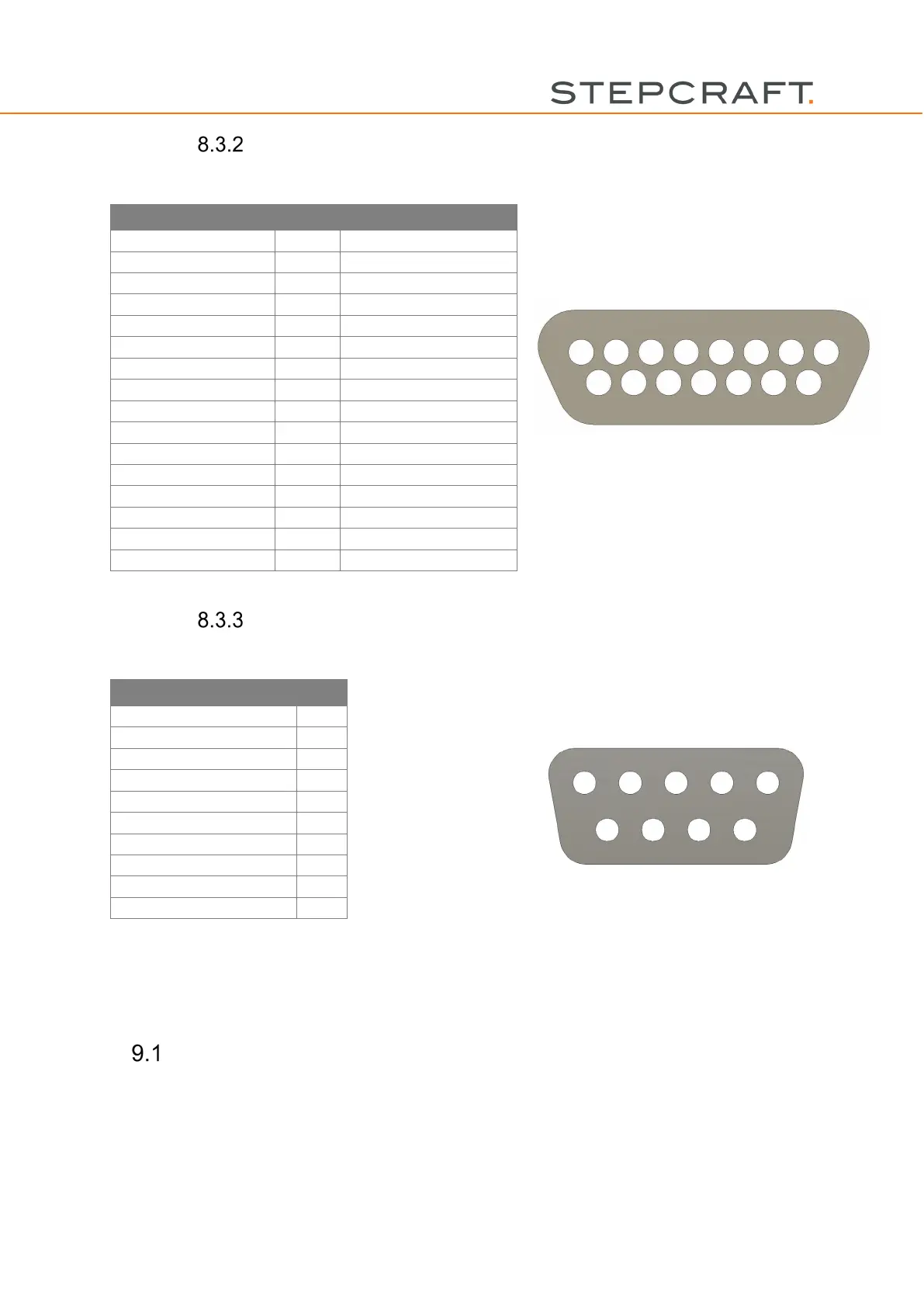

Connector External Signals / Sub-D 15
Connecting external devices with the mainboard.
Signal Pin
Input / Output
19V/ 30V VCC
1
Output
GND
2
Output
+5V / VCC Logic
3
Output
Dir 4
th
axis
4
Output
Step 4
th
axis
5
Output
Relay 2
6
Output
PWM
7
Output
Tool length sensor
8
Input
19V / 30V VCC
9
Output
GND
10
Output
Disable
11
Input
End switch 4
th
axis
12
Input
Relay 1
13
Output
Relay 2
14
Output
Enclosure
15
Input
PE
shed
Connector 4th Axis / Sub-D 9
Connecting motor and end switch of the 4
th
axis (optionally available).
Signal
Pin
Winding 1A
1
Winding 1B
2
n.a.
3
n.a.
4
End switch 4
th
axis
5
Winding 2A
6
Winding 2B
7
n.a.
8
GND
9
PE
shed
9. Transportation and Storage
Transport
If you want to transport the machine, please pay special attention to its dimensions. You might need
additional people for transportation. Never load heavy loads above people!
Avoid a unilateral load of the machine frame!
