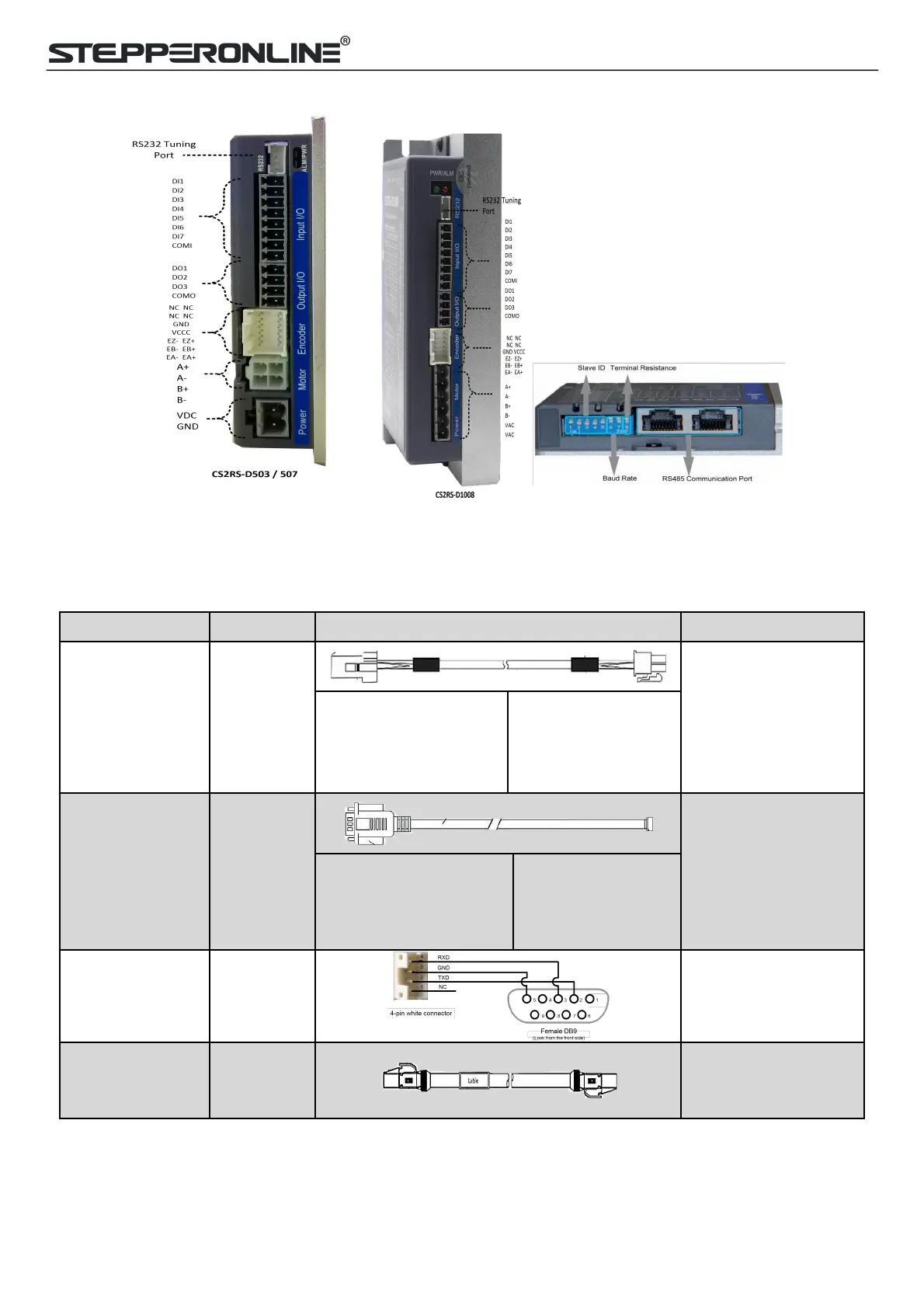

1.4.3 Parts description
1.4.4 Accessories Information
Name
Necessary
Description
Motor extension
cable
Yes
(CABLEM-RZ*M*) for
CL57RS
(CABLEH-RZ*M*) for
CL86RS;
Optional length:
1.5m,3m,5m,8m,
10m,12m,15m
Motor Side:
Manufacturer: TE
Housing: 172159-1-4P
Terminal: 770904-1
Drive Side:
Manufacturer: Molex
Housing: 39012040
Terminal: 39000038
Encoder
extension cable
Yes
(CABLEM-BM*M*)
Optional length: 1.5m,
3m, 5m,8m,
10m,12m,15m
Motor Side:
Manufacturer: NSTECH
Drive Side:
Manufacturer: Molex
Housing: 513531200
Terminal:
561349000
Tuning Cable
No
CABLE-PC-1 cable
Network cable
Yes
Optional length: 0.1m,
0.2m, 0.3m, 0.4m, 1m,
1.5m, 2m, 3m,5m,7m,
10m
