- 47 -
CLRS Series RS485 Closed Loop Stepper Drive User Manual

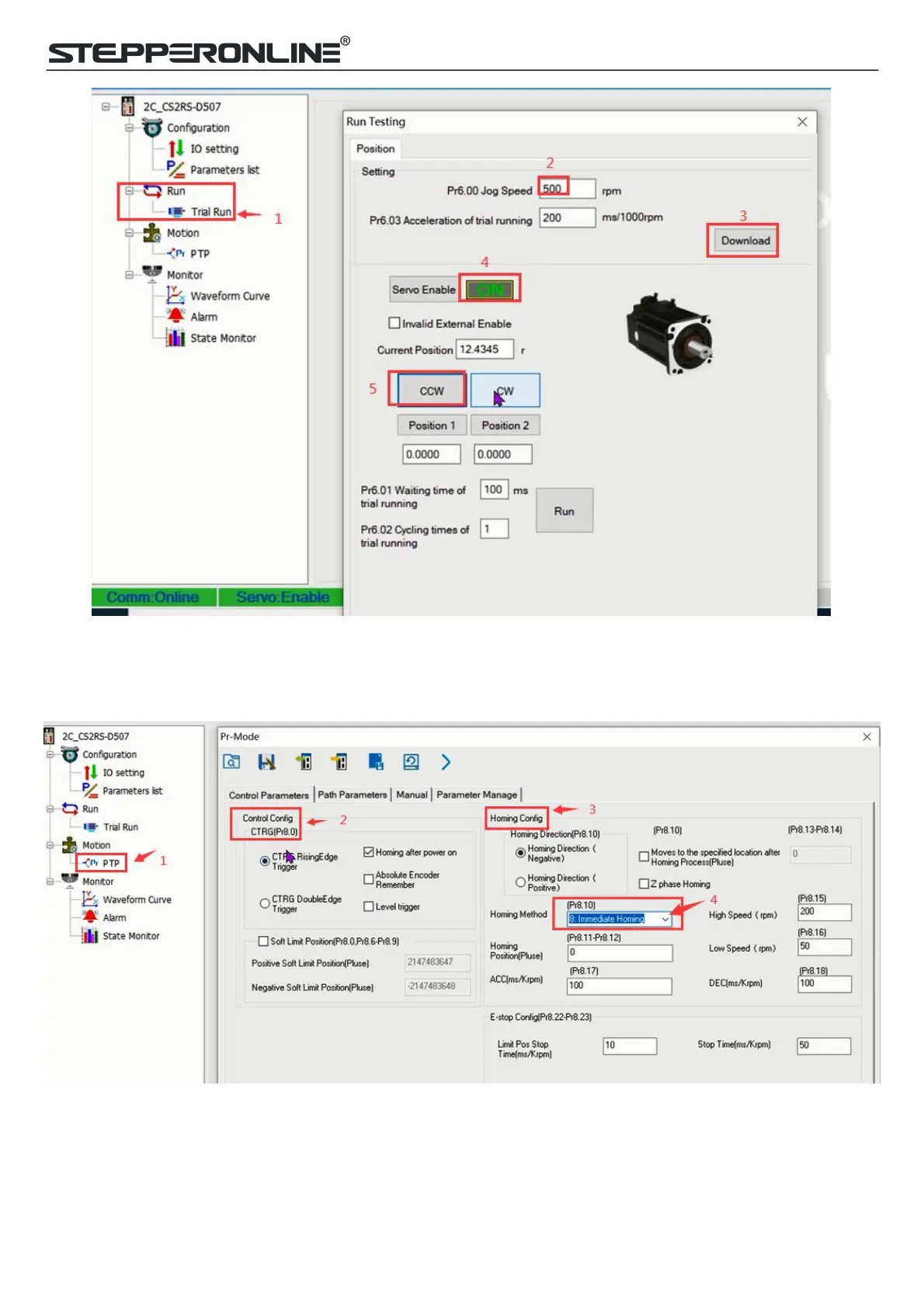

6.1.3 Operation of PR Function
(1) This window can set the CTGR trigger and Homing parameters of PR motion:
(2) This window is the PR path parameter setting, including operation mode, target position, speed value, etc.
Double click to modify parameters.
