CLRS Series RS485 Closed Loop Stepper Drive User Manual
5.4.3 Other functions of PR
Timing sequence of signal path

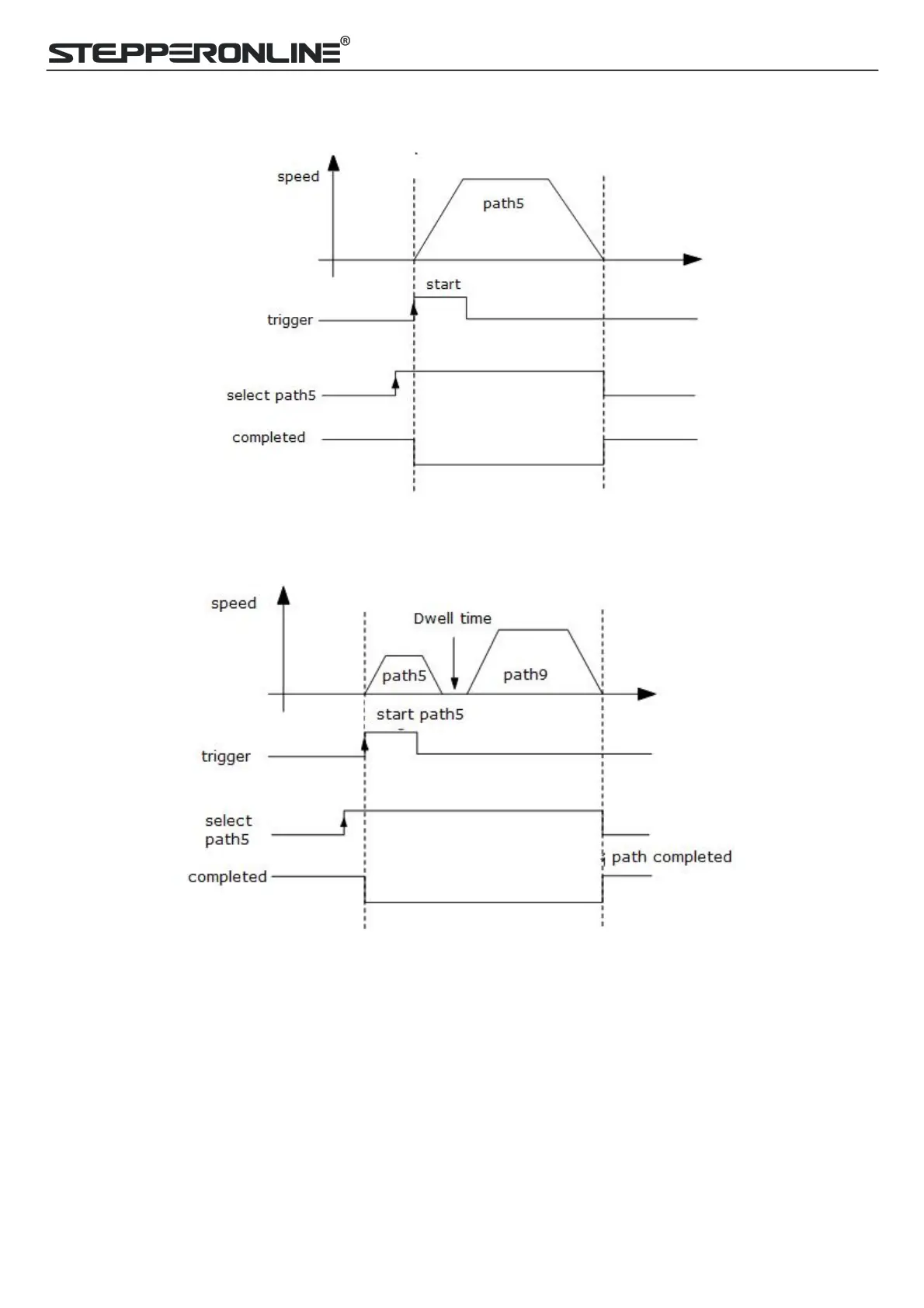

Single path sequence diagram
5.5.3 Multi-segment Jump
For example: set paths 5 and 9, set path 5 to jump to path 9.
Multi-segment jump path sequence diagram
Continuous movement
The bit5 of Pr9.00 is 0 , which does not overlap the continuous path.
As shown in the figure below, set PR1 (PR path1) and PR2 (PR path2) to run continuously and PR1 jump. There is
no in-position signal in the intermediate delay from PR1 jump to PR2.
