Stern Pinball Deadpool PRO - Trough Serial Opto Receiver Extension 8 A; Trough Serial Opto Transmitter; Lower LED Board 8 B

28
ELECTRONIC PINOUTS AND SCHEMATICS
DEADPOOL PRO MANUAL 500-55K1-01
© MARVEL
MARVEL.COM

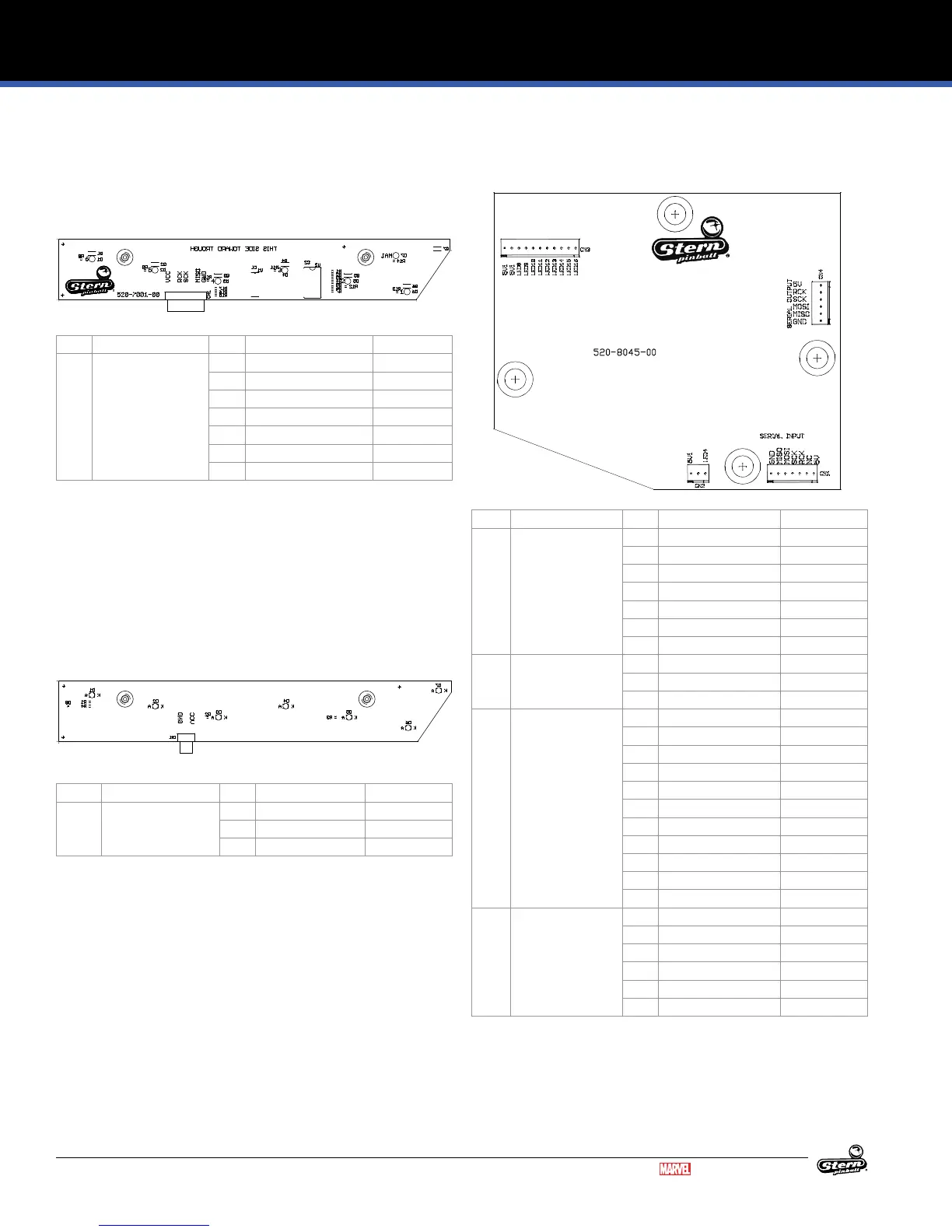

4.5 TROUGH SERIAL OPTO
RECEIVER EXTENSION 8A
520-7001-00
ID Type Pin Description Wire Color
CN1 .100" 7-Pin Header 1 Ground BLK
2 MISO Output Data VIO-BLK
3 MOSI Input Data -
4 SCK Serial Clock VIO-RED
5 RCK Register Clock VIO-ORG
6 N/C -
7 +5 VDC IN RED
ID Type Pin Description Wire Color
CN1 .100" 7-Pin Header 1 Ground BLK
2 MISO Output Data VIO-BLK
3 MOSI Input Data VIO-BRN
4 SCK Serial Clock VIO-RED
5 RCK Register Clock VIO-ORG
6 n/c -
7 +5 VDC IN RED
CN2 .100" 3-Pin Header 1 +5 VDC RED
2 n/c -
3 LP-4 Light Return ORG
CN3 .100" 11-Pin Header 1 +5 VDC RED
2 +5 VDC RED
3 LP-8 Light Return ORG-GRN
4 LP-9 Light Return ORG-BLK
5 LP-10 Light Return ORG-BRN
6 LP-11 Light Return GRN-BLU
7 LP-12 Light Return GRN-VIO
8 LP-13 Light Return GRN-GRY
9 LP-14 Light Return GRN-WHT
10 LP-15 Light Return ORG-RED
11 LP-16 Light Return ORG-YEL
CN4 .100" 6-Pin Header 1 Ground BLK
2 MISO Output Data VIO-BLK
3 MOSI Input Data VIO-BRN
4 SCK Serial Clock VIO-RED
5 RCK Register Clock VIO-ORG
6 V+ RED
4.6 TROUGH SERIAL OPTO
TRANSMITTER
520-5344-00
ID Type Pin Description Wire Color
CN1 .100" 3-Pin Header 1 Ground BLK
2 N/C -
3 +5 VDC IN RED
4.7 LOWER LED BOARD 8B
520-8045-00
