Stern Pinball Deadpool PRO - Electric Gate Assembly; Truck & One-Way Gate Assembly

46
PARTS REFERENCE
DEADPOOL PRO MANUAL 500-55K1-01
© MARVEL
MARVEL.COM
ID Part Number Description Qty
1 535-9847-00 BRACKET, ELEC GATE, RAIL MOUNT 1
2 530-5702-01 CLEVIS PIN W/ RING, 3/16"D X 1-1/2" 1
3 510-7691-67 RIVETED ASSY, TRUCK & BRACKET,
DEADPOOL PRO
1
4 232-5201-00 SCREW, 6-32 X 3/8" PPH MS SEMS 2
5 242-5001-00 #6 WASHER 2
6 240-5005-00 6-32 NYLON STOP NUT 3
7 535-5372-00 REBOUND HINGE PIN 1
8 535-9682-00 GATE - ELECTRIC (MAGNET) 1
9 550-5510-02 HAT - TRIMMED - RED SB 1
10 520-7000-00 SINGLE FLASH LED BOARD 1
99* 036-6243-10 CABLE, GENERIC LAMP 2-PIN 1
11 830-8378-68 PLASTIC #68, TRUCK ROOF, DEAD
-
POOL PRO
1
12 237-6154-01 SCREW, 4-40 X 3/8" PTH MS - BLACK 2
13 240-5303-00 4-40 NYLON LOCK NUT 2
9
1
7
8
3
2
6
6
10
2
PIN
RING
4
5
13
11
12
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 535-9847-00 BRACKET, ELEC GATE, RAIL MOUNT 1
2
530-5702-01 CLEVIS PIN W/ RING, 3/16"D X 1-1/2" 1
3
510-7691-67 RIVETED ASSY, TRUCK & BRACKET, GUY PRO 1
4
232-5201-00 SCREW, 6-32 X 3/8" PPH MS SEMS 2
5
242-5001-00 #6 WASHER 2
6
240-5005-00 6-32 NYLON STOP NUT 3
7
535-5372-00 REBOUND HINGE PIN 1
8
535-9682-00 GATE - ELECTRIC (MAGNET) 1
9
550-5510-02 HAT - TRIMMED - RED SB 1
10
520-7000-00 SINGLE FLASH LED BOARD 1
99* 036-6243-10 CABLE, GENERIC LAMP 2-PIN 1
11
830-8378-68 PLASTIC #68, TRUCK ROOF, GUY PRO 1
12
237-6154-01 SCREW, 4-40 X 3/8" PTH MS - BLACK 2
13
240-5303-00 4-40 NYLON LOCK NUT 2

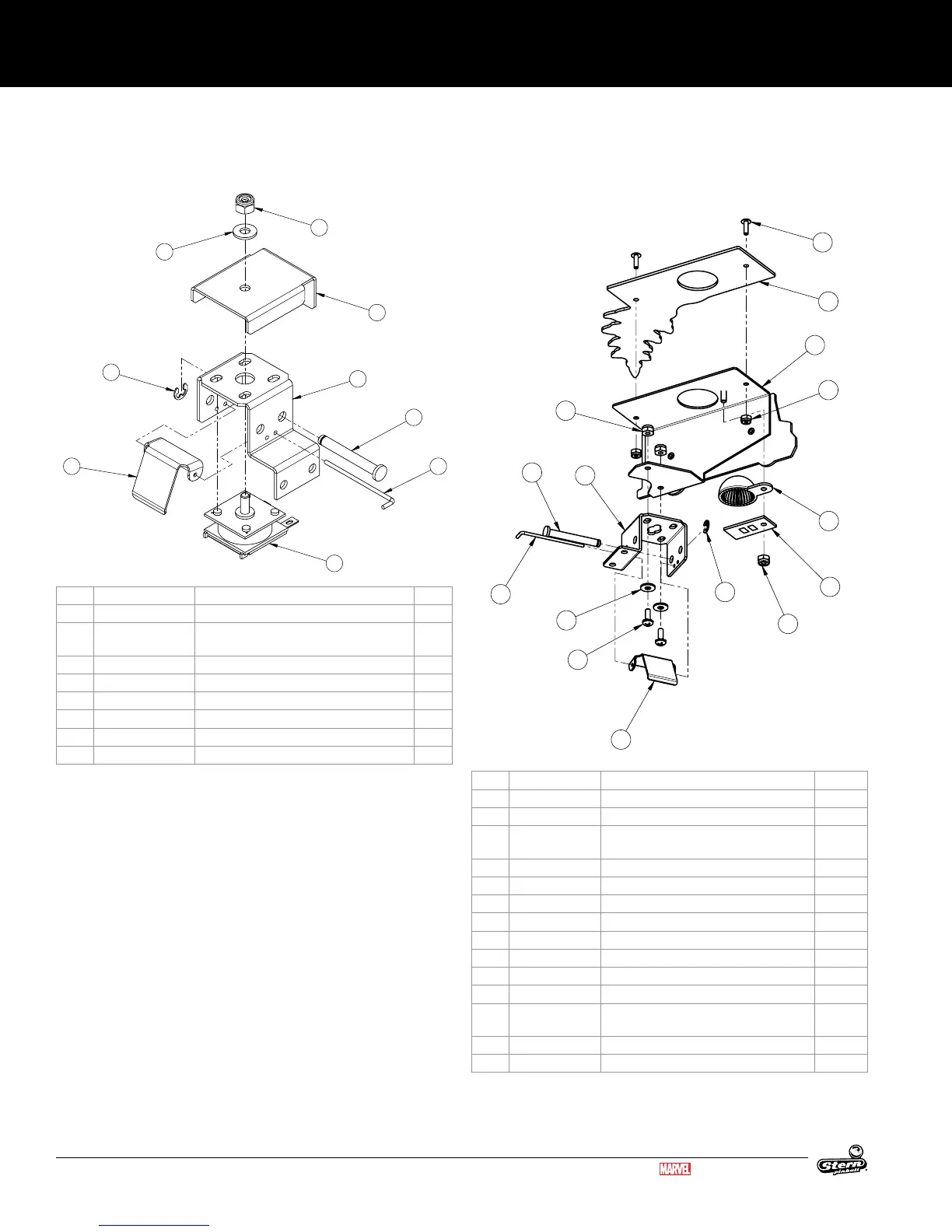

TRUCK & ONE-WAY GATE ASSEMBLY
DEADPOOL PRO
511-1940-01
5.21 ELECTRIC GATE ASSEMBLY
511-5096-00
4
5
3
1
8
6
2
7
8
PIN
RING
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 535-0134-00 BRACKET, ELEC GATE, BK. PANEL MNT 1
2
090-5060-01-ND MINI-COIL W/CORE, ND - 32-1250, YELLOW 1
3
535-9577-00 COVER, ELECTRIC GATE 1
4
242-5005-00 #8 WASHER 1
5
240-5102-00 8-32 NYLON LOCK NUT 1
6
535-5372-00 REBOUND HINGE PIN 1
7
535-9682-00 GATE - ELECTRIC (MAGNET) 1
8
530-5702-01 CLEVIS PIN W/ RING, 3/16"D X 1-1/2" 1
511-5096-00
"LEFT"
511-5096-01
"RIGHT"
ELECTRIC GATE ASSEMBLY, BACK PANEL MOUNT
511-5096-00 / -01
ID Part Number Description Qty
1 535-0134-00 BRACKET, ELEC GATE, BK. PANEL MNT 1
2 090-5060-01-ND MINI-COIL W/CORE, ND - 32-1250,
YELLOW
1
3 535-9577-00 COVER, ELECTRIC GATE 1
4 242-5005-00 #8 WASHER 1
5 240-5102-00 8-32 NYLON LOCK NUT 1
6 535-5372-00 REBOUND HINGE PIN 1
7 535-9682-00 GATE - ELECTRIC (MAGNET) 1
8 530-5702-01 CLEVIS PIN W/ RING, 3/16"D X 1-1/2" 1
5.22 TRUCK & ONE-WAY GATE
ASSEMBLY
511-1940-01
