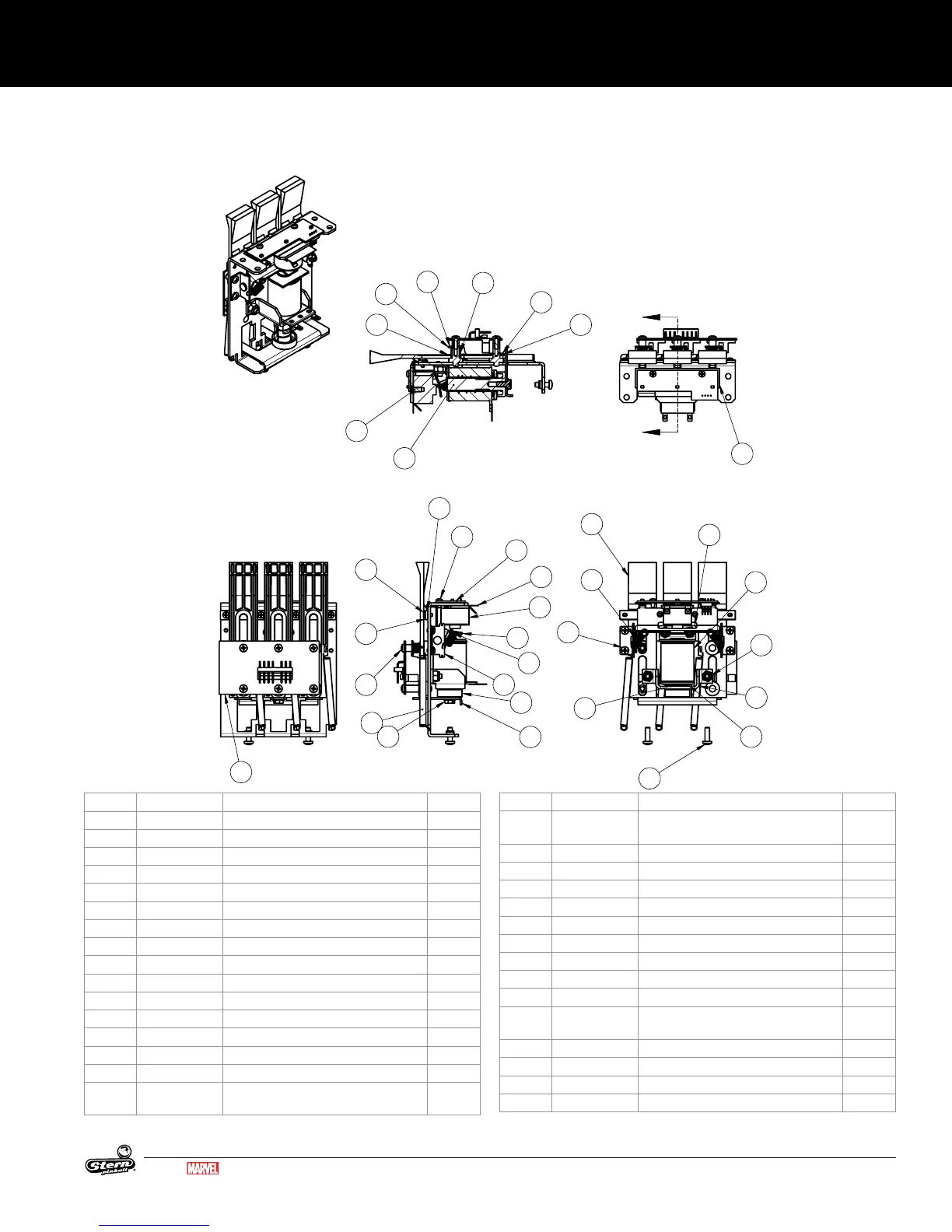

5.20 3-BANK DROP TARGET W/ TRIP ASSEMBLY
500-1083-03-00
9
12
20
4
17
7
6
11
26
25
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 545-6163-03 LEDGE, 3-BANK DROP TARGET 1
2
242-5091-00 WASHER, 1/2 X 17/64 X .03 - DT 9
3
266-5089-00 SPRING COMPRESSION - DT 3
4
545-6305-00 TARGET - ROLLOVER - BLACK 3
5
237-5501-00 SCREW, 6-32 X 3/8" PPH MS ZINC 6
6
240-5102-00 8-32 NYLON LOCK NUT 4
7
269-5002-00 SPRING WASHER 1
8
270-5002-00 RETAINING RING - 1/4" 6
9
266-5020-00 COMPRESSION SPRING-CONICAL 1
10
265-5003-02 TARGET RESET SPRING 3
11
535-9959-00 STOP BRKT 1
12
237-5602-00 SCREW, 8-32 X 1/2" PPH MS ZINC 2
13
237-6169-00 SCREW, 4-40 X 1/4 PPH MS 6
14
530-5757-00 PLUNGER - D.T. ASSY. 1
15
545-5076-01 COIL SLEEVE 1
16
520-5252-13 3 BANK DROP TARGET PCB-OPTO, W/ RIGHT ANGLE CONN 1
17
090-5034-ND COIL 25-1240 - NO DIODE 1
18
515-7771-03 FRAME ASSY, 3-BANK DROP TARGET W/ TRIP 1
19
535-9996-03 LIFT BRACKET - 3 BANK 1
20
535-9995-01 COIL BRACKET 1
21
237-5985-00 SCREW, 10-32 X 3/8" HWH SWAGE 1
22
545-6798-00 SHIM - FICHE PAPER - D.T. SINGLE 2
23
520-7092-00 PCB, 3-BANK DT WHITE LED 1
24
515-9960-00 PIVOT BRACKET - RESET D.T. 2
25
232-5209-00 SCREW, 6-32 X 3/16" PPH SEMS 4
26
545-9794-00 SPLIT BEARING - 4MM 2
27
535-1470-03 RESET ACTUATOR - 3 BANK D.T. 1
28
090-5031-00-ND COIL, 32-1800, NO DIODE 1
29
545-9930-00 FISH PAPER 1
30
237-6030-00 SCREW, 8-32 X 3/8" PFH 82° U/C MS 1
31
265-5002-00
TRIP SPRING - TARGET
2
32
545-9930-01 FISH PAPER, 3-BANK LED PCB 1
1
19
13
5
21
22
23
13
29
28
27
24
31
14
10
A
A
32
SECTION A-A
2
8
2
8
15
3
2
30
16
3-BANK DROP TARGET W/ TRIP ASSEMBLY
DEADPOOL PRO / LE / PREMIUM
500-1083-03-00
ID Part Number Description Qty
1 545-6163-03 LEDGE, 3-BANK DROP TARGET 1
2 242-5091-00 WASHER, 1/2 X 17/64 X .03 - DT 9
3 266-5089-00 SPRING COMPRESSION - DT 3
4 545-6305-00 TARGET - ROLLOVER - BLACK 3
5 237-5501-00 SCREW, 6-32 X 3/8" PPH MS ZINC 6
6 240-5102-00 8-32 NYLON LOCK NUT 4
7 269-5002-00 SPRING WASHER 1
8 270-5002-00 RETAINING RING - 1/4" 6
9 266-5020-00 COMPRESSION SPRING-CONICAL 1
10 265-5003-02 TARGET RESET SPRING 3
11 535-9959-00 STOP BRKT 1
12 237-5602-00 SCREW, 8-32 X 1/2" PPH MS ZINC 2
13 237-6169-00 SCREW, 4-40 X 1/4 PPH MS 6
14 530-5757-00 PLUNGER - D.T. ASSY. 1
15 545-5076-01 COIL SLEEVE 1
16 520-5252-13 3 BANK DROP TARGET PCB-OPTO,
W/ RIGHT ANGLE CONN
1
17 090-5034-ND COIL 25-1240 - NO DIODE 1
18 515-7771-03 FRAME ASSY, 3-BANK DROP TARGET
W/ TRIP
1
19 535-9996-03 LIFT BRACKET - 3 BANK 1
20 535-9995-01 COIL BRACKET 1
21 237-5985-00 SCREW, 10-32 X 3/8" HWH SWAGE 1
22 545-6798-00 SHIM - FICHE PAPER - D.T. SINGLE 2
23 520-7092-00 PCB, 3-BANK DT WHITE LED 1
24 515-9960-00 PIVOT BRACKET - RESET D.T. 2
25 232-5209-00 SCREW, 6-32 X 3/16" PPH SEMS 4
26 545-9794-00 SPLIT BEARING - 4MM 2
27 535-1470-03 RESET ACTUATOR - 3 BANK D.T. 1
28 090-5031-00-
ND
COIL, 32-1800, NO DIODE 1
29 545-9930-00 FISH PAPER 1
30 237-6030-00 SCREW, 8-32 X 3/8" PFH 82° U/C MS 1
31 265-5002-00 TRIP SPRING - TARGET 2
32 545-9930-01 FISH PAPER, 3-BANK LED PCB 1
