Stern Pinball Deadpool PRO - Katana Trough Assembly; Katana Lock down Post Assembly

44
PARTS REFERENCE
DEADPOOL PRO MANUAL 500-55K1-01
© MARVEL
MARVEL.COM

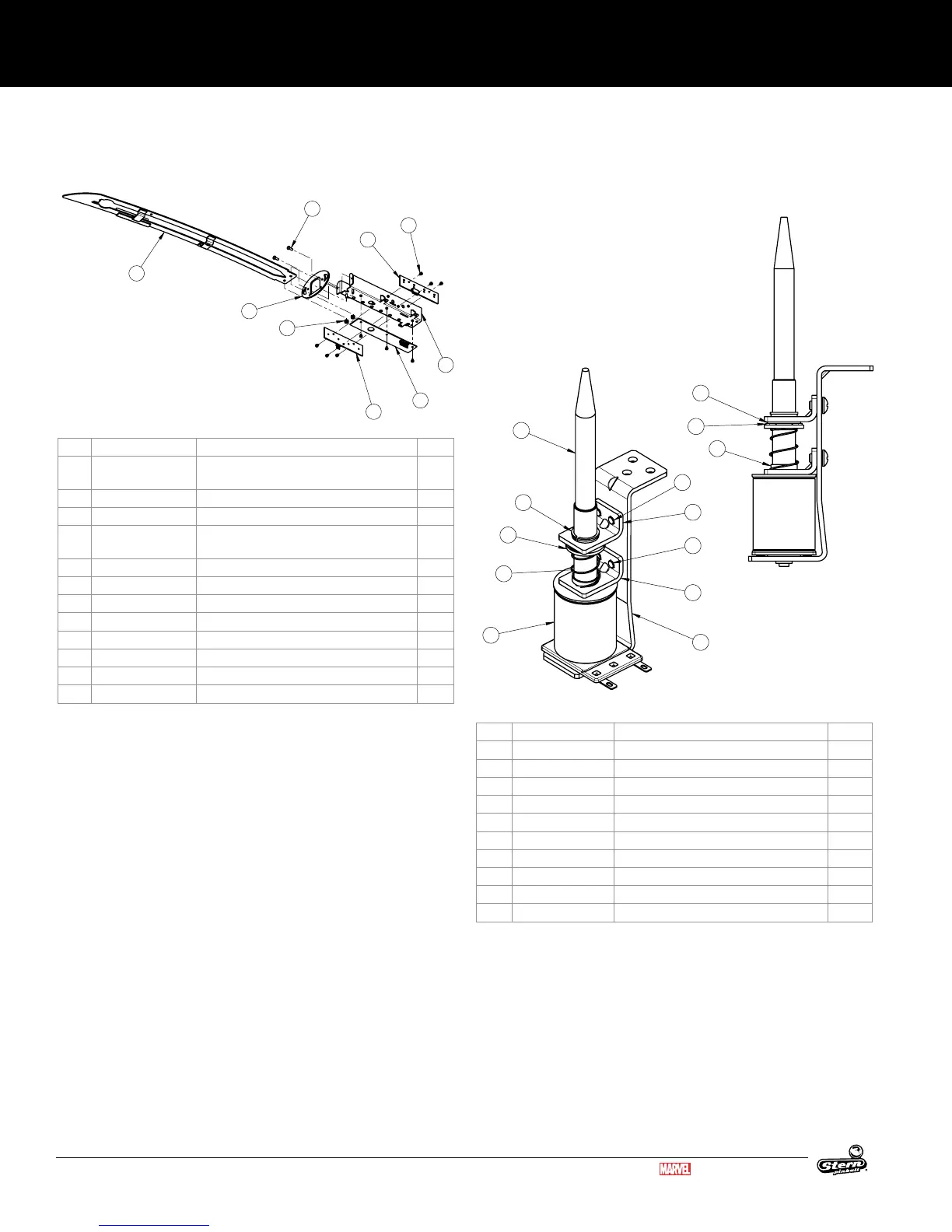

5.19 KATANA LOCK DOWN POST
ASSEMBLY
500-6752-02
1
4
2
2
8
10
3
7
9
8
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 515-7132-00 BALL LOCK MTG. BRKT SUB-ASSY 1
2
535-5203-03 COIL RETAINING BRACKET 2
3
545-5418-01 NYLINER - PLASTIC, 7/16" 1
4
090-5044-ND COIL 26-1200 - NO DIODE 1
5
545-5411-00 COIL SLEEVE 1
6
270-5005-00 RETAINING E-RING, 7/16" SHAFT OD 1
7
266-5020-00 COMPRESSION SPRING-CONICAL 1
8
232-5300-00 SCREW, 8-32 X 1/4" PPH SEMS 4
9
242-5081-00 WASHER - NYLON .75 OD x .44 ID 1
10
515-7350-00 DOWN-POST PLUNGER SUB-ASSY 1
3
6
5
KATANA LOCK DOWN POST ASSEMBLY
DEADPOOL PRO / LE / PREMIUM
500-6752-02
ID Part Number Description Qty
1 515-7132-00 BALL LOCK MTG. BRKT SUB-ASSY 1
2 535-5203-03 COIL RETAINING BRACKET 2
3 545-5418-01 NYLINER - PLASTIC, 7/16" 1
4 090-5044-ND COIL 26-1200 - NO DIODE 1
5 545-5411-00 COIL SLEEVE 1
6 270-5005-00 RETAINING E-RING, 7/16" SHAFT OD 1
7 266-5020-00 COMPRESSION SPRING-CONICAL 1
8 232-5300-00 SCREW, 8-32 X 1/4" PPH SEMS 4
9 242-5081-00 WASHER - NYLON .75 OD x .44 ID 1
10 515-7350-00 DOWN-POST PLUNGER SUB-ASSY 1
5.18 KATANA TROUGH ASSEMBLY
511-1914-00
4
3
9
6
1
8
7
5
2
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 515-1920-00 BRACKET, KATANA BALL TROUGH, GUY 1
2
545-1039-00 PLATE, KATANA HILT, GUY 1
3
237-6307-06 SCREW, 6-32 X 3/8" PAN TORX SS 2
4
515-1921-00 WELDMENT, KATANA BLADE RAMP, GUY 1
5
240-5005-00 6-32 NYLON STOP NUT 2
6
520-7064-00 PCB, 4-OPTO RECEIVER 1
7
520-7065-00 PCB, 4-OPTO TRANSMITTER 1
8
520-8041-00 PCB, KATANA BALL LOCK 7-LED 1
9
237-5884-00 SCREW, 4-40 X 3/16" PPH SEMS 9
97* 036-6274-15-K2 CABLE, TROUGH OPTO EMITTER 1
98* 036-6274-16-K2 CABLE, TROUGH OPTO RECEIVER 1
99* 036-6274-21-K2 CABLE, KATANA TROUGH LEDS 1
KATANA TROUGH ASSEMBLY
DEADPOOL PRO / LE / PREMIUM
511-1914-00
ID Part number Description Qty
1 515-1920-00 BRACKET, KATANA BALL TROUGH,
DEADPOOL
1
2 545-1039-00 PLATE, KATANA HILT, DEADPOOL 1
3 237-6307-06 SCREW, 6-32 X 3/8" PAN TORX SS 2
4 515-1921-00 WELDMENT, KATANA BLADE RAMP,
DEADPOOL
1
5 240-5005-00 6-32 NYLON STOP NUT 2
6 520-7064-00 PCB, 4-OPTO RECEIVER 1
7 520-7065-00 PCB, 4-OPTO TRANSMITTER 1
8 520-8041-00 PCB, KATANA BALL LOCK 7-LED 1
9 237-5884-00 SCREW, 4-40 X 3/16" PPH SEMS 9
97* 036-6274-15-K2 CABLE, TROUGH OPTO EMITTER 1
98* 036-6274-16-K2 CABLE, TROUGH OPTO RECEIVER 1
99* 036-6274-21-K2 CABLE, KATANA TROUGH LEDS 1
