5.3 PLAYFIELD ASSEMBLIES, TOP

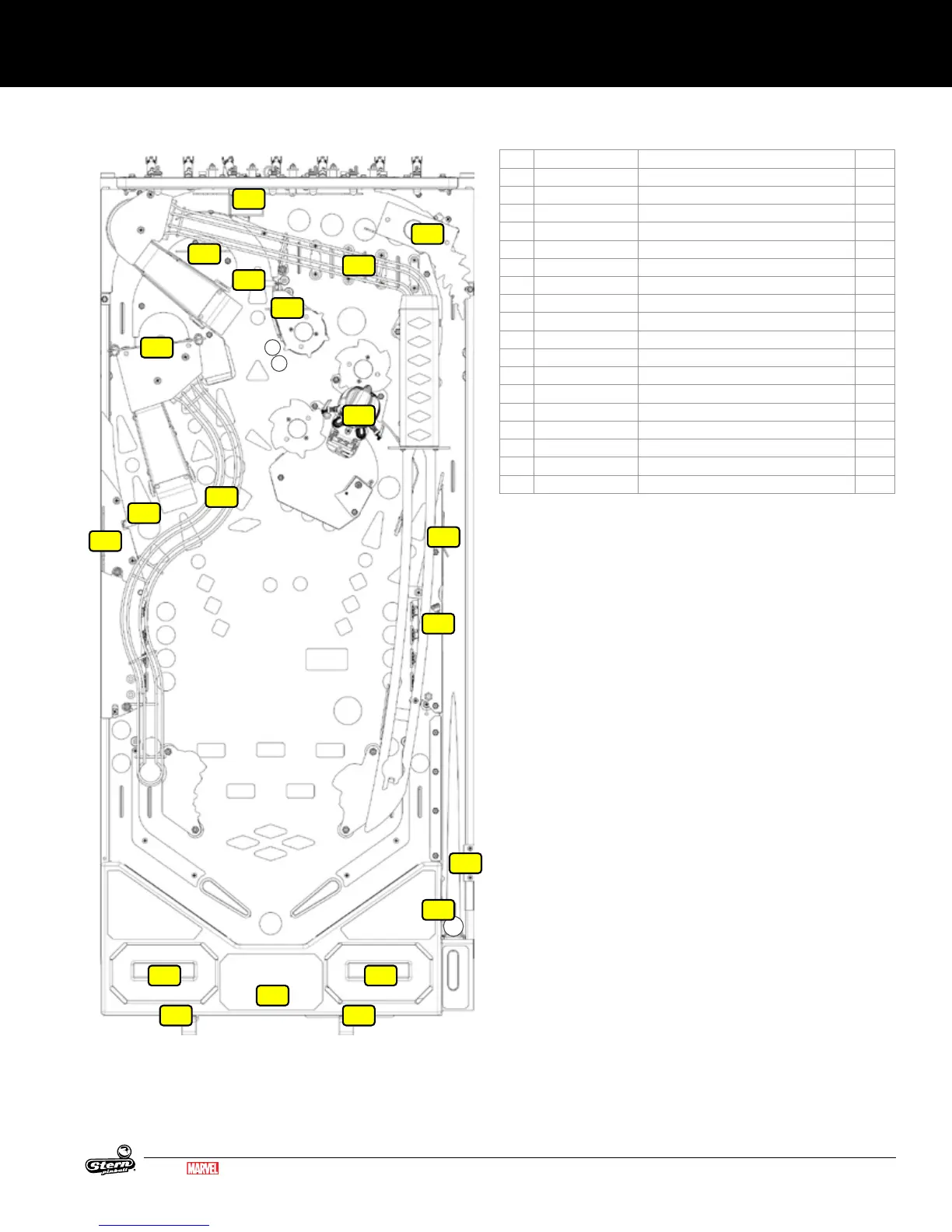

Figure 5.3.1. Major playeld assemblies, Top locations.
1
2 3
6
12
7
4
9
13
14
15
4
5
7
16
17
18
8
10
11
ID Part Number Description Qty
1 545-5995-02 Bottom Arch Assembly 1
2 755-51K1-12-Y Instruction Card 1
3 755-5400-02-Y Coin Card (USA) 1
4 535-8385-00 Welded Hanger Bracket 2
5 260-5000-00 Pinballs 6
6 500-6815-00 Bubble Level Assembly 1
7 511-7877-00 Spinner Bracket 2
8 511-1940-01 Taco Truck Electric Gate 1
9 511-5096-00-GE Electric Gate 1
10 515-1922-00 Left Wire Ramp 1
11 515-1923-00 Right Wire Ramp 1
12 830-8378-76 Colossus Plastic 1
13 830-8378-75 Wolverine Plastic 1
14 830-8378-73 Dazzler 1
15 830-8378-77 Domino 1
16 511-7801-47 Deadpool Hammock 1
17 511-1954-00 Lil Deadpool Bash Toy 1
18 515-1895-01 Spotlight 1
