Stern Pinball Deadpool PRO - Power Distribution Board; Power Plug Wiring

32
ELECTRONIC PINOUTS AND SCHEMATICS
DEADPOOL PRO MANUAL 500-55K1-01
© MARVEL
MARVEL.COM

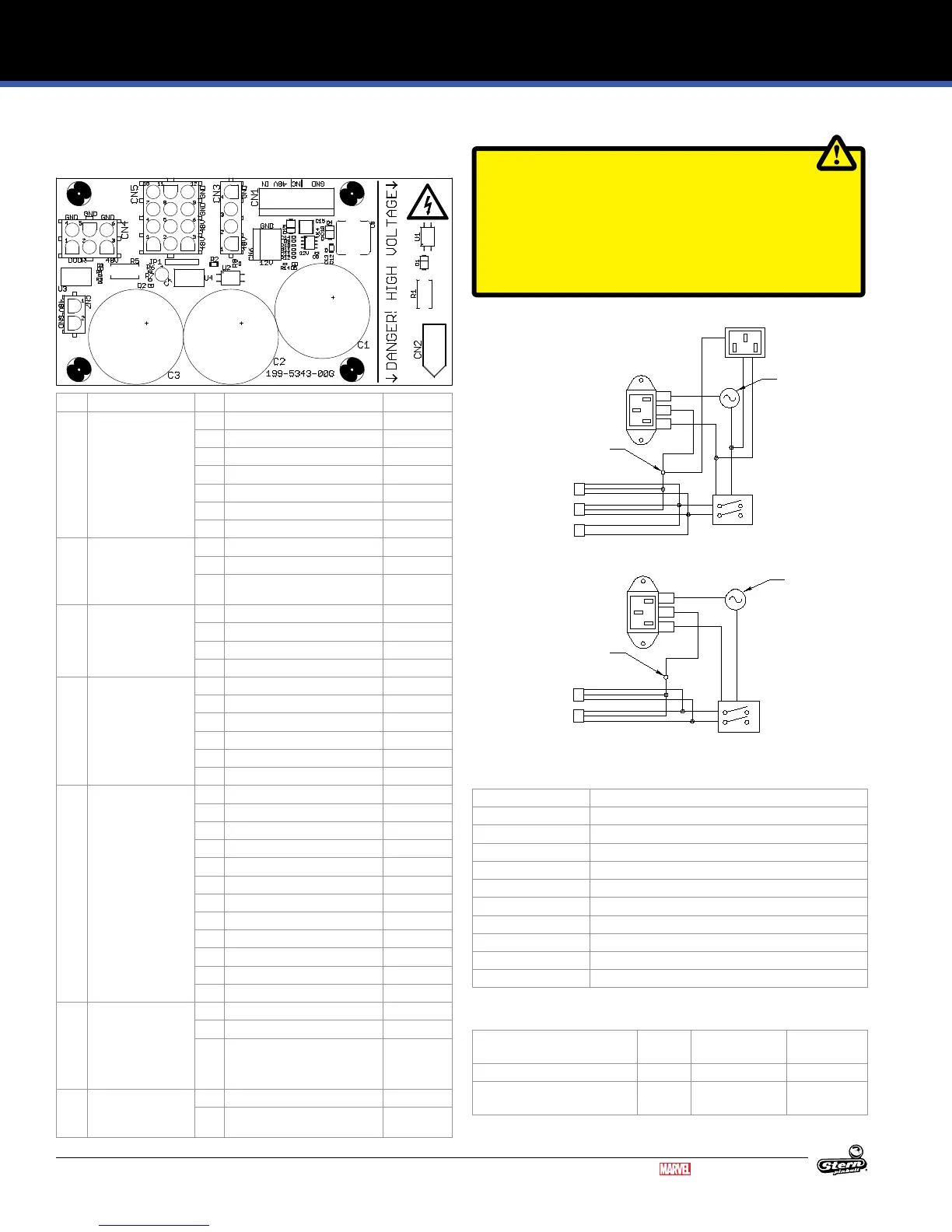

4.16 POWER DISTRIBUTION BOARD
520-5343-01
GROUNDING
STUD
POWER SUPPLY
POWER DIST.
INTERNATIONAL
XXX-XXXX-XX
05/02/14
1:1
SPIKE BB
1.00" 2.00"
LINE FILTER
ON/OFF SW
FUSE
L
G
N
*MFG NOTES:
1. ALL DISCREET WIRE IS 16AWG 600V, UL 1015, CSA TYPE TEW.
2. GROUND WIRE FROM LINE FILTER IS TO BE MOUNTED FIRST ON GROUNDING STUD
AND SECURED WITH NUT. ALL OTHER GROUNDS MAY THEN BE ATTACHED TO
GROUNDING STUD.
3. CABLE ARE TO BE MANUFACTURED IN A UL CERTIFIED FACILITY. VENDOR IS TO
PROVIDE A SIGNED U.L. CERTIFICATE OF COMPLIANCE WITH FIRST ARTICLE.
INTERNATIONAL
GROUNDING
STUD
POWER SUPPLY
POWER DIST.
BILL VALIDATOR
NORTH AMERICA
XXX-XXXX-XX
05/02/14
1:1
AC WIRING DIAGRAM-N. AMERICA
1.00" 2.00"
LINE FILTER
NEMA 5-15 PREWIRED OUTLET
ON/OFF SW
FUSE
(USER INSTALLED OPTION)
L
G
N
*MFG NOTES:
1. ALL DISCREET WIRE IS 16AWG 600V, UL 1015, CSA TYPE TEW.
2. NEMA 5-15 OUTLET HAS 14AWG 600V WIRE, UL 1015, CSA TYPE TEW.
3. GROUND WIRE FROM LINE FILTER IS TO BE MOUNTED FIRST ON GROUNDING STUD
AND SECURED WITH NUT. ALL OTHER GROUNDS MAY THEN BE ATTACHED TO
GROUNDING STUD.
4. CABLE ARE TO BE MANUFACTURED IN A UL CERTIFIED FACILITY. VENDOR IS TO
PROVIDE A SIGNED U.L. CERTIFICATE OF COMPLIANCE WITH FIRST ARTICLE.
SPIKE BB
NORTH AMERICA
LINE FUSES
LINE CORDS
Line Voltage (Region) Fuse
Current
Type Part Number
120V (North America) 8 A Slow Blow MDL 200-5000-05
220/240v (Europe, Australia,
UK)
5 A Slow Blow MDL 200-5000-01
CAUTION
TO MAINTAIN SAFETY, GROUND WIRE FROM LINE FILTER
IS TO BE MOUNTED FIRST ON GROUNDING STUD AND
SECURED WITH NUT. ALL OTHER GROUNDS MAY THEN BE
ATTACHED TO GROUNDING STUD.
REPLACE ALL FUSES WITH CORRECT CURRENT RATINGS!
Part Number Description
034-6012-00 Line Cord, 3m, 5-15P USA
034-6012-01 Line Cord, 3m, CEE77P EUROPE
034-6012-02 Line Cord, 3m, BS1363P United Kingdom
034-6012-03 Line Cord, 3m, AS-NZS4417P Australia
034-6012-04 Line Cord, 3m, CEI23-16P Italy
034-6012-05 Line Cord, 3m, SEV1011P Switzerland
034-6012-06 Line Cord, 3m, JIS8303P Japan
034-6012-07 Line Cord, 3m, SI32P Israel
034-6012-08 Line Cord, 3m, BS546P S Africa, India
034-6012-09 Line Cord, 3m, IS6538P S. India
4.17 POWER PLUG WIRING
ID Type Pin Description Wire Color
CN1 .156 in 7-Pin
Housing
Plug: 045-5259-07
Pin: 055-5331-00
Key: 060-5013-00
1 +48 VDC IN GRY
2 +48 VDC IN GRY
3 +48 VDC IN GRY
4 Key (n/c) -
5 Ground BLK
6 Ground BLK
7 Ground BLK
CN2 .093 in 3-Pos Plug
Plug: 045-5003-03
Pin: 055-5013-09
1 Line In (100-240 VAC) BLK
2 Neutral WHT
3 Earth Ground GRN
CN3 0.084 in 4-Pos Plug
Plug: 045-5200-04
Pin: 055-5033-08
1 +48 VDC to CPU Node GRY
2 Door Interlock Switch Status GRY/RED
3 Line Voltage Status VIO
4 Ground BLK
CN4 0.084 in 6-Pos Plug
Plug: 045-5200-06
Pin: 055-5033-08
1 Door Interlock Switch +48V -
2 Door Interlock Switch +48V -
3 Switched 48V Out (to Node 1) GRY/YEL
4 Door Interlock Return Ground -
5 Door Interlock Return Ground -
6 Ground (to Node 1) BLK
CN5 0.084 in 12-Pos
Plug
Plug: 045-5200-12
Pin: 055-5033-08
1 Switched 48V Node Power GRY
2 Switched 48V Node Power GRY
3 Switched 48V Node Power GRY
4 Switched 48V Node Power GRY
5 Switched 48V Node Power GRY
6 Switched 48V Node Power GRY
7 Node Ground BLK
8 Node Ground BLK
9 Node Ground BLK
10 Node Ground BLK
11 Node Ground BLK
12 Node Ground BLK
CN6 .156 in 3-Pos
Plug: 045-5259-03
Pin:055-5331-00
(18awg)
1 Ground -
2 Ground -
3 +12VDC -
CN7 .084 2-Pos
Plug: 045-5200-02
Pin:055-5033-08
1 +48 VDC to CPU Node -
2 Ground -
