Z001019/0_6_July 2008 Page ENGINE - 63
01 ENGINE
SERVICE MANUAL MARINE ENGINES
01.06 ENGINE HOUSING, OIL PUMP,
OIL SUCTION PIPE
01.06.01 Replace engine housing
Preparation: disconnect battery
close fuel feed- and return line,
empty closed cooling circuit,
refer to 05.00.02.01.
suck off motor oil
dismantle wiring harness, 06.05.02.
dismantle E-box
dismantle exhaust manifold - heat
exchanger, refer to 05.01.02.

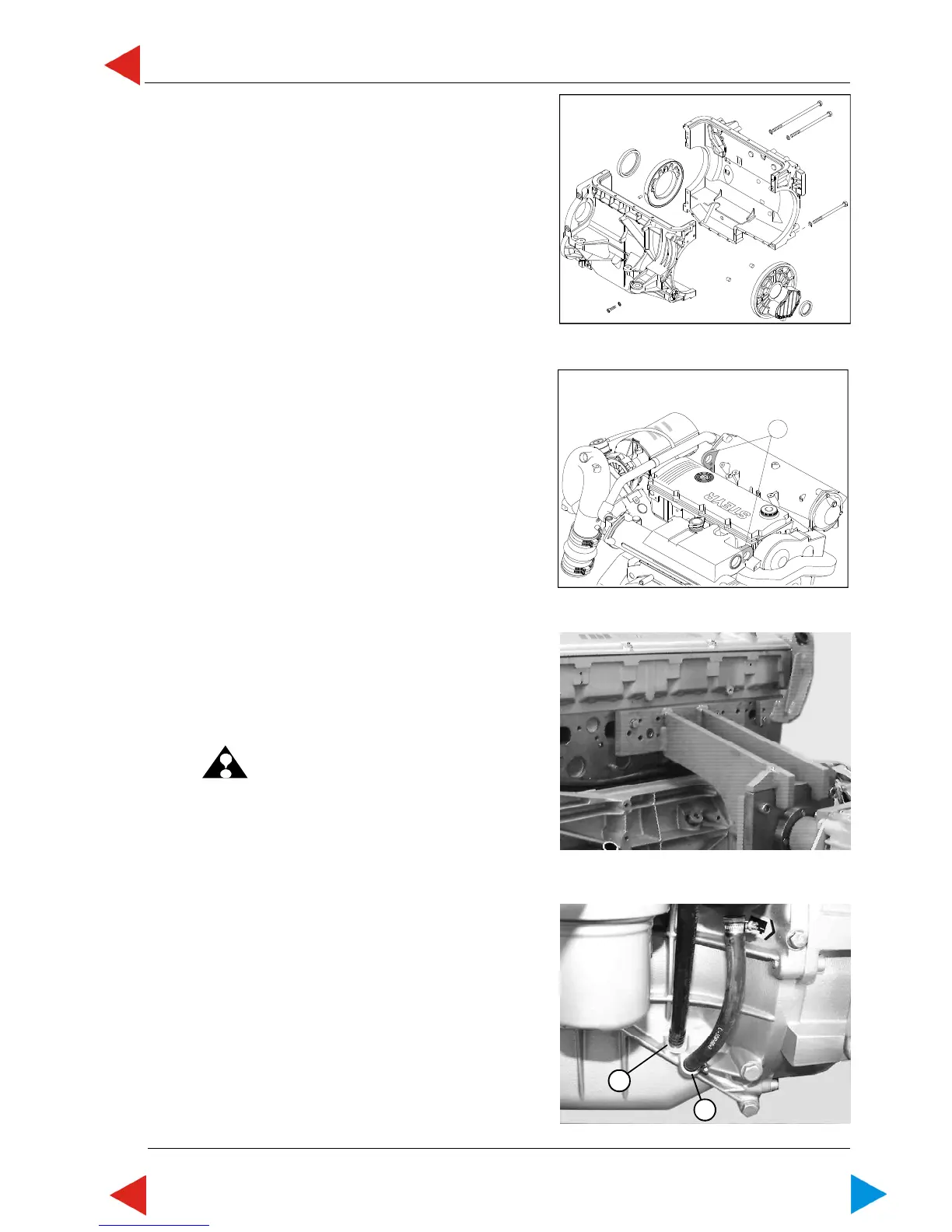

1 Lock lifting chain special tool No. VR00103/0 onto the
two lifting shackles (ill.2/1).
2 Lift engine with special tool No. VR00130/0 and
crane (min. 3500 N) and mount it on No.VR00102/0
and trestle No. VR00101/0 by means of four hexagon
screws M8x30 (SW13).
ATTENTION:thread screwing depth 1,5xD.
3 Dismantle oil dipstick tube (ill.4/pos.1) and ventilation
hose (ill.4/pos.2).
4 Dismantle tandem cooler, refer to 05.01.03.
06.01 ill.4
06.01 ill.3
06.01 ill.2
06.01 ill.1
1
1
2
