06 ELECTRICAL SYSTEM
Page ELECTRICAL SYSTEM - 6 Z001019/0_6_July 2008
SERVICE MANUAL MARINE ENGINES
For 6 cyl. engines only (old version till eng. no. 68224418)
Model ....................................................................................................PRESTOLITE LEECE-Neville
..............................................................................................................8RG2043
Minimum speed for voltage generation ................................................. 580 1/min
Controlled voltage range ....................................................................... 13,9 - 14,2 V
Output current ....................................................................................... 90 A
Governor ............................................................................................... integrated base governor
Charge capacity
at 750 r.p.m. .......................................................................................... approx. 34 A
at 2500 r.p.m......................................................................................... maximum charge capacity
Condensor capacity .............................................................................. 2,2 µF

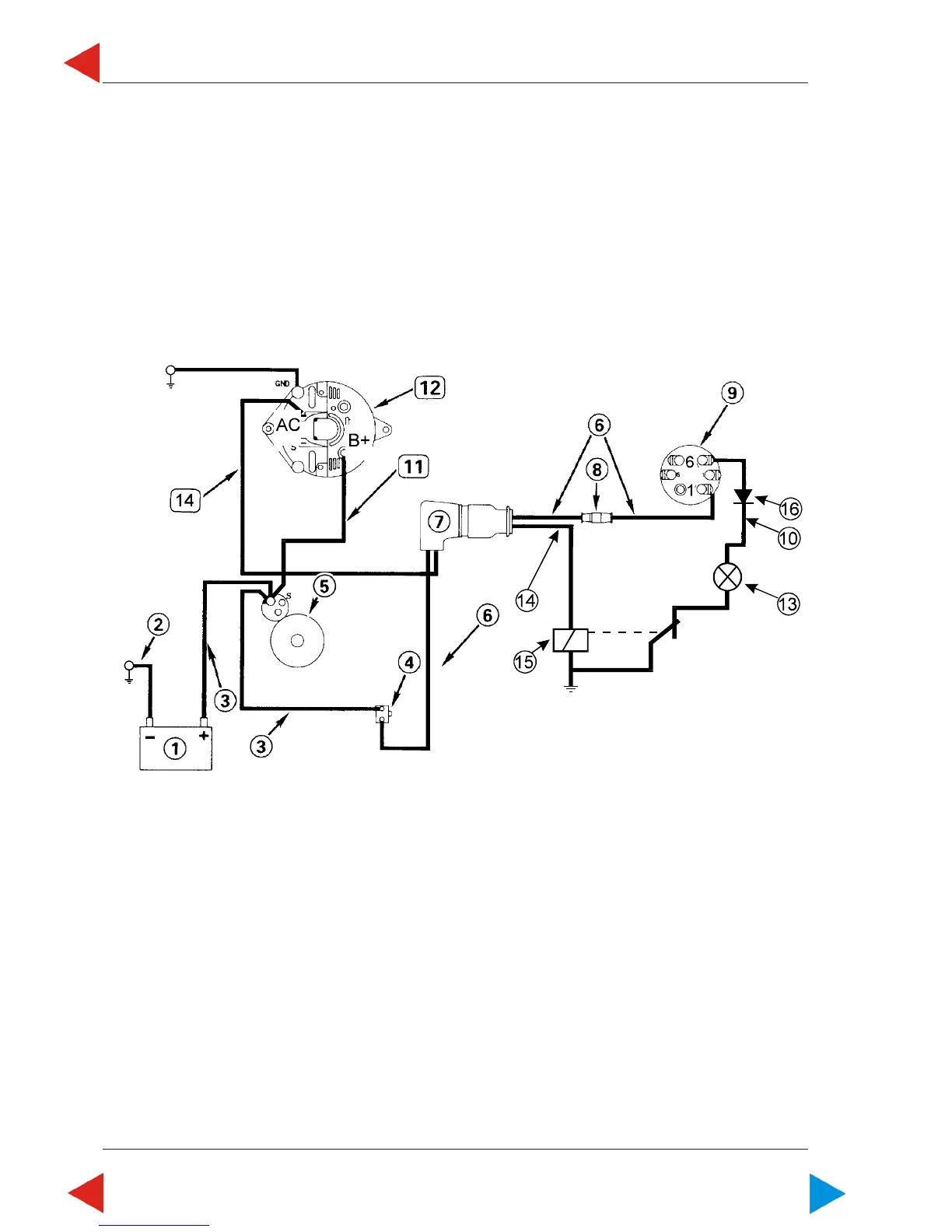

01.03 ill.1
Charging circuit - scheme
1...... battery
2 .....Z2, ground connection on engine
3..... red
4..... fuse 50 A
5..... starter engine
6..... red
7 ..... plug (engine electrics/instrument cable)
8..... fuse 10 A
9..... starter key lock
10.....15000-xx
11.....red 16 mm²
12.....generator
13.....charging controll (L1)
14.....61000-02 (18-pole connecting cable No.: 11)
15.....relay K10
16.....blocking diode (1N4007)
06.01.03 Technical data of alternator
