Z001019/0_6_July 2008 Page ENGINE - 81
01 ENGINE
SERVICE MANUAL MARINE ENGINES
01.09 AUXILIARY DRIVE, IN FRONT (PTO)
1 Disconnect battery cables.
2 Remove protective cover.
For 4 cyl. engines (item 3-4)
3 Loosen 3 hexagon screws (SW13) (ill.1/pos.1) and
remove drive shaft.
4 Loosen 3 hexagon screws (SW13) (ill.1/pos.2) and
remove flange ring.
For 6 cyl. engines (item 5-7)
5 Loosen 6 hexagon screws (SW10) (ill.2/pos.1) and
remove elastic shaft with adapter plate.
6 Loosen 3 hexagon screws (SW13) and 3 hexagon
nuts (SW13) (ill.2/pos.2).
Remove adapter plate from elastic shaft.
7 Assembly is done in reverse order.

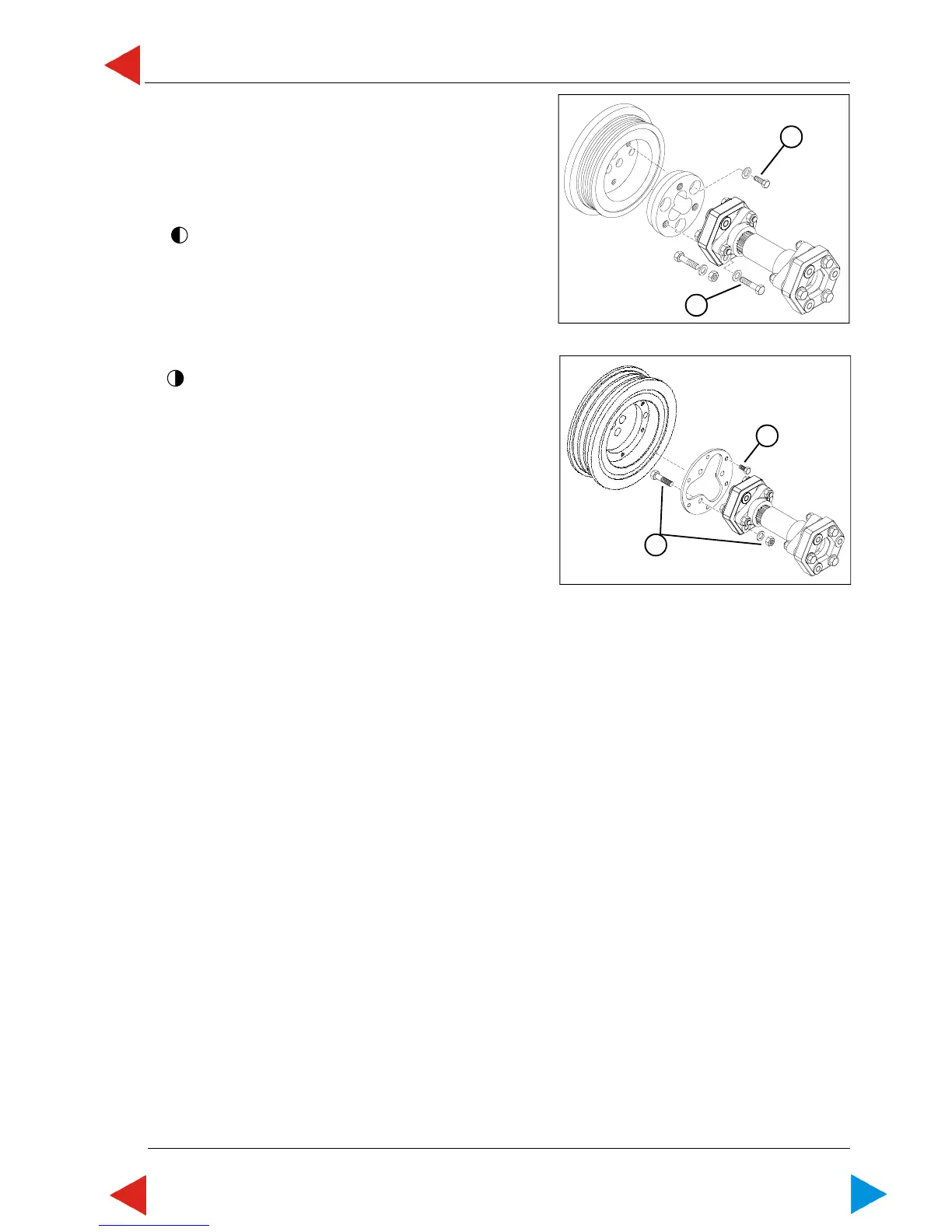

09.01 ill.1
09.01 ill.2
1
2
1
2
