Z001019/0_6_July 2008 Page COOLING SYSTEM - 31
SERVICE MANUAL MARINE ENGINES
05 COOLING SYSTEM
05.04 COOLANT PUMP

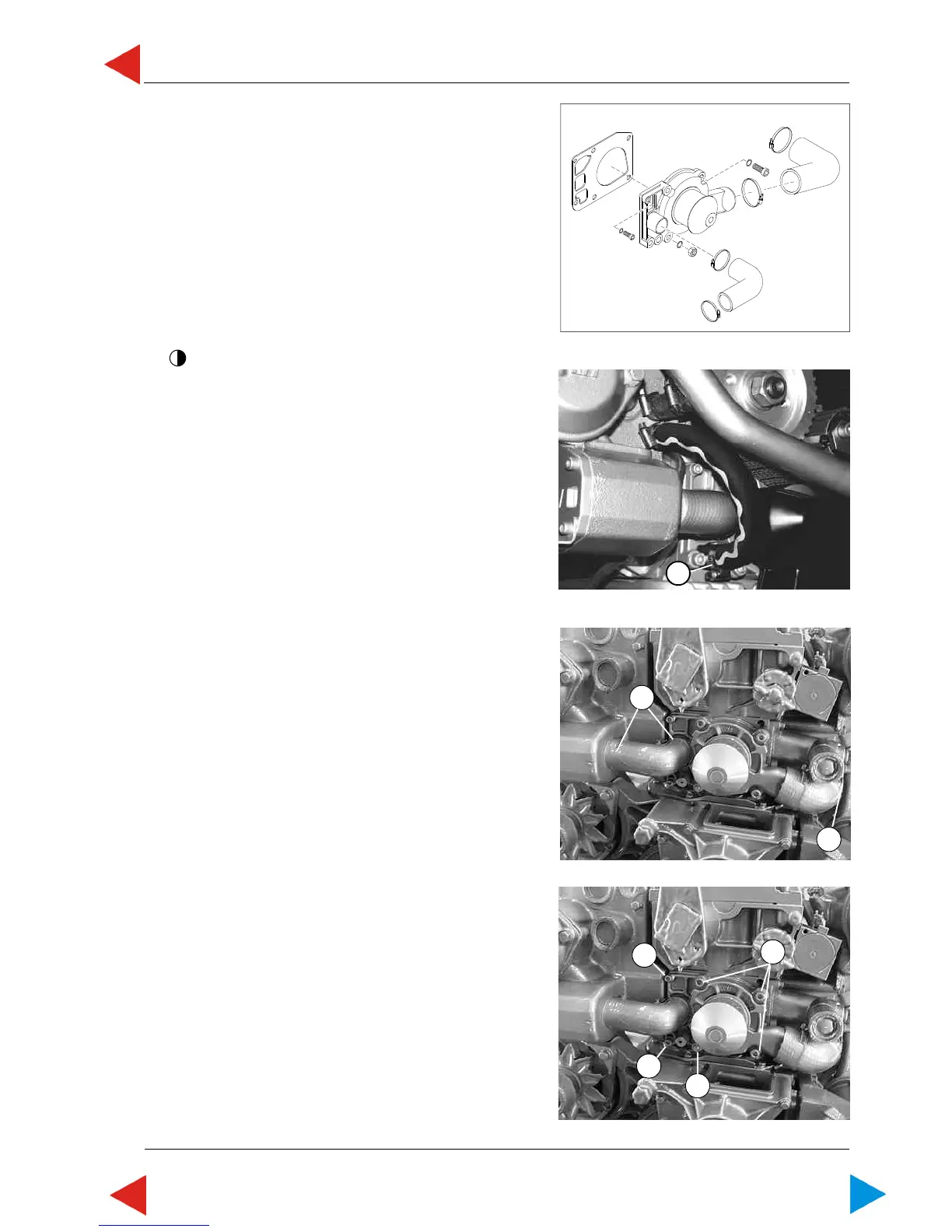

05.04.01 Exchange coolant pump
Preparation: remove timing belt, see 01.00.04
drain closed cooling system,
refer to 05.00.07, item 7
1 For 6 cyl. engines only
Loosen hose clamp (ill.2/pos.1) and remove hose.
2 Loosen hose clamps (SW6) and remove hose
between thermostat housing and water pump (ill.3/
pos.1)
3 Loosen hose clamp of hose elbow (ill.3/pos.2) at oil
cooler side.
4 Loosen all screws (ill.4) and hexagon nut of water
pump (ill.4/pos.3).
5 Loosen water pump by slight knocking with plastic
hammer and remove hose elbow.
04.01 ill.3
04.01 ill.1
04.01 ill.4
1
1
2
3
1
2
1
04.01 ill.2
