01 ENGINE
Page ENGINE - 74 Z001019/0_6_July 2008
SERVICE MANUAL MARINE ENGINES

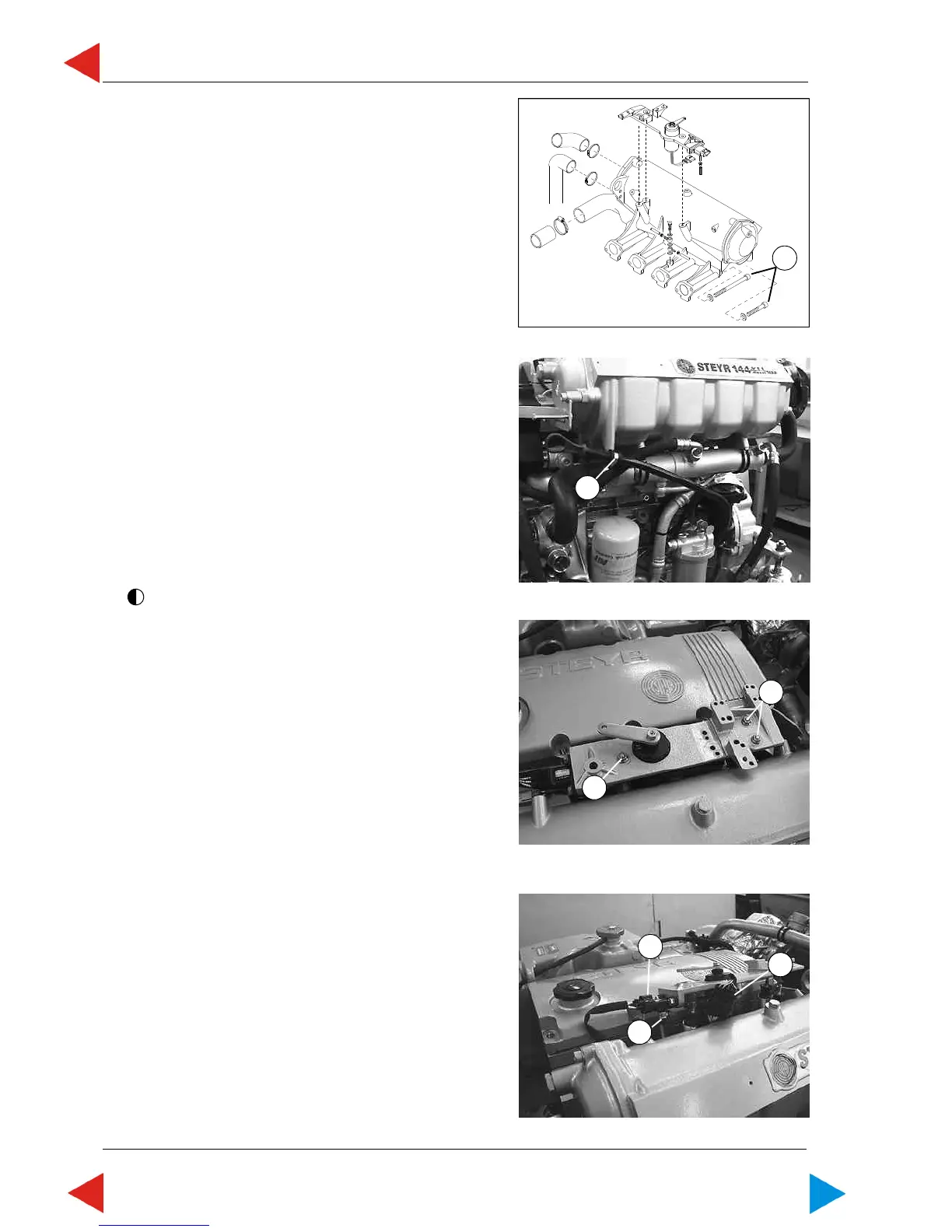

01.08 INTERCOOLER
01.08.01 Remove intercooler
Preparation: remove air filter, 03.04.01
1 Unscrew hexagon screw (ill.2/pos.1) (SW10) of
clamp of oil dipstick tube, carefully turn away oil
dipstick tube.
2 Remove tandem cooler, refer to 05.01.06
or
remove triple cooler, refer to 05.01.08
or
For M16 - 246 only: Remove additional
oil cooler, refer to 05.01.07
For 4. cyl. engines (item 3-8)
3 Unscrew 3 hexagon nuts (ill.3/pos.1) of shift plate
and remove.
4 Loosen plug connections of boost pressure sensor
(ill.4/pos.1), loosen accelerator potentiometer (ill.4/
pos.2).
5 Loosen hose clamp (ill.4/pos.3). Take off hose and
remove shift plate.
08.01 ill.3
08.01 ill.2
08.01 ill.1
08.01 ill.4
C
1
C
1
C
1
3
A2
1
C
1
