03.05 TURBOCHARGER

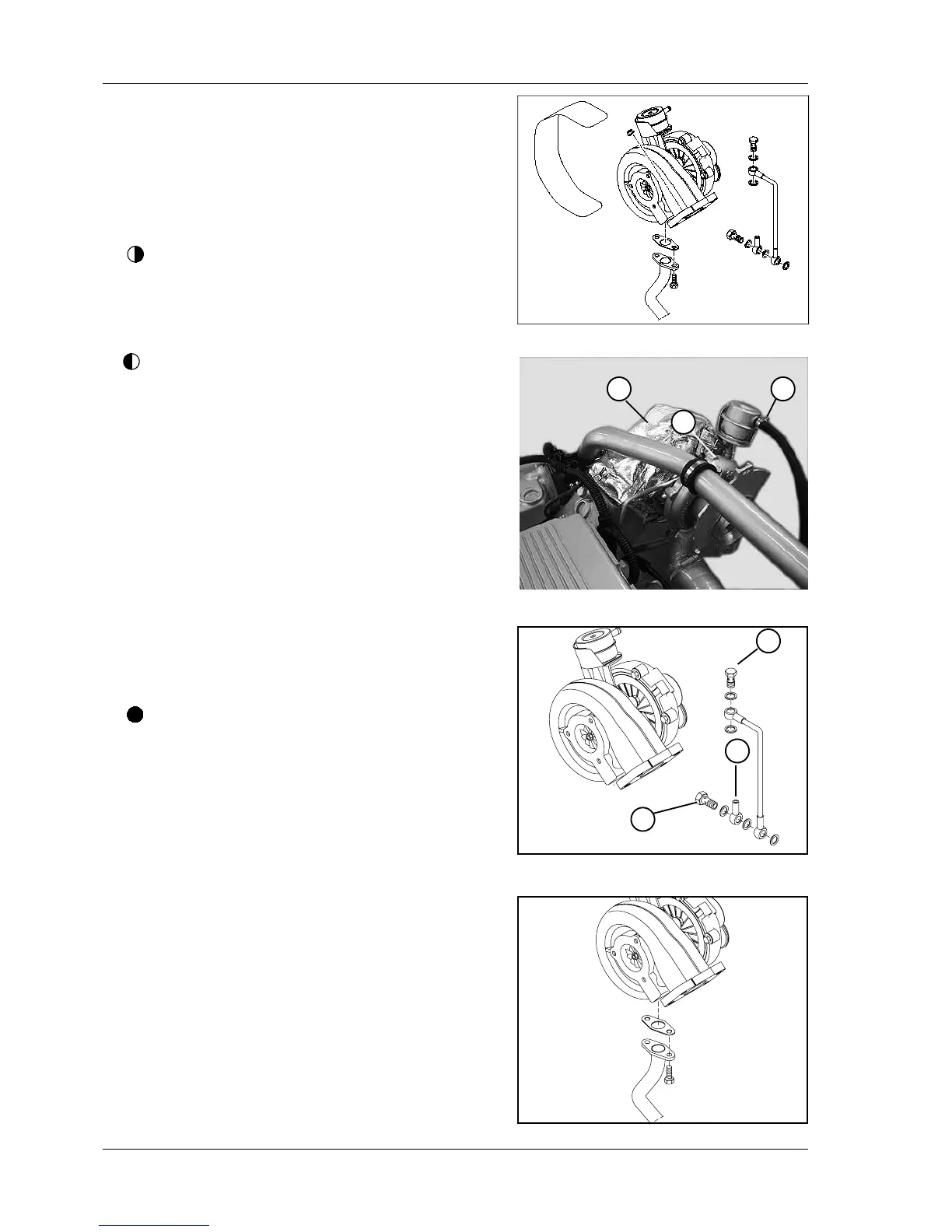

03.05.01 Replace turbocharger
1 Removeairlter,referto03.04.01
2 Remove high-riser, refer to 04.01
3
For 6 cyl. engines only
Drain coolant from closed cooling circuit,
refer to 05.00.07
For 4 cyl. engines only (item 4-7)
4 Loosen fastenings of heat protection. Remove heat
protection (ill.2/pos.1).
5 Loosen hose clamp (ill.2/pos.2) and remove hose for
air charge pressure box.
6 Loosen screw (ill.2/pos.3) for raw-water pipe support
(SW10).
7 Loosen hollow screw (ill.3/pos.1) of oil feed line on
turbocharger.
8 Remove plug of oil pressure switch (ill.3/pos.2).
9 Loosen hollow screw (ill.3/pos.3) of oil feed line on
motorblock. Dispose Cu-sealing rings.
10 Loosen two hexagon screws (ill.4) of oil return line.
Dispose seal.
05.01 ill.1
05.01 ill.2
2
3
1
3
1
2
05.01 ill.3
05.01 ill.4
