Z001019/0_6_July 2008 Page ELECTRICAL SYSTEM - 5
06 ELECTRICAL SYSTEM
SERVICE MANUAL MARINE ENGINES

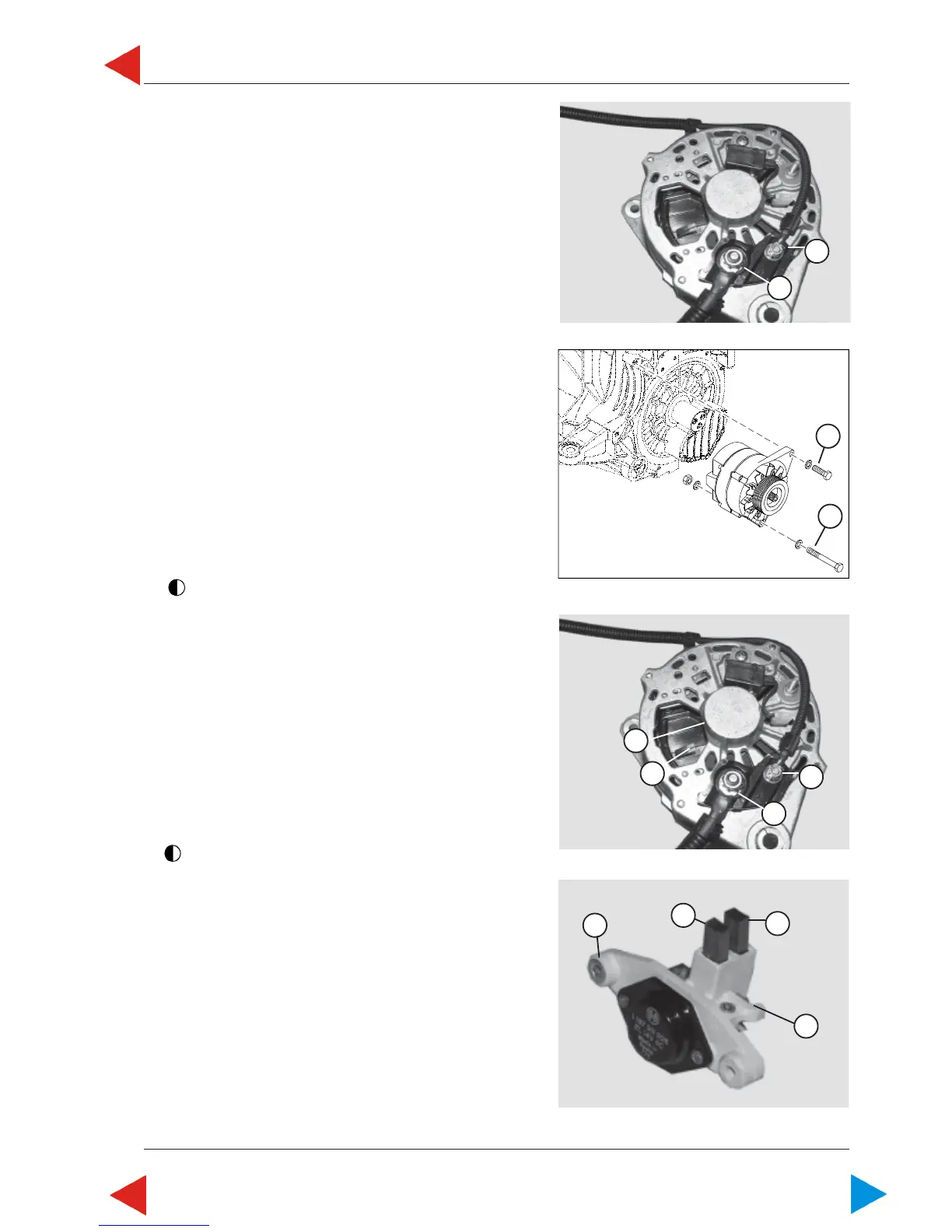

06.01.02 Replace alternator
Preparatory work: turn off engine, disconnect battery
1 Disconnect two cables (ill. 1/pos.1+2).
2 Remove belt.
3 Loosen screws (ill.2/pos.1+2), remove alternator.
NOTE: Assembly is done in reverse order.
For 4 cyl. engines only
Connections ill.3/1 B+ battery
acc. illustration 3:
ill.3/2 D+ charging control (L1)
ill.3/3 DF D-field (rotor winding)
ill.3/4 D+ on governor
For 4 cyl engines only
Governor ill.4/1 B-
acc. illustration 4:
ill.4/2 DF
ill.4/3 D+
ill.4/4 D+
2
01.02 ill.1
01.02 ill.2
1
2
1
01.02 ill.3
2
1
3
4
01.02 ill.4
1
4
2
3
