Z001019/0_6_July 2008 Page COOLING SYSTEM - 3
SERVICE MANUAL MARINE ENGINES
05 COOLING SYSTEM

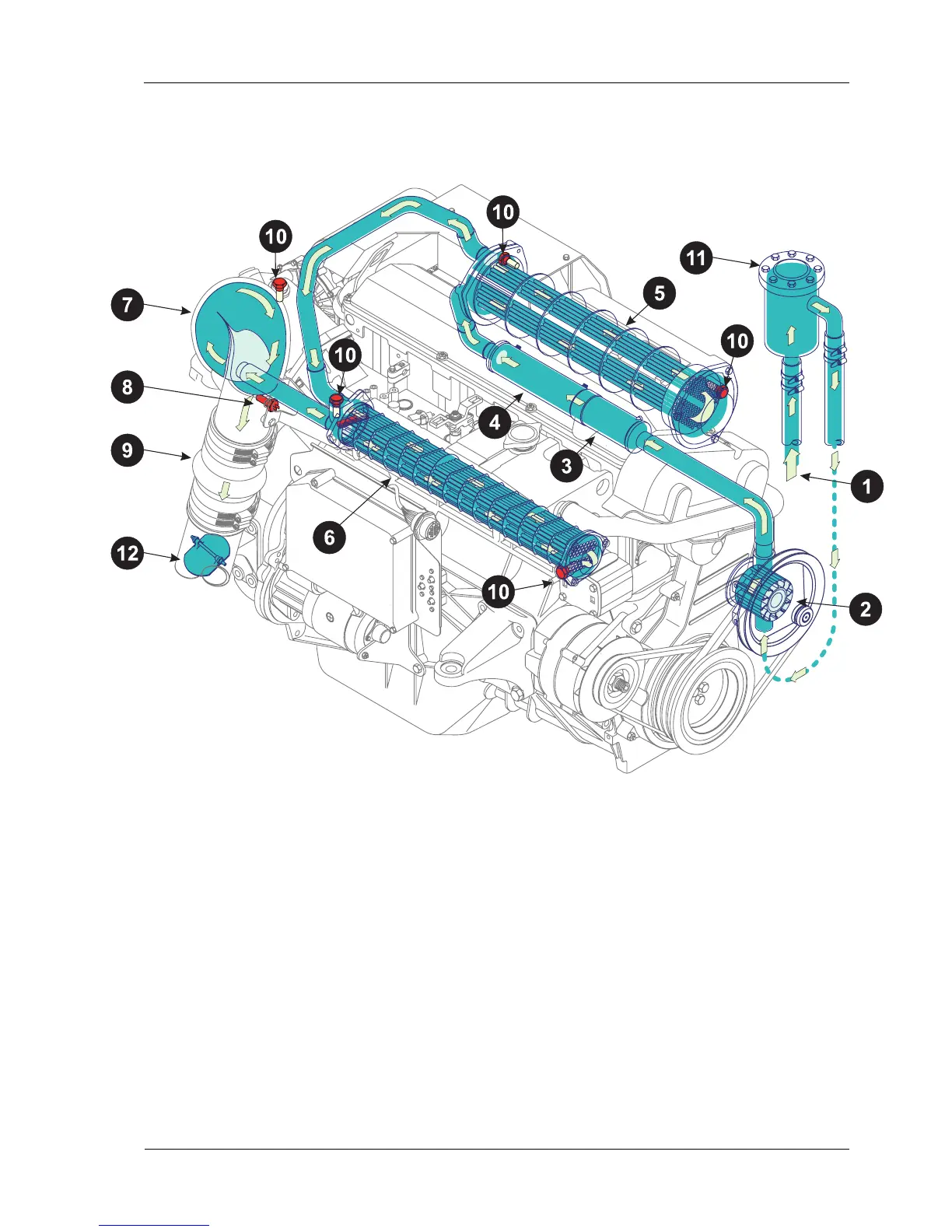

00.01 ill.1
1 Raw water intake
2 Impeller pump
3 Fuel cooler
4 Hydraulic oil- and transmission oil cooler
5 Tube stake - intercooler
6 Tube stake - heat exchanger
7 Hi-riser
8 Sensor exhaust gas temperature
9 Raw water outlet
10 Sacrificial anodes
11 Raw water filter
12 Splash water flap
