Z001019/0_8_Octobre 2011 Page GENERAL-19
GENERAL
SERVICE MANUAL MARINE ENGINES
ToC

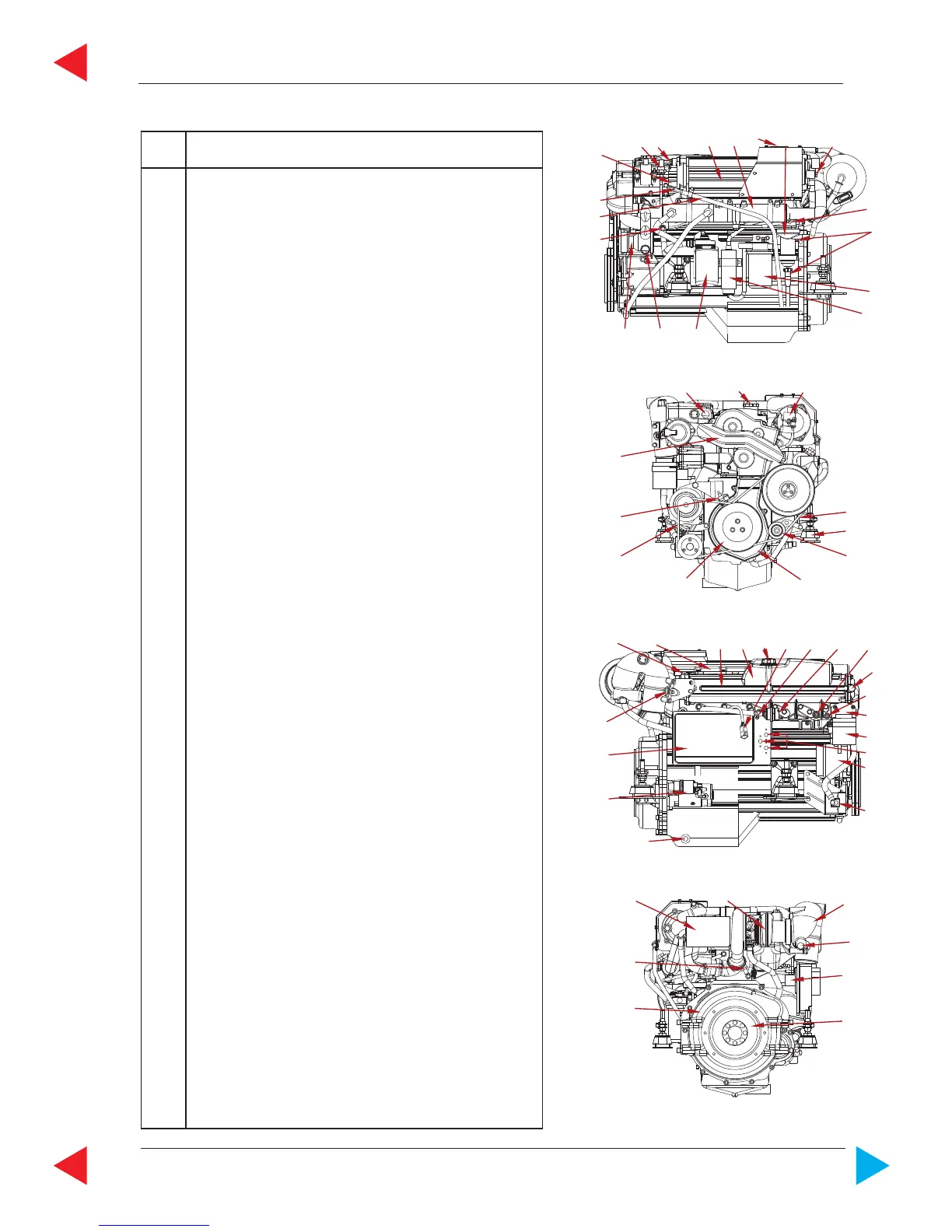

Overview STEYR MO256K43, MO256H45
06028
1423
5 6
2
7
8
9
10
111213
14
15
16
17
06029
18 19 20
21
22
23
2425
26
27
28
06030
2 29 30 31 32 33 34
35 36
2
14
37
38
39
40
41
42
43
44
45
06031
46 47
48
2
49
50
51
52
Item Designation
1 Boost Pressure Sensor
2 Zinc Anode (5 Units)
3 Intercooler
4 Engine Oil / Fuel / Hydr. Oil Cooler
5 Model and Serial Number
6 Oil Seperator
7 Raw Water Drain Plug
8 Valve Crankshaft Housing Ventilation (only
SOLAS)
9 Fuel Filter
10 Fuel Pump
11 Oil Filter
12 Raw Water Inlet Fitting
13 Raw Water Pump
14 Coolant Drain Plug (2 Units)
15 Oil Suction Pipe
16 Oil Dipstick
17 Rack Position Sensor *)
18 Engine Lifting Eye
19 Motor Oil Filler Cap
20 Potentiometer Accelerator
21 Drive Belt, Raw Water Pump
22 Engine Mount
23 Drive Belt Tensioner
24 Cover T-Belt, Lower
25 Vibration Damper
26 Drive Belt, Alternator & Hydr: Pump
27 Speed Sensor
28 Cover T-Belt, Upper
29 Valve Cover
30 Heat Exchanger
31 Coolant Expansion Tank
32 Cooler Cap
33 Diagnostic Outlet
34 Inversion Switch (only for SOLAS)
35 Connector Instrument Panel
36 Coolant Temperature Sensor
37 Thermostat Housing
38 Hydraulic Oil Tank
39 Circuit Breakers
40 Alternator
41 Hydraulic Pump
42 Oil Drain Plug
43 Starter Motor
44 Engine Management System/Fuses
45 Exhaust Temperature Sensor
46 Air Filter
47 Turbo Charger
48 Exhaust Elbow
49 Starter Relais (Backside E-Box Ground Plate)
50 Flywheel
51 Flywheel Housing
52 Oil Pressure Sensor
*) This sensor is magnetism sensitive. All external magnets must be kept away.
