Z001019/0_6_July 2008 Page ELECTRICAL SYSTEM - 79

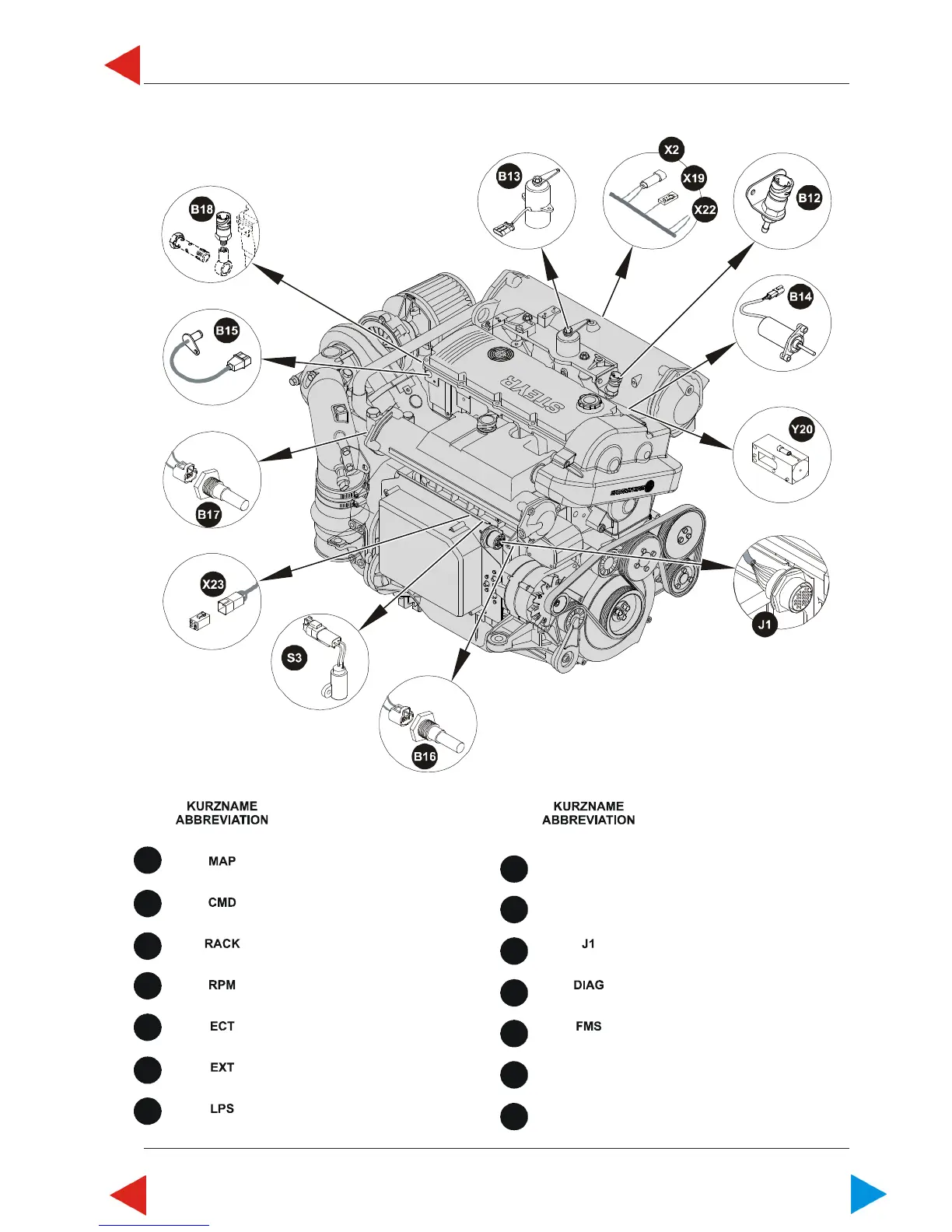

ELECTRICAL SYSTEM
SERVICE MANUAL MARINE ENGINES
B12
B13
B14
B15
B16
B17
B18
X19
X22
J1
X23
Y20
S3
X2
CODE
CODE
BESCHREIBUNG
DESCRIPTION
Ladedrucksensor
Boost-pressure sensor
Gaspedal
Potentiometer accelerator
Regelstangensensor
Rack position sensor
Motordrehzahlsensor
Kühlflüssigkeittemperatursensor
Sensor engine coolant temperature
Abgastemperatursensor
Sensor exhaust gas temperature
Öldrucksensor
Lubricant pressure sensor
Sensor engine speed
BESCHREIBUNG
DESCRIPTION
Stecker Ölmanometer (Option)
Connector oil pressure gauge (optional
)
Stecker Trimmanzeige (Option)
Connector trim (optional)
Haupt-Verbindungsstecker
Main connector
Diagnose - Stecker
Diagnosis - plug
Steuermagnet
Control solenoid
Stecker Getriebeschalter (Option)
Connector gear switch (optional)
Inversionsschalter (nur bei SOLAS)
Inversion switch
(
onl
y
for SOLAS
)
07002
